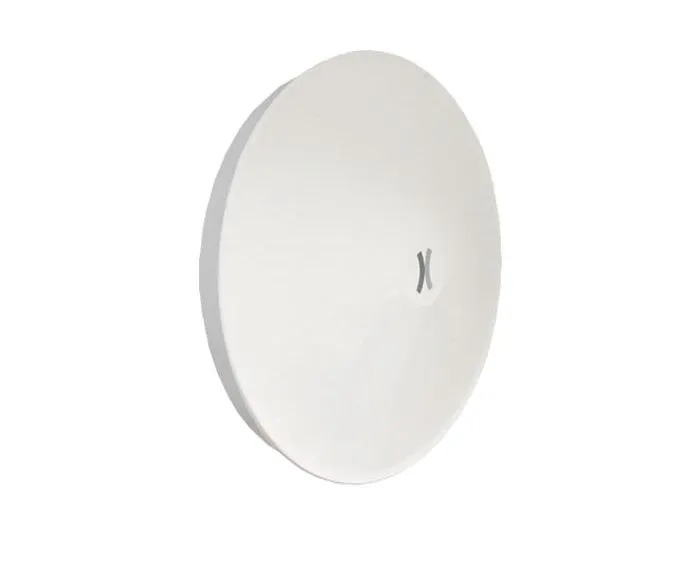

Antenna type

Directional, parabolic, dual-polarized

Frequency range

5.47 – 5.9 GHz

Gain for Vpol

5,5 - 5,8 GHz 28
5,4-5.5 i 5,8-5,9 GHz 27,5
dBi

Gain for Hpol

5,5 - 5,8 GHz 27,8
5,4-5,5 i 5,8-5,9 GHz 27,3 dBi

Polarization

horizontal + vertical

B/f ratio

>40 dB

Cross-pol isolation

>30 dB

Vertical beamwidth

5-6,5 ° dla -3dB

Horizontal beamwidth

5-6,5 ° dla -3dB

VSWR

<1,5 dla 5,0 - 5,9 GHz
<1,9 dla 4,9 - 5,0 i 5,9 - 6,2 GHz

Impedance

50 Ohm

Polar plot

5,4 - 5,7 GHz: < -19 dB
5,7 – 5.9 GHz: < -16dB

Connectors

2 x N/Żeńskie

Wind survivability

56 m/s

Pole/ bracket diameter

26-72 mm

Dimensions

640 x 350 mm

Dish dimensions

ø 600 mm

Box dimensions

70/71/40 cm

Total weight

6230 g

Weight with brackets

3960 g

Weight without brackets

3346 g
