Ubiquiti US-8-150W | Switch | UniFi, 8x RJ45 1000Mb/s PoE, 2x SFP, 150W

CODE: US-8-150W-EU / EAN: 0810354024467

Ubiquiti US-8-150W | Switch | UniFi, 8x RJ45 1000Mb/s PoE, 2x SFP, 150W

CODE: US-8-150W-EU / EAN: 0810354024467
236,42 GBP without VAT (net)
Out of stock
Number of LAN ports: 8x [10/100/1000M (RJ45)] ,  2x SFP (1,25G),
10G support: No
Show more parameters

About product

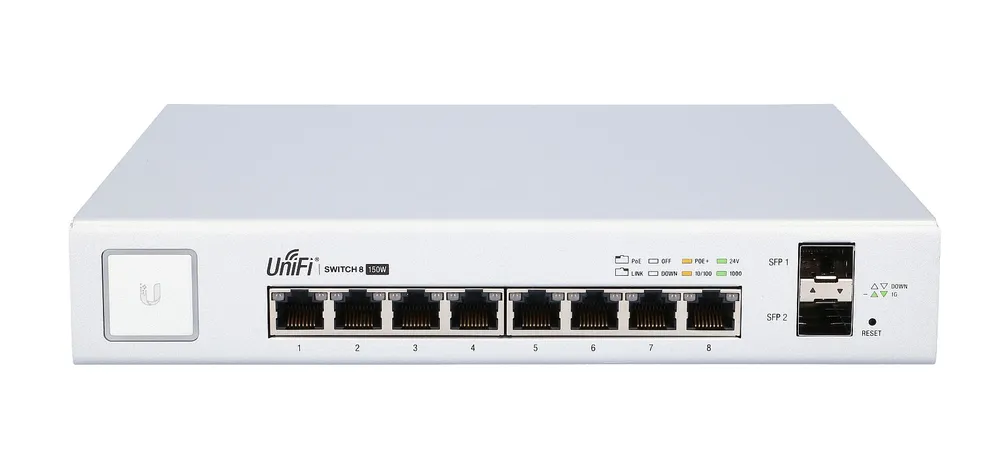

UniFi Switch US-8-150W - Gigabit switch by Ubiquiti

UniFi Switch US-8-150W Ubiquiti is a fully managed gigabit switch that provides quiet and efficient operation with 10 independent switching ports. The switch offers total PoE power of 150W. Eight Gigabit Ethernet ports support PoE+ 802.3af/at or 24V passive PoE and two SFP ports offer optical connectivity.

Special features US-8-150W

  • 8 Gigabit RJ45 ports
  • 2 SFP ports
  • Non-Blocking Throughput: 10 Gbps
  • Switching capacity: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
  • Maximum power consumption: 150W
  • POE+ IEEE 802.3at/af and 24V Passive PoE support
  • Quiet operation (no fan)
  • Can be mounted in rack cabinets (brackets included)

Elegant design and easy management

The compact UniFi switch can be placed on your desk. It integrates with the UniFi controller software for centralized management of UniFi devices.

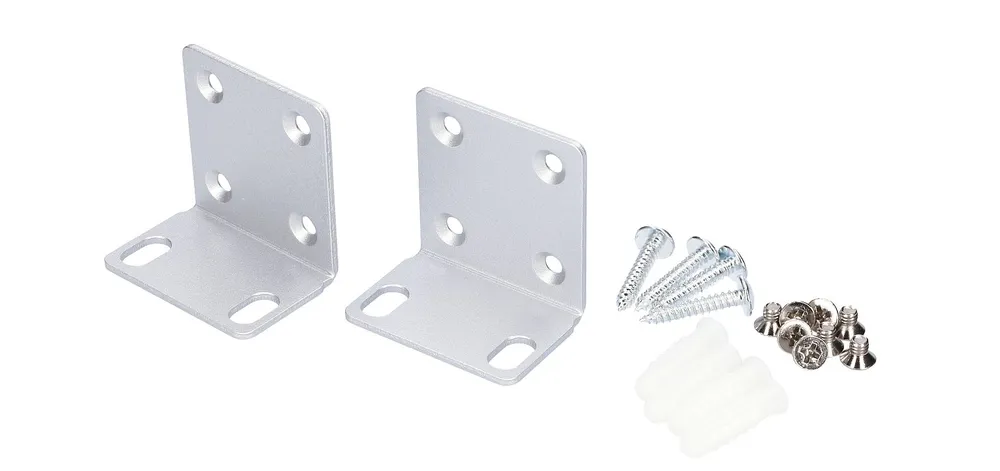

Wall-mounting

The included mounting accessories allow for free mounting on the wall and on a desk/shelf.

Specification

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 8x [10/100/1000M (RJ45)] , 2x SFP (1,25G),
Number of PoE ports 8x [Passive PoE 24V (1G)] , 8x [802.3af/at (1G)] ,
10G support No
AC input frequency 50/60
AC input voltage 100 - 240
Authentication Port-based authentication
Authentication type IEEE 802.1x,RADIUS
Auto MDI/MDI-X Yes
Auto-sensing Yes
Basic switching RJ-45 Ethernet ports quantity 9
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Yes
Built-in processor Yes
Certification ETSI300-019-1.4 CE, FCC, IC
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Depth 204
Ethernet LAN data rates 10,100,1000
Fanless Yes
Flash memory 32
Flow control support Yes
Forwarding rate 14.88
Full duplex Yes
Harmonized System (HS) code 85176990
Height 43
Installed SFP modules quantity 2
Internal memory 256
Jumbo frames 9216
Jumbo frames support Yes
LED indicators Activity, Link, PoE, Speed, Status
Link aggregation Yes
MAC address table 16384
Management CLI - Command Line Interface, Dedicated application,
Memory type DDR3-SDRAM
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs 255
Operating relative humidity (H-H) 5 - 95
Operating temperature (T-T) -5 - 45
Port mirroring Yes
Power (W) 150
Power consumption (max) 150
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 34.2
Power supply included Yes
Processor frequency 400
Processor model ARM Cortex-A9
Product colour Grey
Spanning tree protocol Yes
Switch layer L2
Switch type Managed
Switching capacity 20
Switching layer 2
Type of case Desktop, Metal,
VLAN support Yes
Weight 1.65
Width 235

Specification

Basic technical parameters
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight 1.7 kg (3.75 lb)
Non-blocking throughput 10 Gbps
Switching capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Maximum power consumption With PoE leaving: 150W
No way PoE: 20W
Power supply method 100-240VAC/50-60 Hz
Power supply AC/DC, internal, 150W DC
LEDs for ports RJ45 ports: PoE,Speed/Link/Activity
SFP ports: Speed/Link/Activity
Network Interfaces 8 ports 10/100/1000 Mbps RJ45 Ethernet
2 ports 1 Gbps SFP Ethernet
Management Interface Ethernet In-Band
Certificates CE, FCC, IC
ESD/EMP protection Air: ± 24 kV,
Contact: ± 24 kV
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 5 is 95% non-condensing
Vibration resistance ETSI300-019-1.4 Standard
PoE
PoE interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3.6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ power per PSE port 34.2W
802.3at Voltage range 50–57V
Max power to Passive PoE port 17W
24V Passive PoE voltage range 20-27V

Support

Faq

How many PoE ports does it have?

Number of PoE ports 8x [Passive PoE 24V (1G)] , 8x [802.3af/at (1G)] ,

How is the device managed?

Management: CLI - Command Line Interface, Dedicated application,

What is the maximum power consumption?

Maximum power consumption with PoE output: 150W, no PoE output: 20W
