Huawei OM5052 | SFP Module | GPON C++

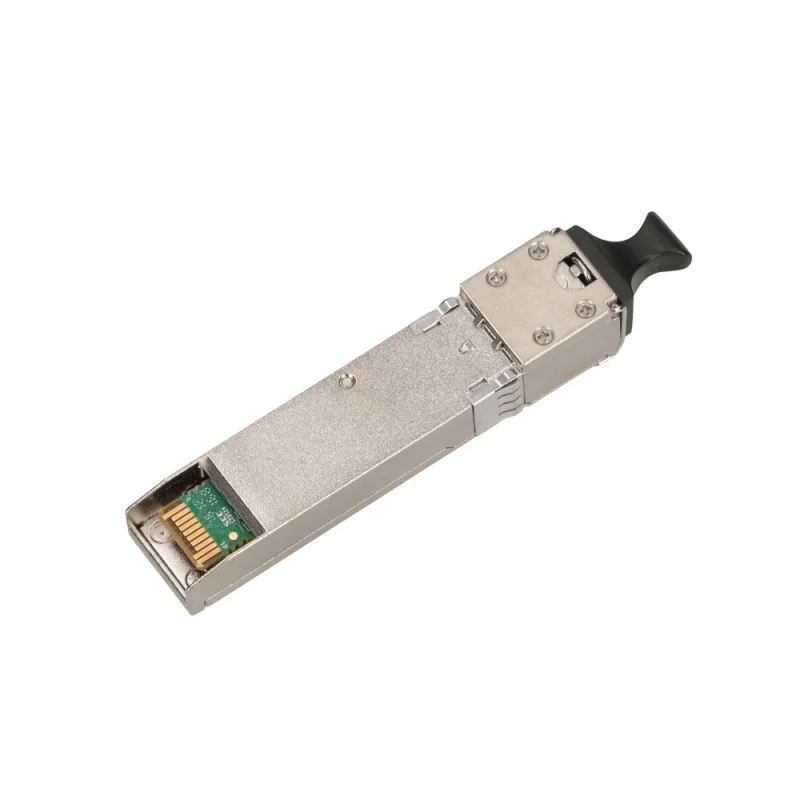

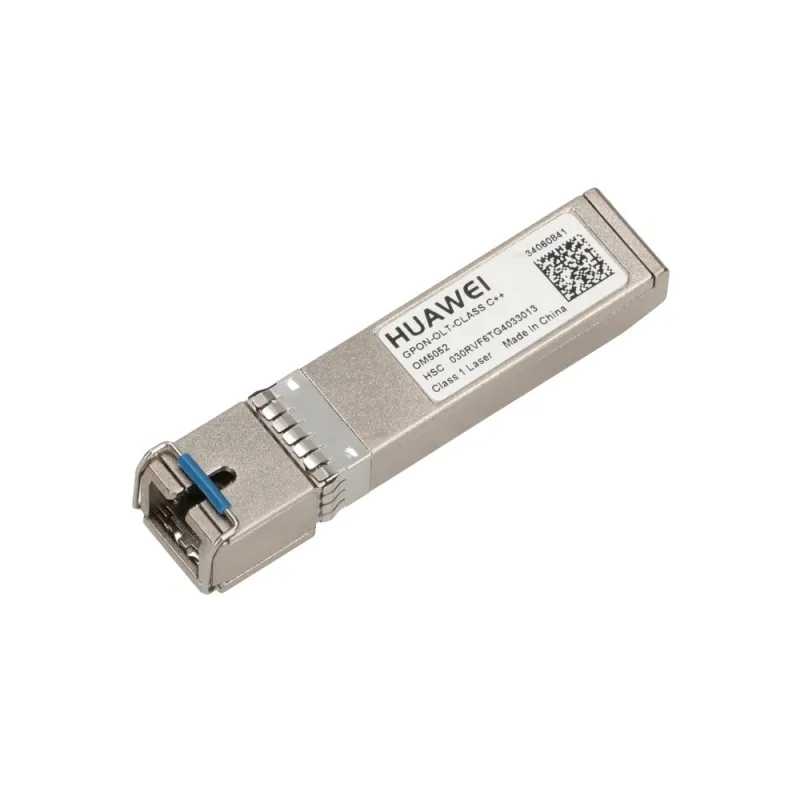

Huawei SFP GPON CLASS C OM5052 Module

Huawei's SFP GPON CLASS C module has a high transmit power level of 6 to 10 dBm and an excellent optical receiver sensitivity of -32 dBm. The module operates over single-mode optical fiber and transmits and receives information at different wavelengths. The module transmits data in the 1490nm band and receives in 1310nm.

Features of the work

During GPON OLT operation, up to 128 user devices (ONTs) can be connected to the module. The data rates are 2.48 Gbps and 1.25 Gbps (Downstream and Upstream). When operating in GEPON OLT - the value will be halved, with 64 subscriber terminals and speeds of 1.25 Gbps and 1.25 Gbps, respectively.

SC/UPC connectors can be used to connect the fiber to the transceiver.
