VOLT SINUS PRO 1000W 12V 20A | Power supply | 1000W

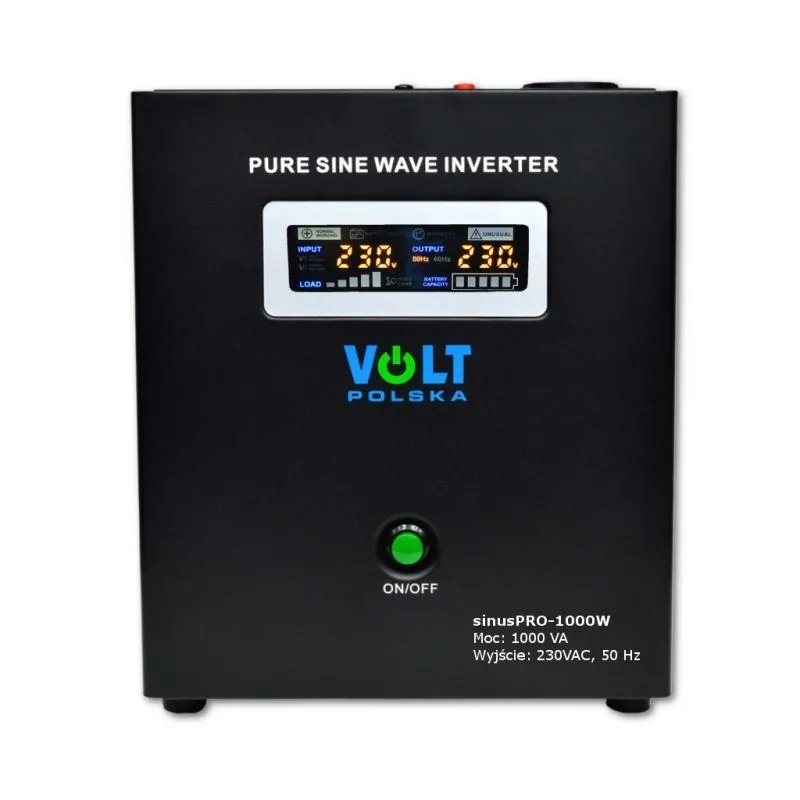

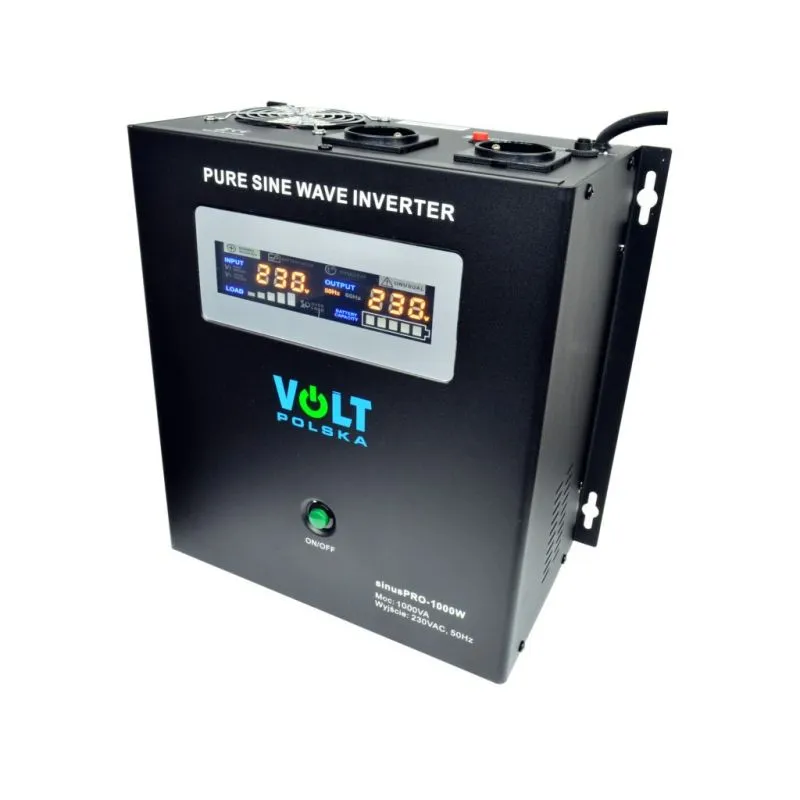

SINUS PRO-1000W 12V emergency power supply unit

VOLT SINUS PRO UPS 1000W is a computer emergency power supply from the SINUS PRO series, the device combines high-performance pure sine wave DC/AC converters. In case of voltage loss from 230V mains or photovoltaic, the device switches to battery mode, which allows for further operation of the system and protection against irretrievable data loss.

The feature that distinguishes sine fault power supplies from cluster simple AC/DC converters is output voltage generation of a pure sine waveform, identical to that in the power network. The device includes DC/AC pure sine wave, UPS emergency switch, mains voltage stabiliser (AVR), battery charger (charger) and the necessary protection for the operation of the device together with the solar controller and photovoltaic. Thanks to the use of a colour display, the device allows you to monitor the most important operating parameters of the system. The power supply is from a series of emergency power supplies type "line-interactive".

Device characteristics

• The functions of DC/AC converter, UPS emergency power supply are included in one device and
  automatic battery charger

• The toroidal transformer used in the inverter provides high efficiency and low idling current.

• The device is much more energy efficient than older constructions using transformers with
  with E-cores

• A fast 32-bit microprocessor ensures accurate and trouble-free operation

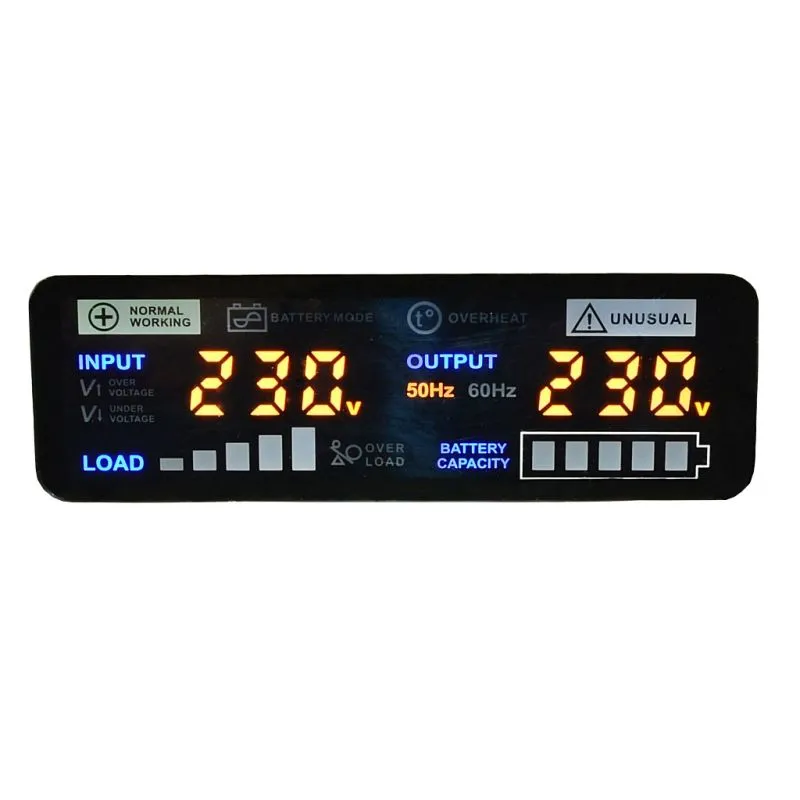

• Intuitive and easy to use thanks to the colour LED display, which informs about the current status
  operation of the device (input and output voltage, battery status, charging, etc.)

• The converter produces pure sine wave voltage at the output, which makes it possible to work with practically
  any kind of load

• High-currentcharge of batteries (exact values in the table with technical specifications)

• Ability to change the charging current with a button and switch off the charger

• Speed switchover from mains to UPS mode for uninterrupted operation
  connected devices

• Intelligent cooling fan control, depending on the actual device temperature and
  operating status of the inverter

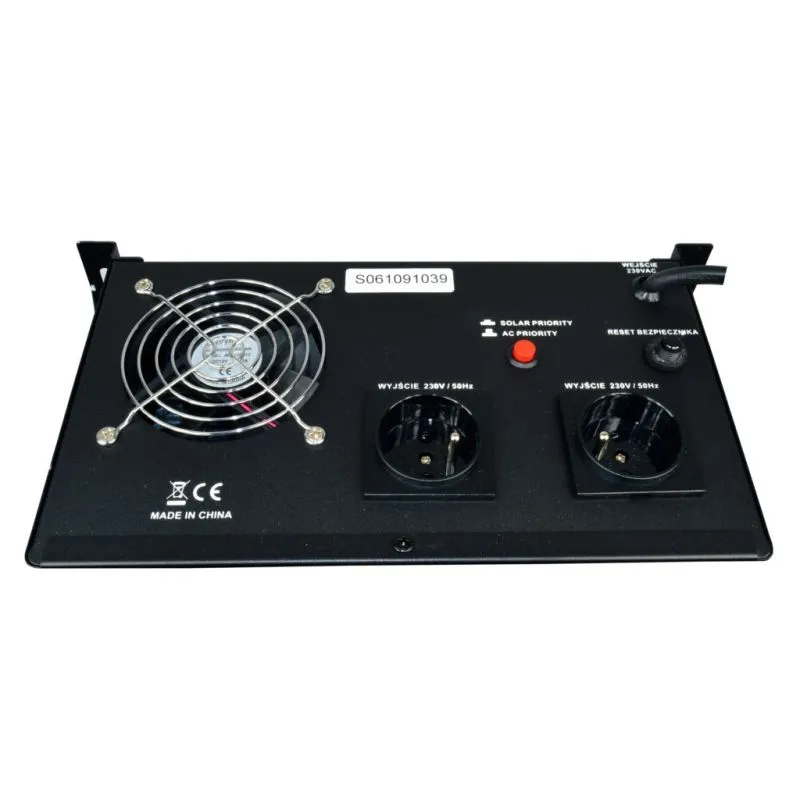

• Ac (mains) / SOLAR (battery)

Display elements and symbols
