Model

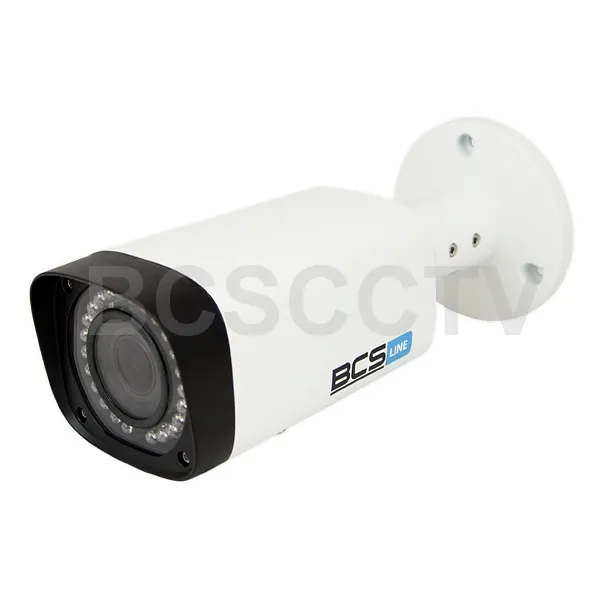

BCS-TIP5200IR-V

Scane System

Progressive scane

Image Sensor

1/2.8” 2Megapixel CMOS

Effective Pixels

1920(H) x 1080(V)

Sensitive

Colour: 0. 2LUX/F1.2,

B/W: 0.01LUX/F1.2; 0Lux/F1.2 (IR On)

S/N

> 50dB (AGC off.)

WB (ATW)

automatic/manual

General features

Lens

2,8-12mm F1.4 auto DC

BLC

Off. – on (BLC)

D-WDR

Off – on (D-WDR)

Snapshot

Auto, Manual (1/50-1/10000),

Protection against fibrillation

AGC

Off – on

NR

2D Off – on operate only with AGC

Additional features

Motion detection

On./Off. (adjust the position, size, sensitivity detection areas)

Reserved area

On./Off. 4 areas

Mirror reflection

On./Off.

Sharpness

On./Off.– smooth regulation

Day/Night

Mechanical IR filter (ICR)

IR LEDs length

20m

Video features

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080) / 720P(1280×720)/ D1(704×576) / CIF(352×288)

Main stream transmission speed

1080P(1920x1080) (25/30fps)/720P(1 ~ 25/30fps)

Under stream transmission speed

D1/CIF(1 ~ 25/30fps)

Throughput

H.264: 32K ~ 8192Kbps,

MJPEG: 32K ~ 12288Kbps

Network features

Connector type

RJ-45 (10/100Base-T)

Protocols

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF

ONVIF Profile S

Mobile Users

iPhone, iPad, Android, Windows Phone

Users

Max 10 logged

Power Supply

12VDC / POE (802.3af)

Power Consumption

10 W with IR On

Working Environment

-20°C ~ +50°C

Weight

1kg

Dimensions LxHxW

213x72x80mm
