Model

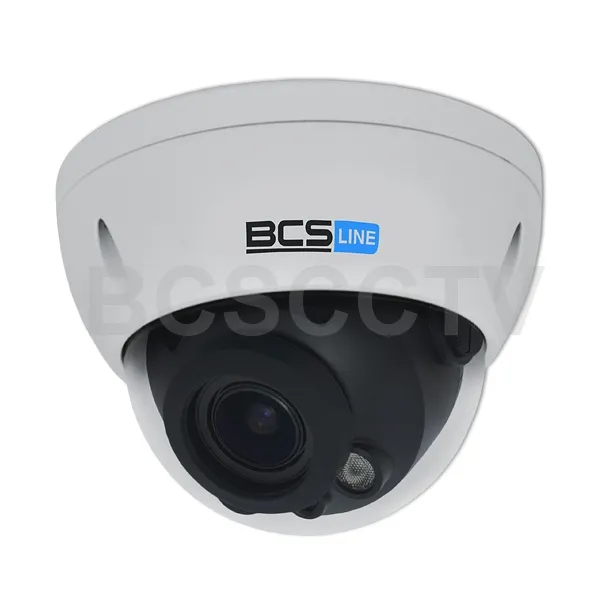

BCS-DMIP3130AIR-V

Scane System

Progressive scane

Image Sensor

1/3” 1.3Megapixel PS CMOS

Effective Pixels

1280(H) x 960(V)

Sensitive

Colour: 0.01LUX/F1.4; 0LUX/F1.2 (IR On)

S/N

> 50dB (AGC off.)

WB (ATW)

automatic/manual

General features

Lens

2,8-12mm F1.4

BLC

Off. – on (BLC)

Snapshot

Auto, Manual (1/50-1/10000),

Protection against fibrillation

AGC

Off – on

NR

3D Off – on operate only with AGC

Additional features

Motion detection

On./Off. (adjust the position, size, sensitivity detection areas)

Reserved area

On./Off. 4 areas

Mirror reflection

On./Off.

Sharpness

On./Off.– smooth regulation

Day/Night

Mechanical ICR filter

IR LEDs length

20m

Video features

Compression

H.264 / MJPEG

Resolution

1.3(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288)

Main stream transmission speed

1.3M(1~25fps) / 720P(1~25/30fps)

Under stream transmission speed

D1/CIF(1 ~ 25/30fps)

Second under stream transmission speed

720P(1~25/30fps) D1/CIF(1 ~ 25/30fps)

Throughput

H.264: 32K ~ 8192Kbps,

MJPEG: 32K ~ 12288Kbps

Network features

Connector type

RJ-45 (10/100Base-T)

Protocols

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF

ONVIF Ver. 2.0 Profile S

Mobile Users

iPhone, iPad, Android, Windows Phone

Users

Max 20 logged

Power Supply

12VDC / POE (802.3af)

Power Consumption

5 W with IR On

Working Environment

-30°C ~ +60°C

Weight

0,5kg

Dimensions DxH

?110x81mm
