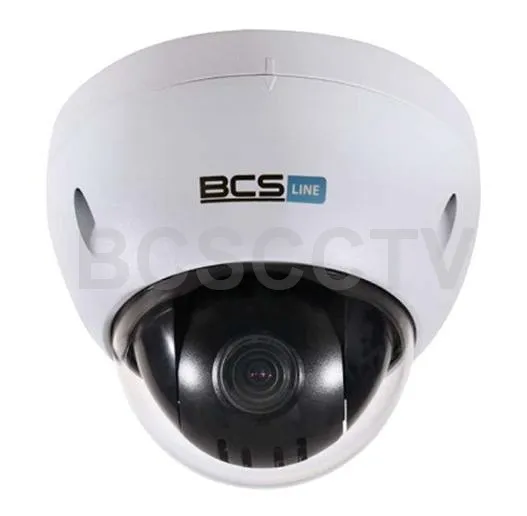

PTZ Camera BCS-SDIP1204-W | Kamera IP | 2 Mpx CMOS, 1080p
Polski (PL) / PLN / Ceny z VAT
PTZ Camera BCS-SDIP1204-W | Kamera IP | 2 Mpx CMOS, 1080p

PTZ Camera BCS-SDIP1204-W | Kamera IP | 2 Mpx CMOS, 1080p

KOD: BCS-SDIP1204-W
984,00  z VAT
BRAK NA MAGAZYNIE
send SPRAWDŹ KOSZT DOSTAWY
sentiment_very_satisfied star_border star_border star_border star_border star_border
Rozdzielczość: Full HD 1080p
Typ kamery: IP
Wielkość matrycy: 2 Mpix
more POKAŻ WIĘCEJ PARAMETRÓW

Features:



Camera & video:
- Converter 1/2,7'' 2Megapixel progressive scan CMOS
- 4x Optic zoom 2.7-11mm
- Digital Wide Dynamic function (D-WDR)
- Compression H.264 & MJPEG
- Dual-stream encoding
- 25fps 2M, 1080P(1920x1080)
- Day/Night(ICR), Auto iris, Auto focus, AWB, BLC, D-WDR
- 24 private areas of any size
- Build-in WEB Server
- Comply with NVR, CMS (PSS/DSS) & DMSS
- Built-in 2 alarm input and 1 alarm output
- Built-in audio output
- Build-in Micro SD socket for cards up to 128GB



Head:
- Max. rotation speed 100deg/sec, 0-360deg. rotation, 0-90deg. auto flip 190deg.
- Up to 300 presents, 5 routes, 8 tours
- Automatic recognition of main protocols like DH-SD, Pelco-P/D
- Setup speed from 1 to 8
- Automatic activation after restart
- Calling Presets/Tours and other operations after a predetermined time
- Intelligent 3D position control
- Ceiling outer enclosure
- Easy installation



Specifications:



Model

BCS-SDIP1204-W

Scane System

Progressive scane

Image Sensor

1/2.7” CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

Sensitive

Colour: 0.05Lux/F1.6;

B/W: 0.005Lux/F1.6;

S/N

> 50dB (AGC off.)

WB (ATW)

automatic/manual

General features

Lens

2,7~11mm, F1.6~F2.8

BLC

Off. – on (BLC/HLC/D-WDR)

Viewing angle

H: 93.5°~30.24°

Optical zoom

X4

Snapshot

Auto, Manual 1/1~1/30000s,

Protection against fibrillation

AGC

Off – on

NR

2D/ 3D Off – on operate only with AGC

Additional features

Motion detection

On./Off. (adjust the position, size, sensitivity detection areas)

Reserved area

On./Off. 24 areas

Mirror reflection

On./Off.

Sharpness

On./Off.– smooth regulation

Day/Night

Mechanical IR filter (ICR)

Head features

Pan Tilt

Horizontal range

0°-360° without point limit

Vertical range

0°-90°; flip 180°

Rotation speed

Horizontal speed

0,1°-100°/sec

Vertical speed

0,1°-60°/sec

Preset speed

Horizontal speed

100°

Vertical speed

60°

Automatic functions

Presets 300/ 5 Route/ 8 Turns/ 5 Skans

Automatic

Calling automatic function in idle

Alarm I/O

2 input / 1 output

Video features

Compression

H.264 / MJPEG

Resolution

1080P(1920x1080) / 720P(1280x720) / D1(704x576/ 704x480) / CIF(352x288/ 352x240)

Main stream transmission speed

1080P / 720P(1~25/30fps)

Under stream transmission speed

D1/CIF(1 ~ 25/30fps)

Throughput

H.264: 32K ~ 8192Kbps,

MJPEG: 56K ~ 20480Kbps

Audio features

Compression

G.711a / G.711u(32kbps) / PCM (128kbps)

Canals

1 output canals

Network features

Connector type

RJ-45 (10/100Base-T)

Protocols

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF

ONVIF Profile S

Mobile Users

iPhone, iPad, Android, Windows Phone

Users

Max 20 logged

Memory card socket

Micro SD up to 128GB

Power Supply

12VDC / POE (802.3af)

Power Consumption

10W

Working Environment

-30°C ~ +60°C, IP66

Weight

0,6kg

Dimensions DxH

O122x89mm
