1. General Description:

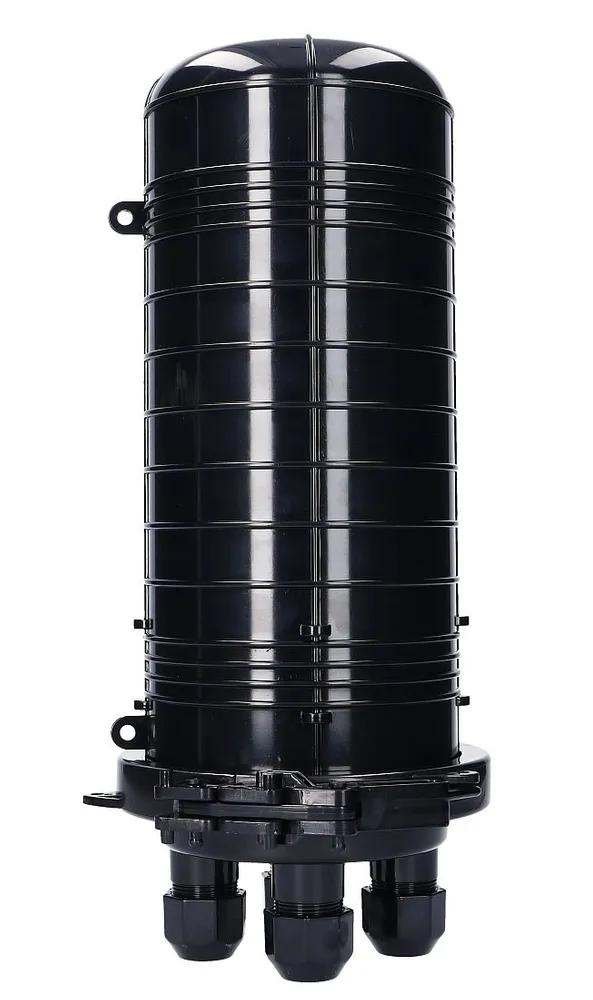

Fiber optic splice case can be used in outside plant, underground, aerial, pedestal and direct buried applications. The device allows for direct jointing and bifurcated jointing. It also protects fiber optic splices from the elements while providing fast and easy no-cost re-entry.
1). Can be used in stranght-through and branch application for cables of bunchy fiber and ribbon fiber.
2). Suitable for aerial duct wall-mounted or buried applications.
3). Mechanical seal and convenient to reopen.

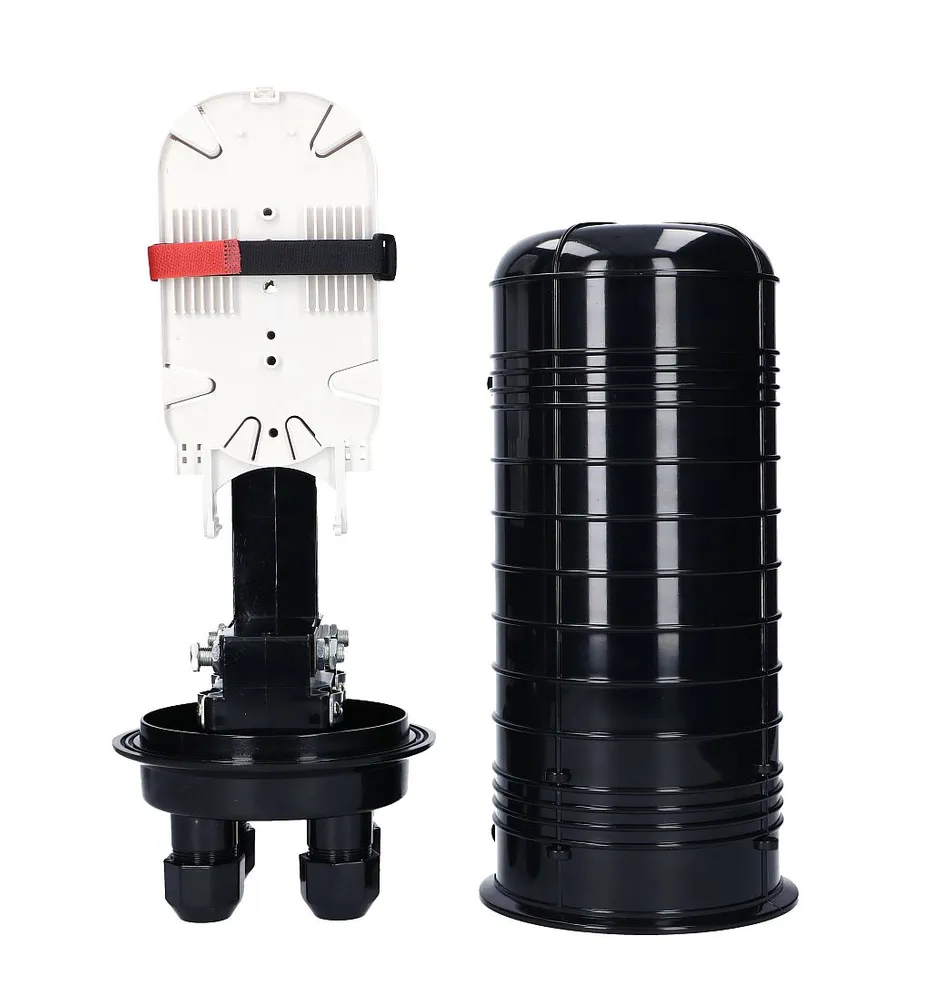

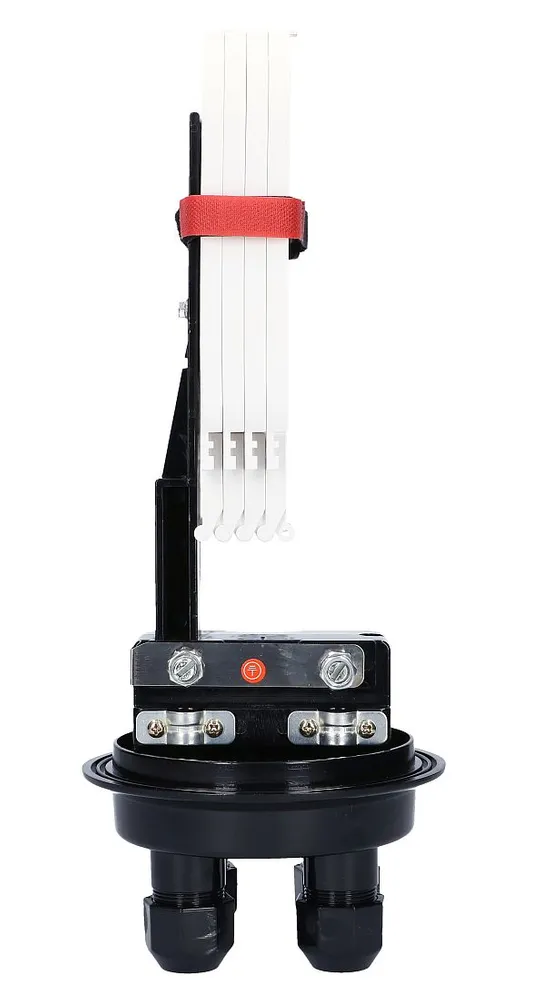

4).Slide and lock fiber optic splice tray with its opening angel above 90 degree,trays can be increased and reduced according to the application.
5). Perfect performance in sealing.
3. Product Specifications

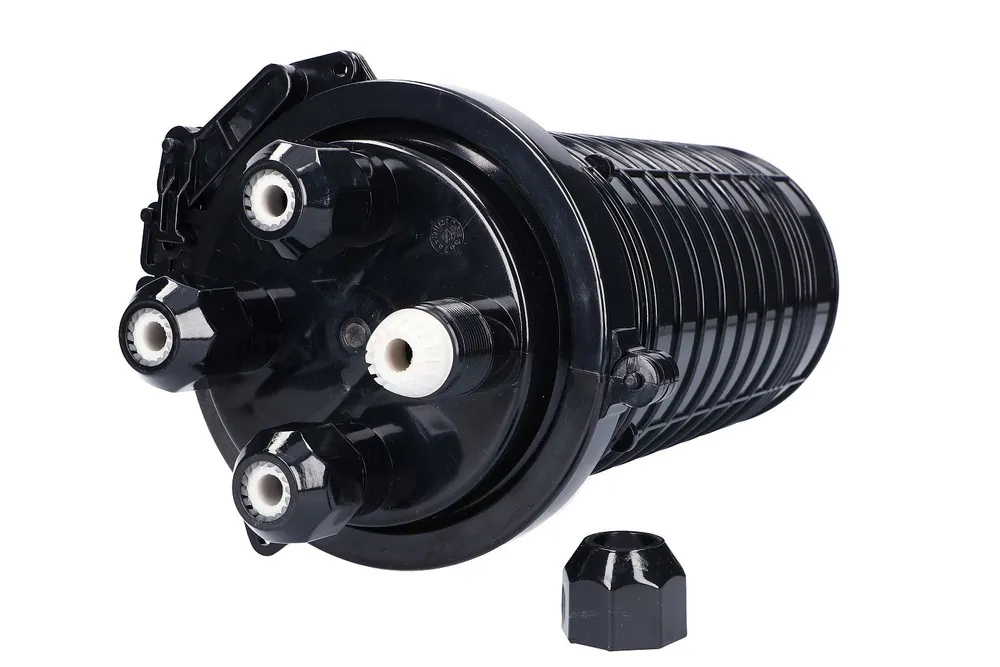

No. of Cable Inlet/Outlet: four
Number of Fibers per Tray: Two Inlets, Two Outlets
Max. Number of Trays: 7
Max. Number of Fibers: 72(If overlap the splice sleeve, can be used as 144 core.)
