LigoWave APC 5M-12 | CPE | 5GHz 2x2 MIMO, 1x RJ45 100Mb/s, 12dB
LigoWave APC 5M-12 | CPE | 5GHz 2x2 MIMO, 1x RJ45 100Mb/s, 12dBi

LigoWave APC 5M-12 | CPE | 5GHz 2x2 MIMO, 1x RJ45 100Mb/s, 12dBi

KOD: LIGOWAVE APC 5M-12
344,92
BRAK NA MAGAZYNIE
send SPRAWDŹ KOSZT DOSTAWY
sentiment_very_satisfied star_border star_border star_border star_border star_border
Częstotliwość pracy: 5 GHz
Ilość portów LAN: 1x [10/100M (RJ45)]
Standard sieci LAN: Fast Ethernet 10/100Mb/s
Standardy sieci bezprzewodowej: IEEE 802.11nIEEE 802.11a
more POKAŻ WIĘCEJ PARAMETRÓW

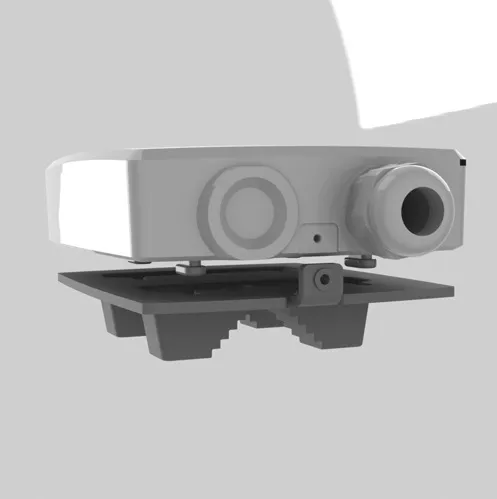

APC 5M-12

The APC 5M-12 delivers the highest performance and stabil- ity available in the 5 GHz CPE class. This product combines a robust IP-65 compliant enclosure with a highly advanced 802.11n radio core containing MIMO 2x2 technology along with an inte- grated mid-gain dual polarization directional antenna. The device is powered by a reliable, advanced, and feature-rich operating system, allowing the creation of very high throughput and stable wireless networks quickly, safely, and effectively. In addition, the APC 5M-12 supports access point operating mode which extends application scenarios and makes the APC 5M-12 suited for both point to point and point to multipoint networks.

Specifications:

Wireless

WLAN standard

IEEE 802.11 a/n, iPoll (proprietary)

Radio mode

MIMO 2x2

Operating modes

Access point (auto WDS), Station, Station WDS, iPoll Access Point, iPoll Station

Radio frequency band

5.1 - 5.9 GHz (country dependent - FCC 5.745 to 5.825 GHz)

Transmit power

Up to 29 dBm (country dependent)

Receive sensitivity

Varying between -95 and -75 dBm depending on modulation

Channel size

20, 40 MHz

Modulation schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

Data rates

802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Error correction

FEC, Selective ARQ

Duplexing scheme

Time division duplex

Antenna

Type

Integrated directional dual-polarized panel

Gain

12 dBi

Wired

Interface

10/100 Base-T, RJ45

Networking

Operating modes

Bridge, Router

WAN

Static IP, DHCP client, PPPoE client

NAT

Routing w/ or w/o NAT

Static routing

Supported

DHCP

Client, Server, Relay

Port forwarding

Supported

VLAN

Supported for management and data

Softwave

General

Ability to define/limit frequency, channel width, EIRP, modulation

Advanced wireless functionality

ATPC (automatic transmit power control), DFS 3, auto-channel, auto-modulation,

Operating mode

Router, Bridge

Wireless operating modes

AP auto WDS, Station, Station WDS, Virtual radios (VSSID), iPoll access point, iPoll client

Wireless security

WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, User isolation, UAM (web portal authentication)

Wireless QoS

WMM

WAN protocols

Static IP, DHCP client, PPPoE client

Network

NAT, static routing, firewall, port forwarding, VLAN, traffic shaping

Services

DHCP server, SNMP server, NTP client, Alerts, Remote syslog, Wireless and Ethernet statistics, bandwidth limiting

Tools

Site survey, Link test, Antenna alignment, Ping, Traceroute, Spectrum analyzer, delayed reboot

Management

HTTP(S) GUI, SSH CLI, SNMP read, WNMS, troubleshooting file, reset via ICMP

Physical

Dimensions

Length 150 mm (5.9 ‘’), width 115 mm (4.5 ‘’), height 55 mm (2.1 ‘’)

Weight

400 g (16.2 oz)

Power supply

12 - 48 V DC passive PoE

Power source

100 – 240 VAC via included adapter

Power consumption

6.5 W

Environmental

Operating temperature

-40°C (-22 F) ~ +65°C (+149 F)

Humidity

0 ~ 90 % (non-condensing)

Management

System configuration

User-friendly web GUI, Command line via SSH, centralized Wireless Network

Management System, reset via reset tool

System monitoring

SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certification

FCC/CE/Safety/RoHS compliance
