LigoWave Ligo DLB 2-14 | CPE | 2GHz 2x2 MIMO, 1x RJ45 100Mb/s,
Polski (PL) / PLN / Ceny z VAT
LigoWave Ligo DLB 2-14 | CPE | 2GHz 2x2 MIMO, 1x RJ45 100Mb/s, 14dBi

LigoWave Ligo DLB 2-14 | CPE | 2GHz 2x2 MIMO, 1x RJ45 100Mb/s, 14dBi

KOD: LIGOWAVE LIGO DLB 2-14
459,71  z VAT
BRAK NA MAGAZYNIE
send SPRAWDŹ KOSZT DOSTAWY
sentiment_very_satisfied star_border star_border star_border star_border star_border

LigoWave’s DLB 2-14 delivers  the highest performance and stability available  in the 2.4 GHz CPE class. This product combines a highly advanced radio core containing MIMO 2x2 technology with an integrated, high-gain, dual polarization directional antenna.  The feature-rich operating system  is optimized for ultra-high performance wireless communications while optionally allowing compatibility with older  802.11 b/g standards devices.



The smart dynamic  polling  based protocol (iPoll 2) ensures reliable communication even in congested areas  with 64 client devices connected to a base-station.



The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 2-14 was designed and tested to meet an IP-66 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges.



Specifications:

Wireless

WLAN standard

IEEE 802.11 b/g/n, iPoll (proprietary)

Radio mode

MIMO 2x2

Radio frequency band

2.412 - 2.462 GHz (FCC 2.412 - 2.462 GHz)

Transmit power

Up to 31 dBm (country dependent)

Receive sensitivity

Varying between -96 and -74 dBm depending on modulation

Channel size

5,10, 20, 40 MHz

Modulation schemes

802.11 g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

802.11 b: DSS (CCK, DQPSK, DBPSK)

Data rates

802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

802.11 b: 11, 5.5, 2, 1 Mbps

Error correction

FEC, Selective ARQ

Duplexing scheme

Time division duplex

Antenna

Type

Integrated directional dual-polarized panel

Gain

14 dBi

Wired

Interface

10/100 Base-T, RJ45

Software

Wireless operating modes

Access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), station (ARP NAT)

Wireless techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on iPoll 2

Network operating modes

Bridge, router iPv4, router IPv6

Network techniques

Routing with and without NAT, VLAN

WAN protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet

Tools

Site survey, link test, antenna alignment

Physical

Dimensions

Length 205 mm (8‘’), width 205 mm (8 ‘’), height 45 mm (1.7‘’)

Weight

Unit: 700 g (24.7 oz)

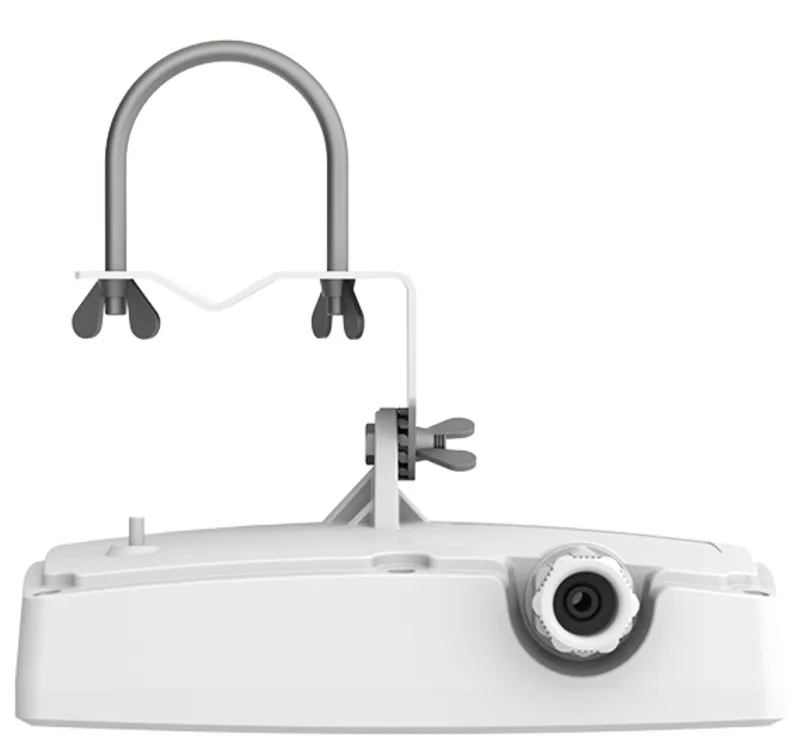

Mounting

Combination wall/ pole mount included

Power

Power supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power source

100 240 VAC

Power consumption (max)

4.5 W

Environmental

Operating temperature

-40°C (-40 F) ~ +65°C (+149 F)

Humidity

0 ~ 90 % (non-condensing)

Management

System monitoring

SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certification

FCC/IC/CE



LigoWave PTP distance approximations:

Distance

Products

0.5 km

1 km

2 km

3 km

5 km

10 km

25 km

50 km

LigoDLB 2-14

144

139,5

135

111,6

81,9

20,7

NA

NA
