LigoWave Ligo DLB 5-90 | CPE | 5GHz 2x2 MIMO, 1x RJ45 100Mb/s, 18dBi

LigoWave Ligo DLB 5-90 | CPE | 5GHz 2x2 MIMO, 1x RJ45 100Mb/s, 18dBi

KOD: LIGOWAVE LIGO DLB 5-90
662,86  z VAT
BRAK NA MAGAZYNIE
send SPRAWDŹ KOSZT DOSTAWY
sentiment_very_satisfied star_border star_border star_border star_border star_border

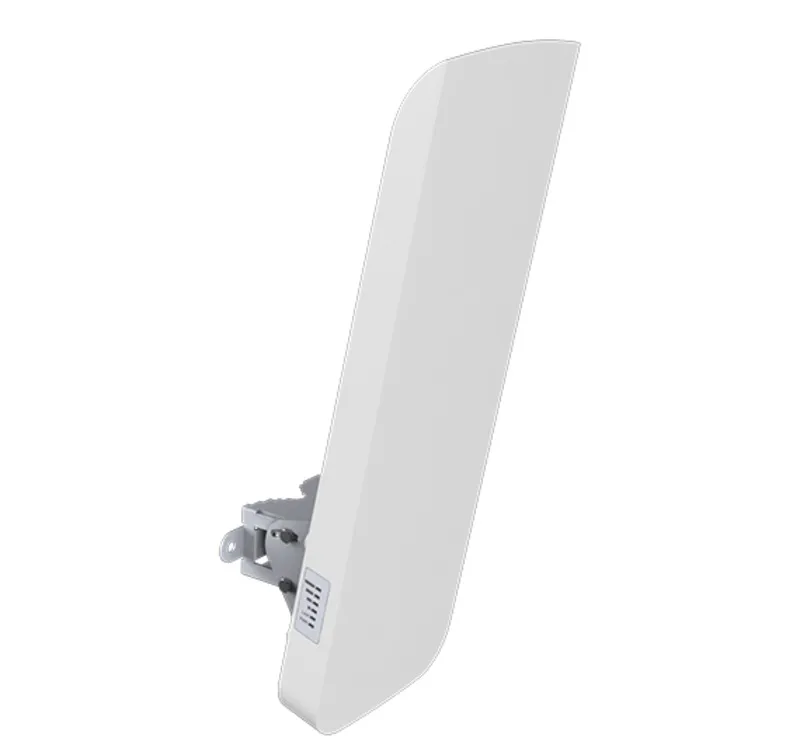

LigoWave’s DLB 5-90 delivers the highest performance and stability available in the 5 GHz Bast Station class. This product combines a highly advanced radio core containing MIMO 2x2 technology with an integrated, high-gain, dual polarization directional antenna. The feature-rich operating system is optimized for ultra-high performance wireless communications while optionally allowing compatibility with older 802.11a standard devices.



The smart dynamic polling based protocol (iPoll 2) ensures reliable communication even in congested areas with 64 client devices connected to a base-station.



The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 5-90 was designed and tested to meet an IP-65 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges. The mounting bracket permits installation on a wall or a pole and provides up to 30 degrees of down-tilt adjustment.



Specifications:

Wireless

WLAN standard

IEEE 802.11 a/n, iPoll (proprietary)

Radio mode

MIMO 2x2

Radio frequency band

5.150 - 5.850 GHz (FCC 5.745 - 5.825 GHz)

Transmit power

Up to 29 dBm (country dependent)

Receive sensitivity

Varying between -97 and -75 dBm depending on modulation

Channel size

5,10, 20, 40 MHz

Modulation schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

Data rates

802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Error correction

FEC, Selective ARQ

Duplexing scheme

Time division duplex

Antenna

Type

Integrated dual-polarized 90 degree sector antenna

Gain

18 dBi

Wired

Interface

10/100 Base-T, RJ45

Software

Wireless operating modes

Access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), station (ARP NAT)

Wireless techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on iPoll 2

Network operating modes

Bridge, router iPv4, router IPv6

Network techniques

Routing with and without NAT, VLAN

WAN protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet

Tools

Site survey, link test, antenna alignment

Physical

Dimensions

Length 430 mm (16.9‘’), width 150 mm (5.9‘’), height 40 mm (1.6‘’)

Weight

1000 g (2.2 lb)

Mounting

Combination wall/ pole mount included

Power

Power supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power source

100 240 VAC

Power consumption (max)

4.5 W

Environmental

Operating temperature

-40°C (-40 F) ~ +65°C (+149 F)

Humidity

0 ~ 90 % (non-condensing)

Management

System monitoring

SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certification

FCC/IC/CE



LigoWave PTMP distance approximations

Distance

Base Station

CPE

0.5 km

1 km

2 km

5 km

10 km

CPE=10

CPE=20

CPE=40

CPE=10

CPE=20

CPE=40

CPE=10

CPE=20

CPE=40

CPE=10

CPE=20

CPE=40

CPE=10

CPE=20

CPE=40

Ligo DLB 5-90

LigoDLB 5-15

153

144

126

153

144

126

153

144

117

130,5

121,5

99

NA

NA

NA

LigoDLB 5-20

153

144

126

153

144

126

153

144

126

135

126

117

108

103,5

81

LigoDLB Propeller5

153

144

126

153

144

126

148,5

139,5

108

108

112,5

81

NA

NA

NA

LigoDLB Echo5

153

144

126

153

144

126

153

144

117

130,5

121,5

99

NA

NA

NA

LigoDLB Echo5D

153

144

126

153

144

126

153

144

126

144

126

117

135

126

90



LigoWave PTP distance approximations:



Distance

Products

0.5 km

1 km

2 km

3 km

5 km

10 km

25 km

50 km

LigoDLB 5-90

153

144

118,8

81

59,4

NA

NA

NA
