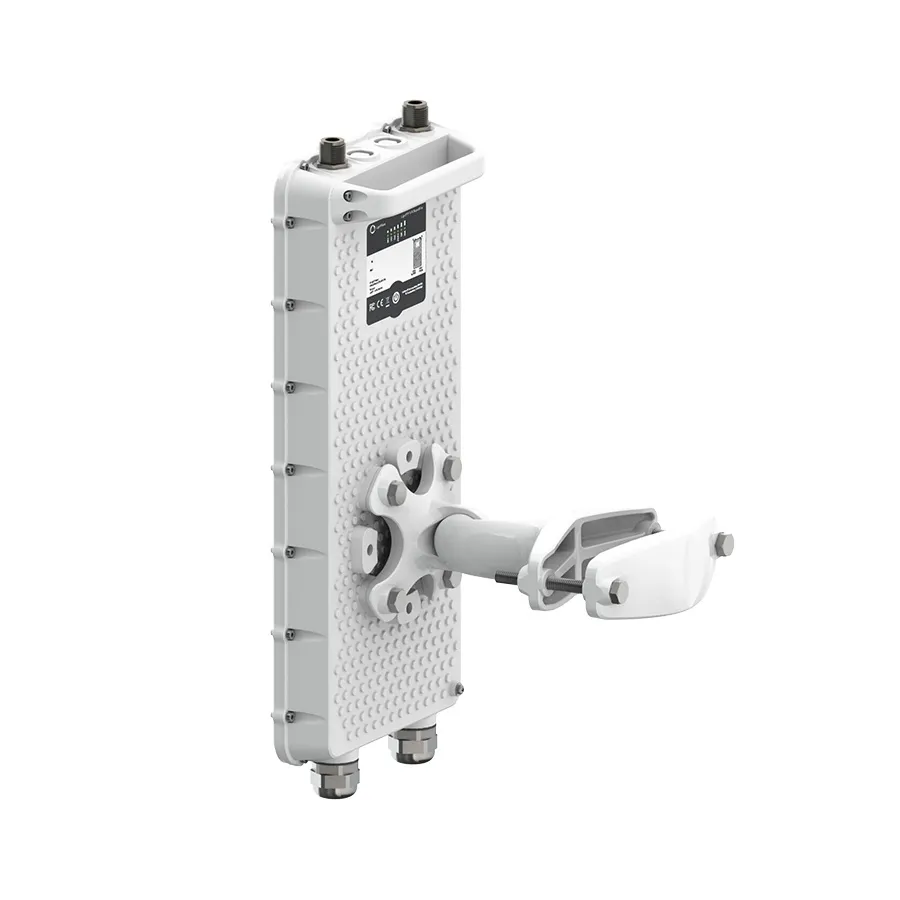

LigoWave Ligo PTP RapidFire 5-N | CPE | 5GHz 2x2 MIMO, 2x RJ45
LigoWave Ligo PTP RapidFire 5-N | CPE | 5GHz 2x2 MIMO, 2x RJ45 1000Mb/s

LigoWave Ligo PTP RapidFire 5-N | CPE | 5GHz 2x2 MIMO, 2x RJ45 1000Mb/s

KOD: LIGOWAVE PTP RAPIDFIRE 5-N
3988,20
BRAK NA MAGAZYNIE
send SPRAWDŹ KOSZT DOSTAWY
sentiment_very_satisfied star_border star_border star_border star_border star_border
Częstotliwość pracy: 5 GHz
Ilość portów LAN: 2x [10/100/1000M (RJ45)]
Rodzaj zasilania urządzenia: PoE 802.3af/at
more POKAŻ WIĘCEJ PARAMETRÓW

RapidFire delivers an extremely high 700 Mbps throughput via its unique and powerful RF design that supports up to 256QAM modulation and 31 dBi output power. Our proprietary W-Jet V protocol, specifically engineered for high performing PTP scenarios, minimizes interferences even across long distances and stabilizes latency within 2-4 ms.

Professional design

In addition to achieving maximum performance, LigoWave focuses on delivering flexibility and ease-of-use in our RapidFire series. The robust mounting bracket enables rapid deployment of the links and ensures survivability during high wind-load. The integrated antenna possesses a 45° rotation option which increases installation flexibility; especially advantageous in noisy spectrum areas. A GORE© membrane vent allows fast pressure equalization of the IP-67 rated cast aluminum enclosure to prevent condensation and to ensure seal performance . A detachable handle eases

transporting the devices up towers and over rough terrains. Newly designed RGB LEDs indicate different device statuses and signal levels (in 1dBm steps) when aligning the antenna.

Wireless configuration interface

An internal 2.4 GHz radio allows access into the Rapidfire GUI by wireless connection with any WIFI equipped device. This feature expedites the installation of links and alleviates the problem of troubleshooting in difficult-to-reach locations. Tests prove accessibility even when mounted on top of a 10-story building while standing 20 meters (65 ft) away!

LigoPTP 5-N RapidFire

Radio

Wireless protocol

W-Jet V

Radio mode

MIMO 2x2

Frequency range

4.900 - 6.100 GHz (FCC: 4.940 - 4.990 GHz,

5.150-5.250 GHz, 5.725-5.850 GHz)

Channel size

5, 10, 20, 40, 80 MHz

Modulation schemes

OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Data rates @ 80 MHz

866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Duplexing scheme

TDD

Error correction

BCC, LDPC

Antenna

LigoPTP 5-N RapidFire

2 N-type connectors

Wired

First Interface

10/100/1000 Base-T with PoE IN (RJ45)

Second Interface

10/100/1000 Base-T with PoE OUT (RJ45)

Physical

Dimensions without mount:

Length 399 mm (15.7‘’), width 174 mm (6.8‘’), height 47 mm (1.8‘’)

Mount length till pole

124 mm (4.8‘’)

Weight including mount:

2.9 kg (6.3 lb)

Power

Power input method, voltage

PoE 802.3at, isolated 42 - 57 VDC

Power consumption (max)

8.6 W

Power output method, voltage

PoE 802.3af, 48 VDC, 12.95W maximum

PoE inserter and AC/DC adapter are included

Environmental

Operating temperature

-40°C (-40 F) ~ +65°C (+149 F)

Humidity

0 ~ 90 % (non-condensing)

Management

Dedicated 2.4 GHz radio for management

System monitoring

SNMP, GUI/HTTP(S), Shell/SSH and WNMS

System configuration

GUI/HTTP(S) and WNMS

Regulatory

Certification

FCC/IC/CE
