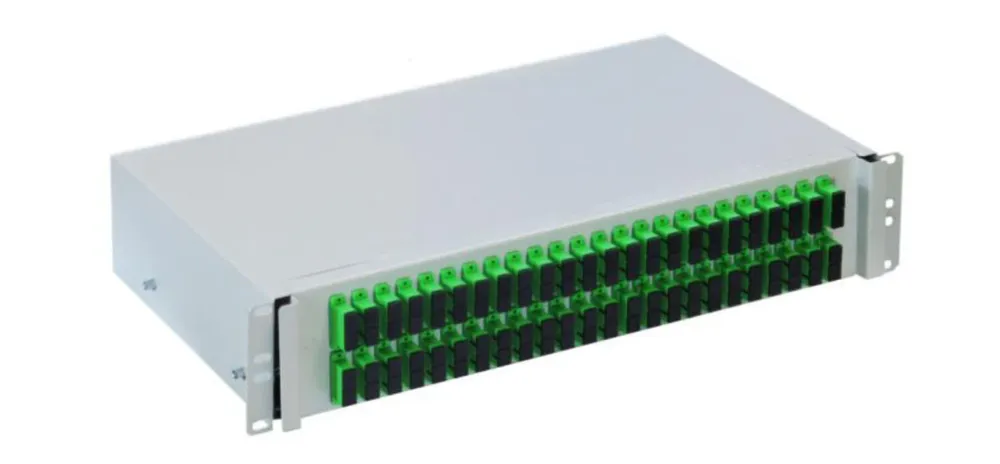

Mantar PS 19" 2U SC 48 Simplex Slide | Przełącznica światłowodowa | wysuwana, głębokość 255 mm
KOD: PS 19'' 2U SIMPLEX SLIDE-OUT
Kontakt
Konto
Ulubione
Koszyk
Features:
- Designed for mounting on rack handles 19”
- Equipped with a sliding and removable drawer witch allows easy acces to inside
- Possibility of mounting trays splices
- It has ribbing for mounting clamps fiber optic ordering
- Included four cable glands PG 13.5 (2 opened and 2 closed)
- Optical fiber terminal box made of sheet metal 1 mm thick
- Powder coated, color: RAL7035- light grey, coarse structure
Dimensions:
Cabinet name | External dimensions (mm) | Number and type of holes for fiber optic adapters | ||
height | width | depth | ||
PS 19” 1U Simplex Slide-out | 44 | 480 | 215 | 12 or 24 holes SC Simplex |
PS 19” 1U Duplex Slide-out | 44 | 480 | 215 | 12 or 24 holes SC Duplex |
PS 19” 2U Simplex Slide-out | 88 | 480 | 255 | 24 holes SC Simplex |
PS 19” 4U Simplex Slide-out | 175 | 480 | 255 | 144 holes SC Simplex |
