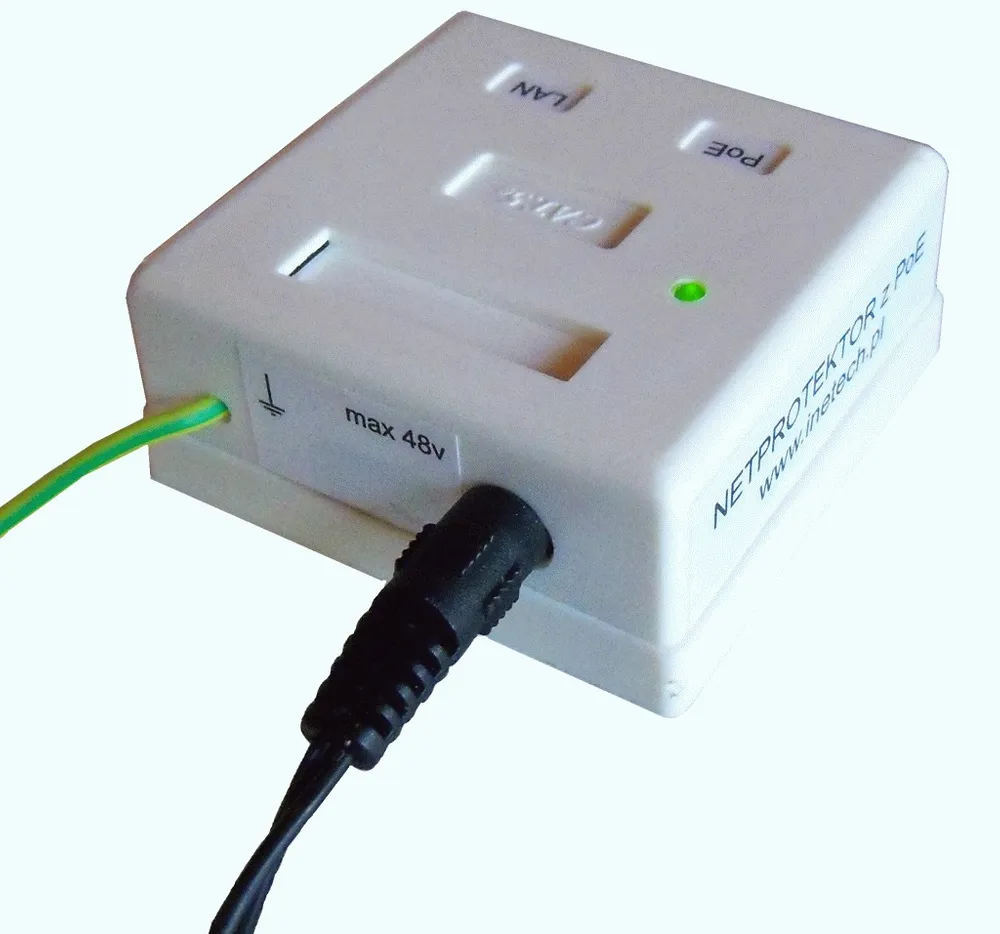

N02 NETPROTECTOR WITH POE ADAPTER
KOD: N02 NETPROTECTOR WITH POE ADAP
Kontakt
Konto
Ulubione
Koszyk
Overvoltage protection for network devices connected via UTP fo example:
IP cameras, network cards, routers, switches, servers, gateways and VoIP phones.
Enables power devices through the unused pairs of wires 4-5 7-8 (passive PoE, incompatible with IEEE 802 .3af)
Specifications:
Type of sockets | RJ45 magnetically shielded |
Maximum bandwidth | 100Mb |
Protection level of overvoltage protector (line-line) | 67V |
Protection level of overvoltage protector (line-ground) | 230V |
Maximum pulse power | 1500W |
Maximum PoE voltage | 60V |
Maximum PoE current | 1,8A |
Capacity (line-line) | <20pF |
Dimensions: | 62x60x27mm |
Length of the grounding wire | 1m |
