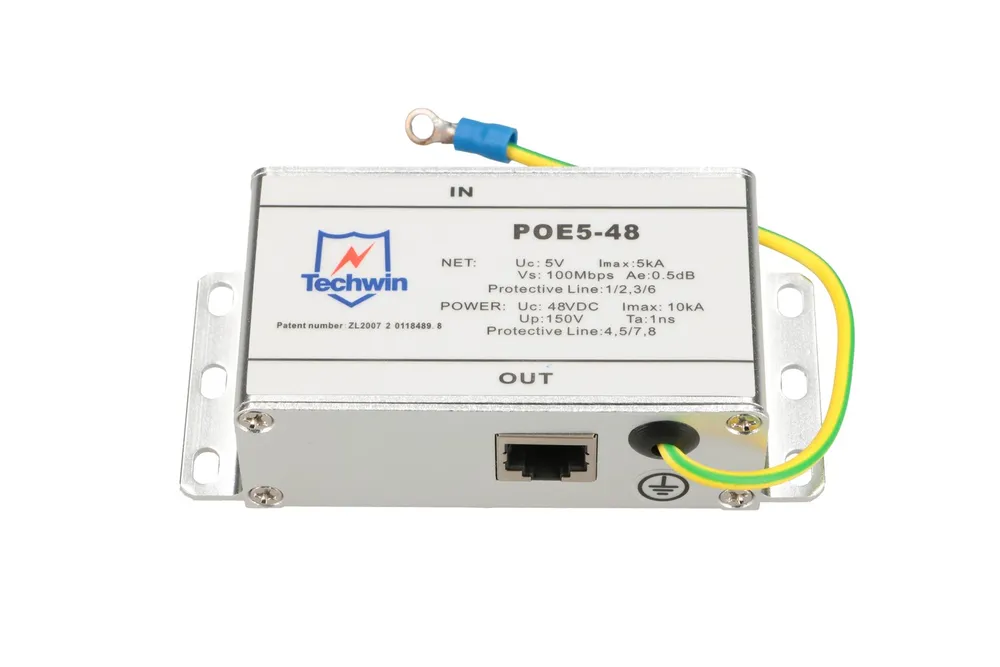

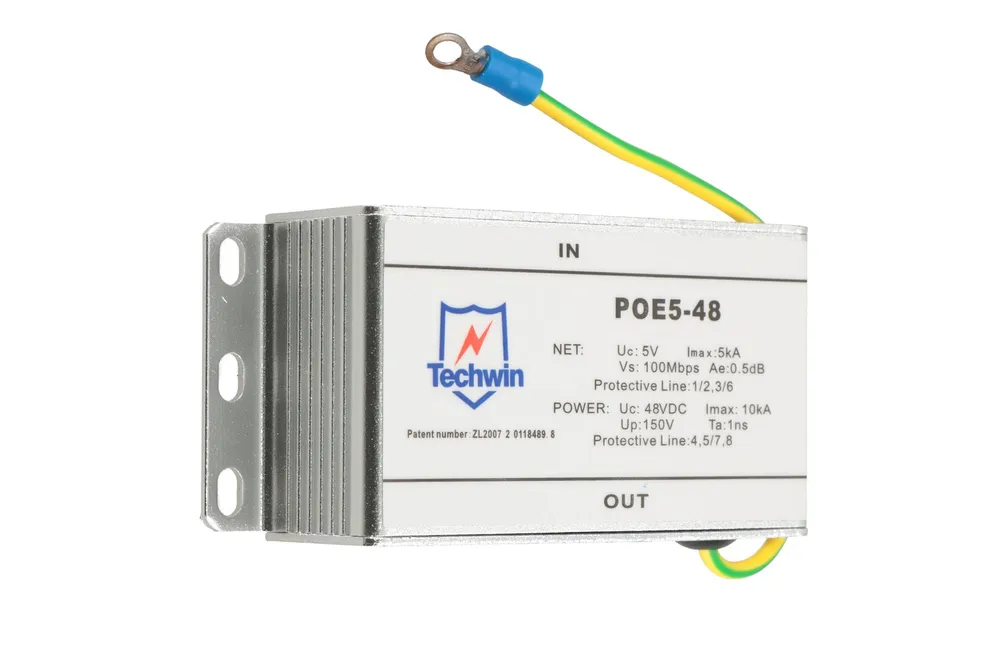

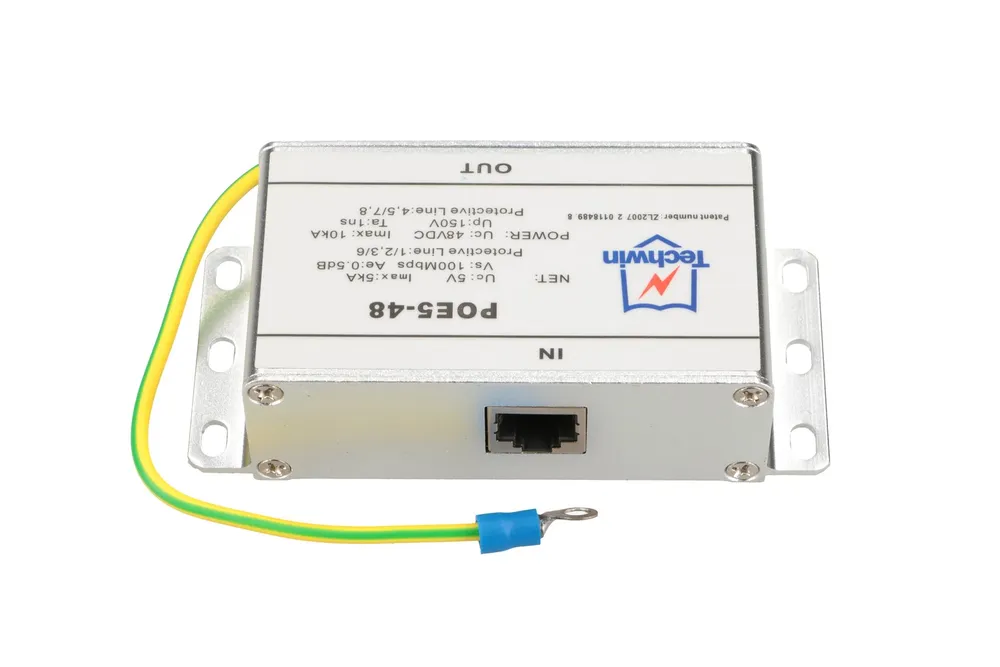

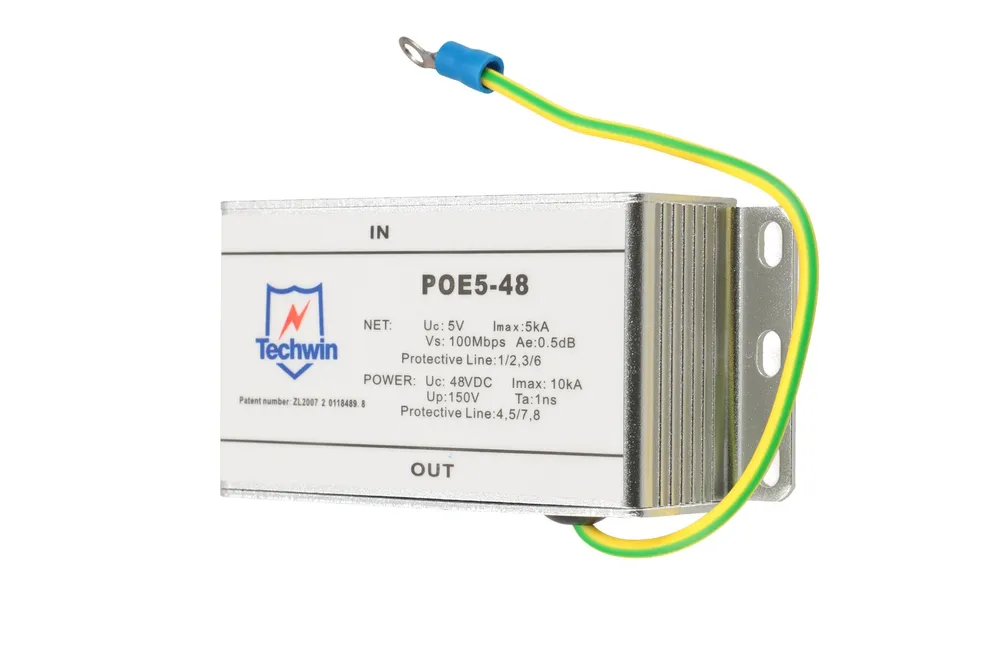

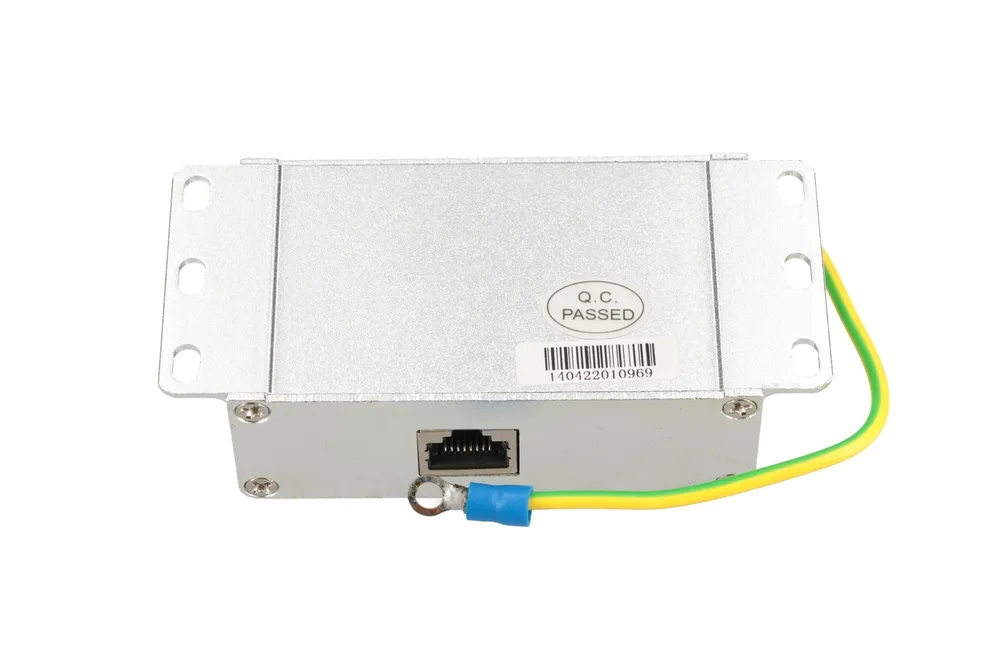

100Mbps PoE Indoor Surge Protector POE5-48.This model is designed to protect PoE enabled network from lightning over-voltage, transient over-voltage and static discharge. The protector implements multi-level protection circuit with advanced manufacturing process, and has excellent performance on discharge current, limiting voltage, response time, stability and over-all reliability.
FEATURES:
● Multi. Protection circuits, Gas-Tube+ TVS technology
● Dual protection in Common module and different module
● TVS array technology, low capacitance
● Multi-Strike Capability
| Power Parameter | |
| Working voltage Un | 48V DC |
| Max. continuous operating voltage Uc | 57V DC |
| Nominal discharge current(8/20µs)In | 5kA |
| Max. discharge current (8/20µs)Imax | 10kA |
| Protection level (8/20µs)Up | 150V |
| Protection line | 4/5, 7/8 |
| Ethernet Parameter | |
| Max. continuous operating voltage Uc | 5V |
| Limiting voltage (10/700µs) Up Line-ground / Line-Line | ≤500V ≤20V |
| Nominal discharge current(8/20µs)In | 3kA |
| Max. discharge current (8/20µs)Imax | 5kA |
| Adapt transmission rate | 100Mbps |
| Insertion loss | ≤0.5dB |
| Protection line | 1/2, 3/6 |
| Response time Ta | 1ns |
| Mechanical characteristics | |
| Dimension | 28(H)×48(W)×110(L)mm |
| Weight per unit | 120g |
| IP Level | IP20 |
| Working conditions | Temperature: -40 to 85℃, Relative humidity: ≤95% |
| Standards Compliance | IEC61000, RoHS |
