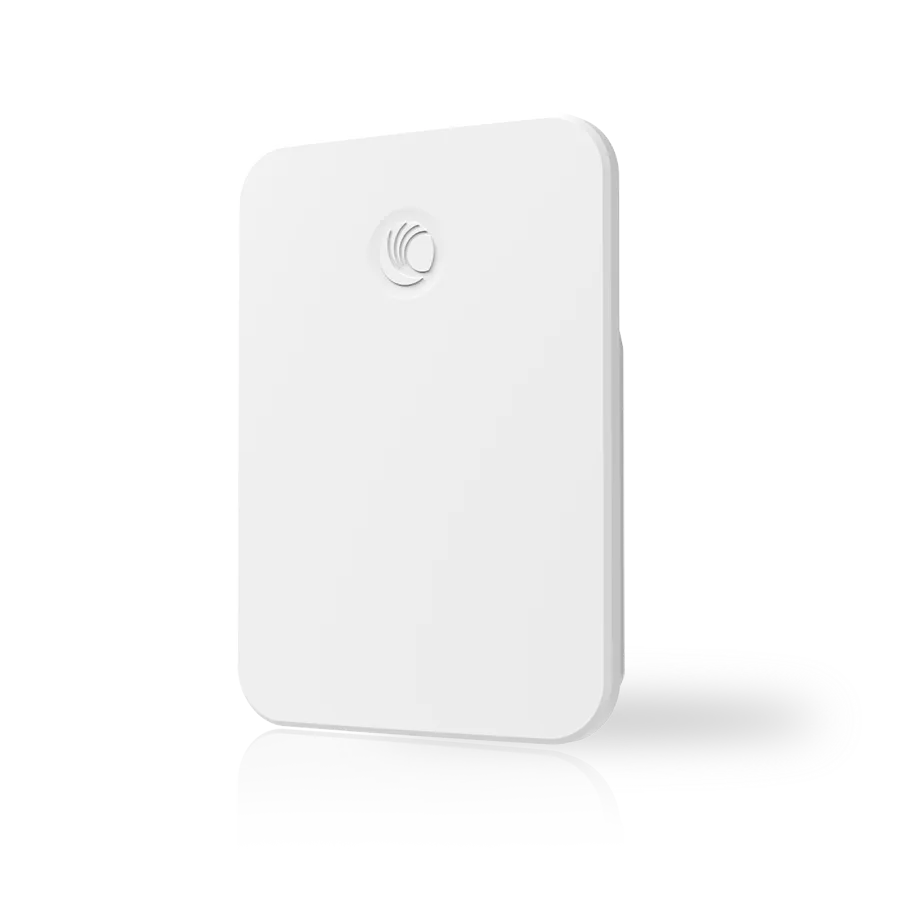

Cambium cnPilot E510 Outdoor ROW | Access point | 2,4GHz, 5GHz
British (UK) / GBP / Prices without VAT
Cambium cnPilot E510 Outdoor ROW | Access point | 2,4GHz, 5GHz AC Wave2 MU-MIMO, 1x RJ45 1000Mb/s

Cambium cnPilot E510 Outdoor ROW | Access point | 2,4GHz, 5GHz AC Wave2 MU-MIMO, 1x RJ45 1000Mb/s

CODE: PL-E510PEUA-RW
356,15 GBP without VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
Operating frequency: 2.4 GHz5 GHz
Wireless network standards: IEEE 802.11ac Wave 2
more SHOW MORE PARAMETERS

ABOUT PRODUCT

Cambium Access Point, indispensable in networking

Cambium CNPilot E510 Outdoor is a reliable access point based on multi-antenna MIMO transmission. Wide frequency band ensures trouble-free signal reception. It allows to work with different Ethernet LAN data transfer speeds. High communication standards enable efficient network connection without unnecessary interference. Its parameters meet the expectations of modern technologies. In addition to modern technical specifications, the access point is easy to install and compact in shape, so that it can be placed both on the wall and on the bar.

CAMBIUM CNPILOT E510

SPECIFICATION

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
Operating frequency 2.4 GHz, 5 GHz,
Wireless network standards IEEE 802.11ac Wave 2
Antenna gain Under 10dbi
Antenna type Integrated
Application Outdoor
MIMO Type MU-MIMO 2x2
Type of device power supply PoE 802.3af/at

Technical data:
Frequency band 2400 - 2484/5150 - 5850 GHz
2.4 GHz Yes
5 GHz Yes
Data transfer rate over Ethernet LAN 10
Data transfer rate over Ethernet LAN 100
Data transfer rate over Ethernet LAN 1000 Mbit/s
Communication standards IEEE 802.11a
Communication standards IEEE 802.11ac
Communication standards IEEE 802.11b
Communication standards IEEE 802.3af
Communication standards IEEE 802.11g
Communication standards IEEE 802.11n
Communication standards IEEE 802.3at
Modulation 16-QAM
Modulation 64-QAM
Modulation 256-QAM
Service Quality Support (QoS) Yes
VLAN support Yes
Type MIMO Multi User MIMO
Product colour White
Placement Bar
Placement The Wall
IP degree of protection IP67
Maximum power consumption 12,95 W
Product weight 1.1 kg
Product width 215 mm
Depth of product 65 mm
Product height 320 mm
Encryption / security WPA2
Encryption / security WPA-PSK
Encryption / security WPA-TKIP
Syslog Yes
Temperature range (operation) -40 - 65 C
DHCP server Yes
Antenna gain level (max) 8 dBi
Type of antenna direction Omnidirectional antenna
Antenna functions Integrated antenna
Width 270mm
Length 120mm
Height 320mm
