Cambium EPMP Force 300-25 EU | CPE | AC WAVE2 5GHz, 2x2 MIMO, RJ45 1000Mb/s, 25dBi

Cambium EPMP Force 300-25 EU | CPE | AC WAVE2 5GHz, 2x2 MIMO, RJ45 1000Mb/s, 25dBi

CODE: C050910M203A
113,08 GBP without VAT
OUT OF STOCK

ABOUT PRODUCT

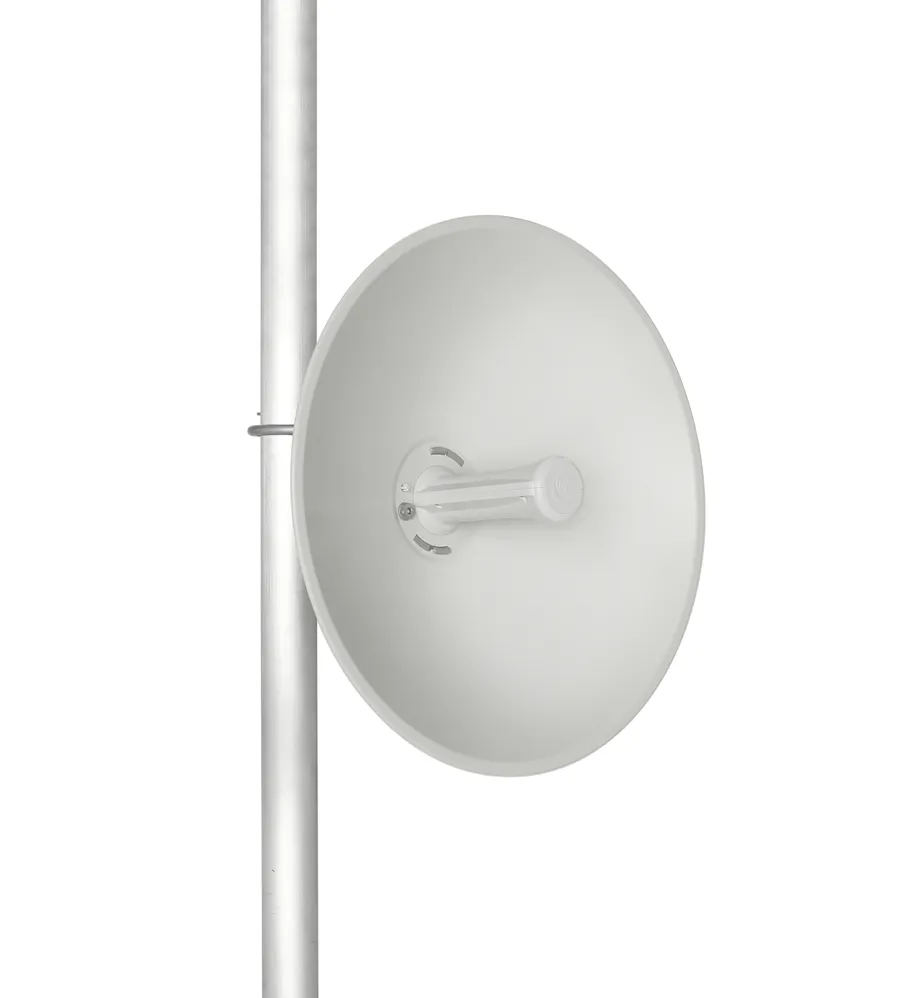

ePMP Force 300-25 system - provides high antenna gain

The ePMP Force 300-25 system operates in 802.11 ac Wave2 standard, provides maximum throughput up to 500 Mbps. The device definitely stands out from the competition due to the power of radio transmitter and narrow transmission beam. It is an obvious advantage in an environment with a significant density (noise) of signals from other WiFi networks. Devices with wide antenna propagation are always easy to see (align the antenna), but their wide, non-selective antennas pick up not only their dedicated signal but also all foreign signals, thus increasing the noise level and lowering the achievable connection speed. Only the use of antennas with narrow beamforming width allows, on the one hand, to precisely send a focused signal in the desired direction, and on the other hand, minimizes the presence of extraneous signals at the transceiver head, resulting in higher connection speed. Providing reliable connectivity, due to the overcrowded R-band, is a challenge for wireless service providers around the world. With free channels becoming an increasingly scarce commodity, finding the right equipment to put together a broadband link in such a noisy space has become essential. The ePMP Force Series is the answer to this challenge, excelling in both low and high density environments.

overhead

Features:

  • Cambium Networks' ePMP Force 300-25 is designed to provide customers with the ability to operate in high interference environments, delivering excellent throughput - over 500 Mb/s of actual transfer.
  • The ePMP Force 300-25 supports channel widths from 20 MHz to 80 MHz and modulates up to 256 QAM.
  • The ePMP Force 300-25 is easy to install, configure, and monitor performance from anywhere.
  • The ePMP Force 300-25 offers continuous spectrum monitoring of the RF signal and allows you to change operating parameters without turning off the device.
  • Configurable adaptive operating modes provide low latency times of 3-5 ms - for both symmetrical and asymmetrical connections.
  • QoS management guarantees exceptional quality for Triple play services - VoIP, video and data - with three levels of prioritization.
  • Long linking is possible due to the high gain antenna and the high transmitting power of the radio of 27dBm.
  • This platform is designed for users who want to create high-performance radio connections without interfering with other networks.
  • The installation process is facilitated by the universal bracket - for mounting on a pole or a façade.
overhead

SPECIFICATION

Features / filters
Operating frequency 5 GHz
Number of LAN ports 1x [10/100/1000M (RJ45)]
Maximum wireless transmission speed 500 Mbps
Wireless network standards IEEE 802.11ac Wave 2
Region / power cable ROW/EU
Type of power supply for the device PoE 802.3af/at
Operating temperature -30°C to +60°C
MIMO type 2x2
Type of device Radiolink, Client device
Antenna gain 21dBi - 30dBi

Technical specifications
Channel spacing In 5 MHz steps
Frequency range Broadband support 4910 - 5970 MHz (note: allowable frequencies and bands are dictated by country-specific regulations).
Channel width 20 | 40 | 80 MHz
ARQ Yes
Nominal receive sensitivity (w/ FEC) at 20 MHz channel MCS0 = -87 dBm to MCS8 (256QAM-3/ 4) = -63 dBm
Nominal receive sensitivity (w/ FEC) on channel 40 MHz MCS0 = -85 dBm to MCS9 (256QAM-5/ 6) = -59 dBm
Nominal receive sensitivity (w/FEC) on channel 80 MHz MCS0 = -82 dBm to MCS9 (256QAM-5/ 6) = -56 dBm
Modulation levels (adaptive) MCS0 (BPSK) to MCS9 (256QAM-5/6)
Transmission power range 0 to +27 dBm (total, up to regional EIRP limit) (1 dB step)
Physical characteristics
Overvoltage immunity 1 Joule Integrated (C000000L065A - 30V surge fuse recommended)
Watertightness class IP55
Operating temperatures -30° C to + 60° C (-22° F to + 140° F)
Weight 2.4 kg (5.3 lbs)
Wind resistance 180 km/hr (112 mi/hr)
Dimensions (diameter x depth) 47 cm x 31 cm (18.5 in x 12.2 in)
Range of pole diameters 6.4 cm - 7.6 cm (2.5 inches - 3 inches)
Energy consumption 12 watts
Input voltage 30 volts
Security
Encryption 128-bit AES (CCMP mode)
Certificates
FCC Identifier Z8H89FT0017
Industrial certificate 109W-0017
CE EN 301 893 V2.1.1 (5,4 GHz), EN 302 502 V2.1.1 (5,8 GHz)
Part Number of device
C050910C203A ePMP Force 300-25 5 GHz High Gain Radio (EU) (power supply with EU plug)
C050910C001A ePMP Force 300-25 5 GHz High Gain Radio (RoW) (without cable)
C050910C201A ePMP Force 300-25 5 GHz High Gain Radio (RoW) (power supply with EU plug)
Antenna specifications
Frequency range 4910 - 5970 MHz
Antenna type Bowl
Peak Yield 25 dBi
3dB horizontal beam width 6-10 degrees
3dB vertical beamwidth 6-10 degrees
Back radiation 25 dB
Cross polarization 20 dB
antennas
