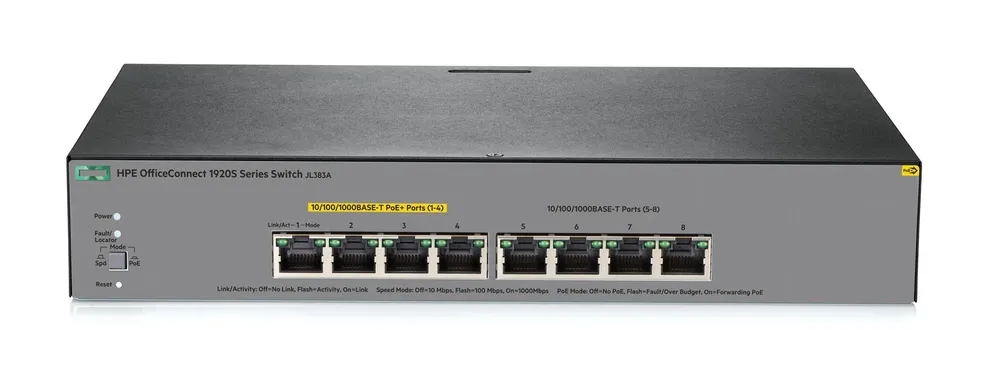

HPE OfficeConnect 1920S is an advanced, intelligent and manageable 8-port Gigabit switch
from the most popular series of Aruba switches for small businesses. Presented model has 8 10/100/1000 ports. 4 ports support PoE+/PoE with 65 W Power over Ethernet budget.
The 1920S HPE OfficeConnect 1920S series of switches are advanced, intelligent, and manageable high-performance Gigabit switches at an attractive price. They are designed for small businesses that need performance and bandwidth-enhanced applications. They are ideal for environments that require easy setup and control and intelligent, flexible network management. They offer 8, 24 and 48-port configurations, with or without PoE+ technology, and some models are equipped with SFP connectors for fiber optics.
The easy-to-connect HPE OfficeConnect 1920S series switches are ready to use practically right out of the box. The series consists of six models, including 8G-, 24G- and 48G-port with or without PoE+ technology for rack mounting. PoE+ models with 24G and 48G ports offer SFP fiber optic connectivity. These intelligently managed switches use an intuitive web interface for simplified deployment and network management as well as precise control of key functions.
The HPE OfficeConnect 1920S series switches support energy-efficient Ethernet for reduced power consumption and an extended feature set for more reliable operation. Security management limits access to critical configuration commands, offers multiple levels of password-protected privileges, and supports secure http (https).
The HPE OfficeConnect 1920S series provides an advanced level of functionality for intelligently managed switches, including Layer 3 static routes, SFP ports, speed limiting, link aggregation and IGMP. The switch series comes with a limited, lifetime warranty and 24x7 telephone technical support (24/7) for 90 days.
|Ports||4 ports RJ-45 10/100/1000 Mb/s with PoE+ (65 W)
4 ports RJ-45 10/100/1000 Mb/s
|Delay||100 Mb: delay < 7 s
1000 Mb: delay < 2.4 s
|Capacity||Up to 11.9 Mpps|
|Routing/switching capacity||16 Gbps|
IEEE 802.3 Ethernet MIB
|Energy consumption||72.9 W (maximum), 9.7 W (idle)|
|Dimensions (H x W x D)||4.39 mm x 25.4 mm x 15.95 cm|
