Jirous JRC-24 Duplex Precision N/Female | Parabolic antenna | 5
British (UK) / GBP / Prices without VAT
Jirous JRC-24 Duplex Precision N/Female | Parabolic antenna | 5,45 - 5,9GHz, 23,6dB, dedicated for Mimosa B5C

Jirous JRC-24 Duplex Precision N/Female | Parabolic antenna | 5,45 - 5,9GHz, 23,6dB, dedicated for Mimosa B5C

CODE: JIROUS JRC-24 FOR B5C
274,50 GBP without VAT
OUT OF STOCK
Antenna frequency: 5 GHz
Antenna type: Directional
Energy gain: 21dBi - 30dBi
Application: Outdoor
more SHOW MORE PARAMETERS

ABOUT PRODUCT

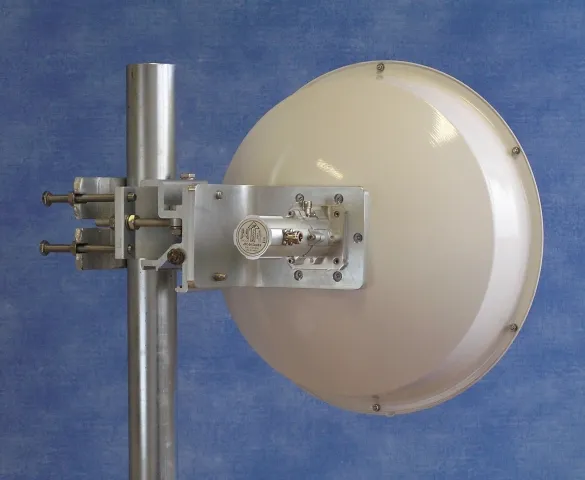

Jirous JRC-24 parabolic antenna

Jirious's solution is a parabolic directional antenna operating in 5.0 - 5.95 GHz band. The JRC-24 operates in vertical or horizontal polarization, depending on the position of the radiator, has a gain of 23.5 dBi and a main beam of 8.8°. It has been designed to minimize losses caused by other antennas. With a set of two antennas you can create a point-to-point connection over a long distance. The offered product is characterized by a high power ratio of the front/rear beam, which has a good influence on its operation.

Large separation between the connectors of up to 53dB. Metal flange provides increased separation between the antennas on the mast causing less interference between the connections. The included bracket allows you to tilt and raise the antenna. Design dedicated for Mimosa B5C devices

SPECIFICATION

Features / filters
Antenna frequency 5 GHz
Antenna type Directional
Energy gain 21dBi - 30dBi
Application Outdoor
Connector type N FEMALE
Front-to-back ratio 30 dB
Horizontal beamwidth 8.8°
Numbers of pieces in the package 1-pack
Polarization Vertical, Horizontal,
VSWR 1.5:1
