Jirous JSC-19-30V | Sector antenna | 5.47 - 5.9GHz, 17.5dBi
British (UK) / GBP / Prices without VAT
Jirous JSC-19-30V | Sector antenna | 5.47 - 5.9GHz, 17.5dBi

Jirous JSC-19-30V | Sector antenna | 5.47 - 5.9GHz, 17.5dBi

CODE: JIROUS JSC-19-30V
32,36 GBP without VAT
OUT OF STOCK
Antenna frequency: 5 GHz
Antenna type: Sector
Energy gain: 10dBi - 20dBi
Horizontal beamwidth: 38°
more SHOW MORE PARAMETERS

ABOUT PRODUCT

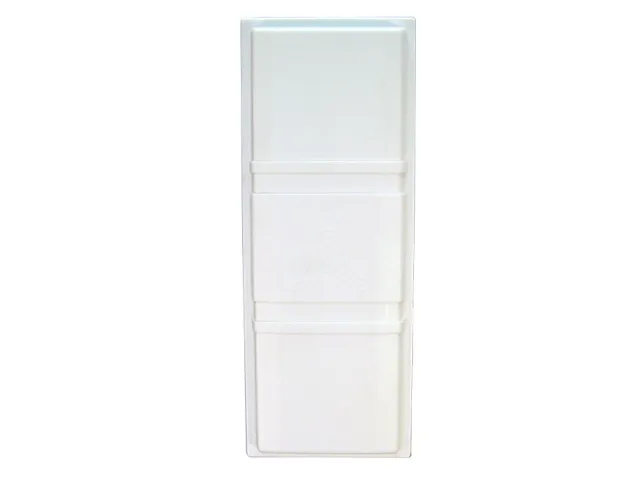

Sectoral antenna Jirous JSC-19-30-V

Sector antenna operating in vertical polarization, ideal for base stations. With vertical polarisation, the beam is 8-9° in the vertical plane and 34° in the horizontal plane. For customers it provides high resistance to interference and is therefore suitable for noisy areas.

SPECIFICATION

Features / filters
Antenna frequency 5 GHz
Antenna type Sector
Energy gain 10dBi - 20dBi
Horizontal beamwidth 38°
Polarization Vertical
Vertical beamwidth

Technical parameters
Frequency 5 - 5.9 GHz
Profit 18 dBi ±0.6
Dimensions 128 x 326 x 30 mm

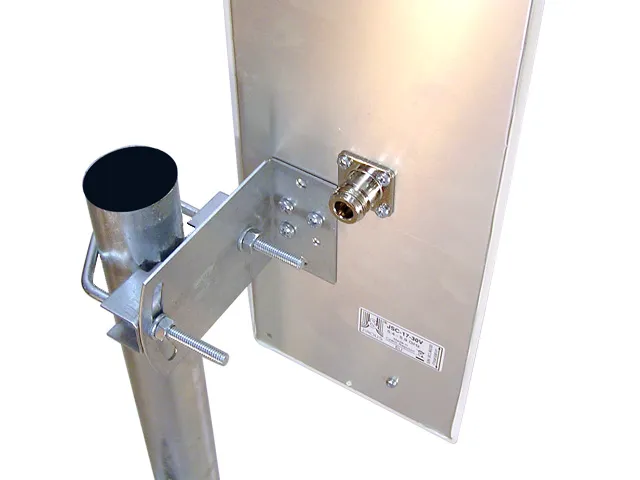

Mast diameter 19 - 54 mm
