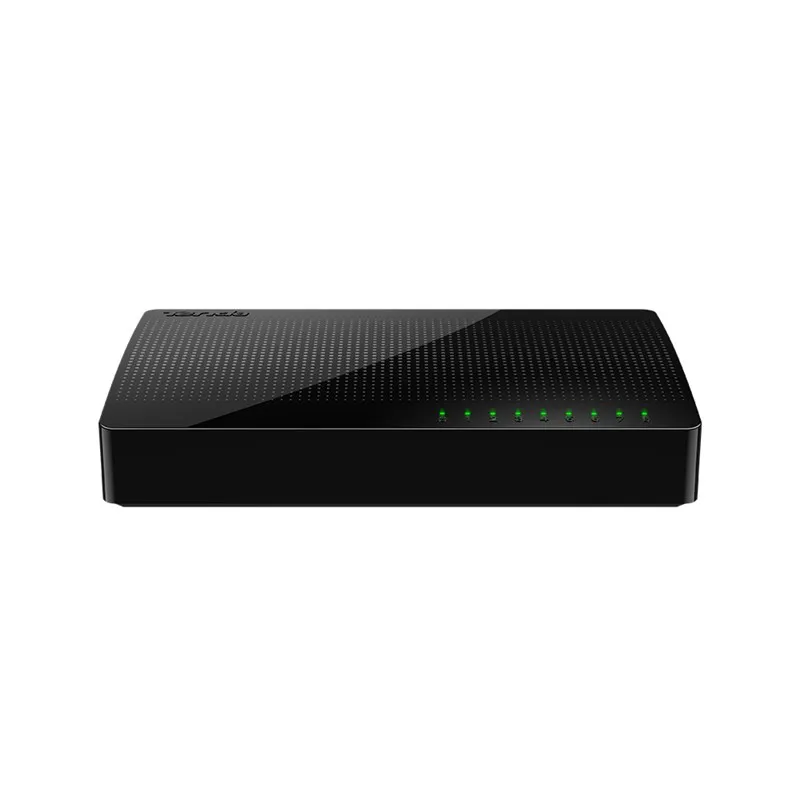

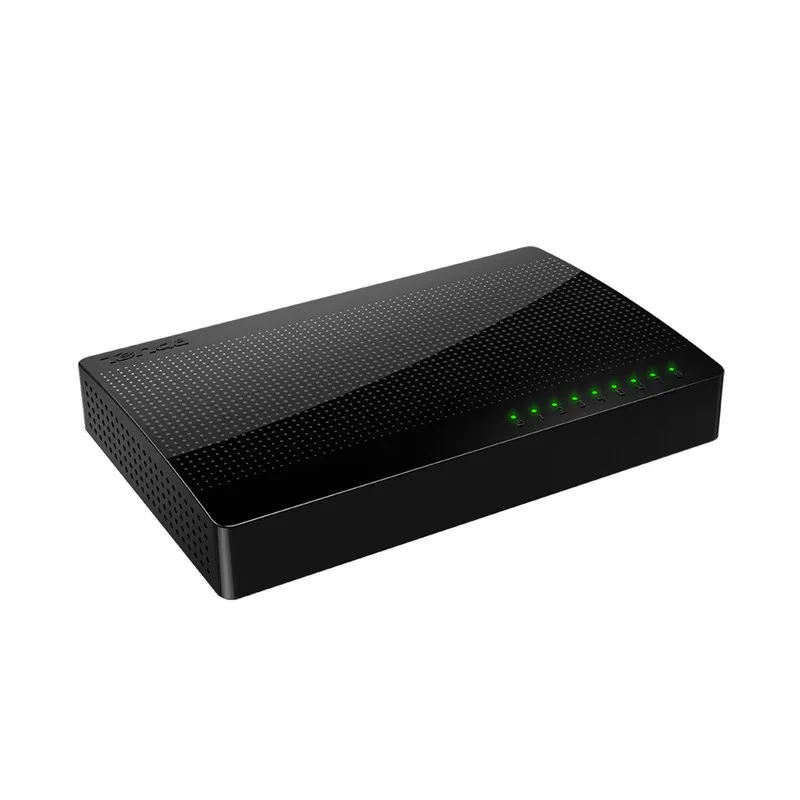

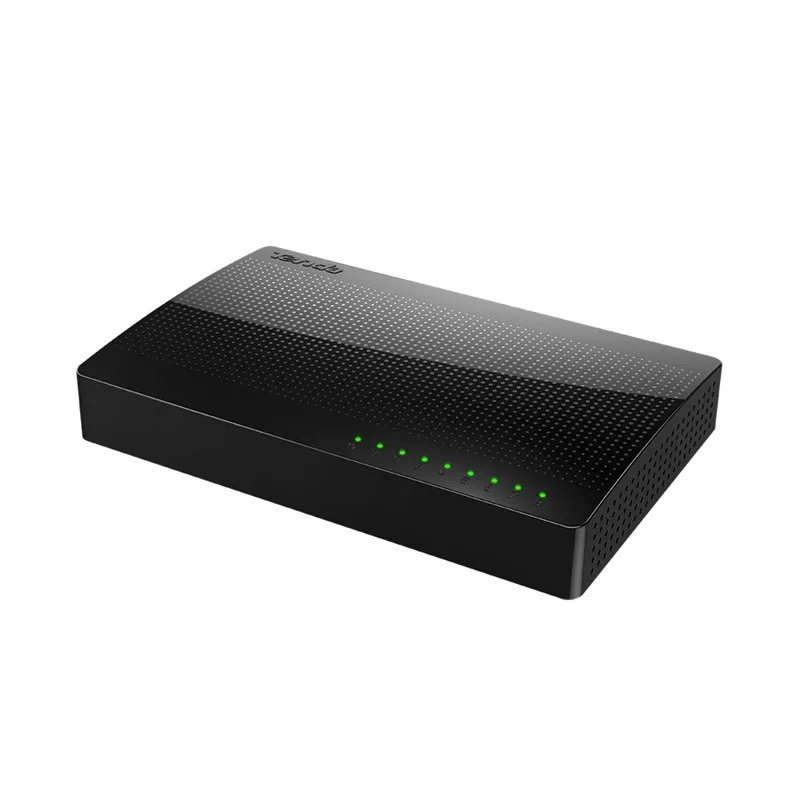

The Tenda SG108 is an 8-port switch designed for both home and smaller offices, and is the right solution for handling gigabit speeds on your network. It is ideal for connecting NAS servers, game consoles, multimedia TVs, players and PCs. The switch is equipped with eight 10/100/1000 Mbps ports, each with autonegotiation function supporting IEEE 802.3, 802.3u, 802.3ab standards, so that the device can easily and efficiently create or expand a high-bandwidth wired LAN. Special power management technology reduces power consumption by up to 80%, so the minimum consumption is only 2.3W (maximum 5.5W).
The Tenda SG105 is fully automated and does not require any configuration, the network is accessible by connecting an Ethernet cable in an instant. Whether you are a technology enthusiast or a novice user, the Tenda switch is very easy and intuitive to configure without time-consuming operations.
The SG105 switch is designed for home use and is nice and compact, so it doesn't take up a lot of desk space. With a desk or wall mount design, the SG105 can be placed anywhere and will fit perfectly into any décor in your home.
|Standards and protocols||IEEE 802.3/u/x/ab|
|Interface||8x LAN port RJ45 10/100/1000 Mbps with auto-negotiation and MDI/MDIX auto|
|Data transmission||for 10BASE-T: cable min. cat.3
for 100BASE-TX/1000BASE-T: cable min. cat.5, cat.5e
|Transmission mode||for 10Mbps: 14880pps
for 100Mbps: 148800pps
for 1000Mbps: 1488000pps
|LED||8x LAN connection LED
1x power LED
|Functions||Store-and-forward, Auto-learning and auto-aging for MAC addresses|
|Power consumption||Standby mode: 2.3W, max 5.5W (220V/50Hz)|
