The ZTE F400 terminal provides high quality triple-play services, including IPTV, VoIP and high-speed Internet access.
ZTE F400 is made in a compact, modern style and has features that make it energy efficient. With the TR069 and OAM protocols, remote management and diagnostics are possible and maintenance costs are much lower.

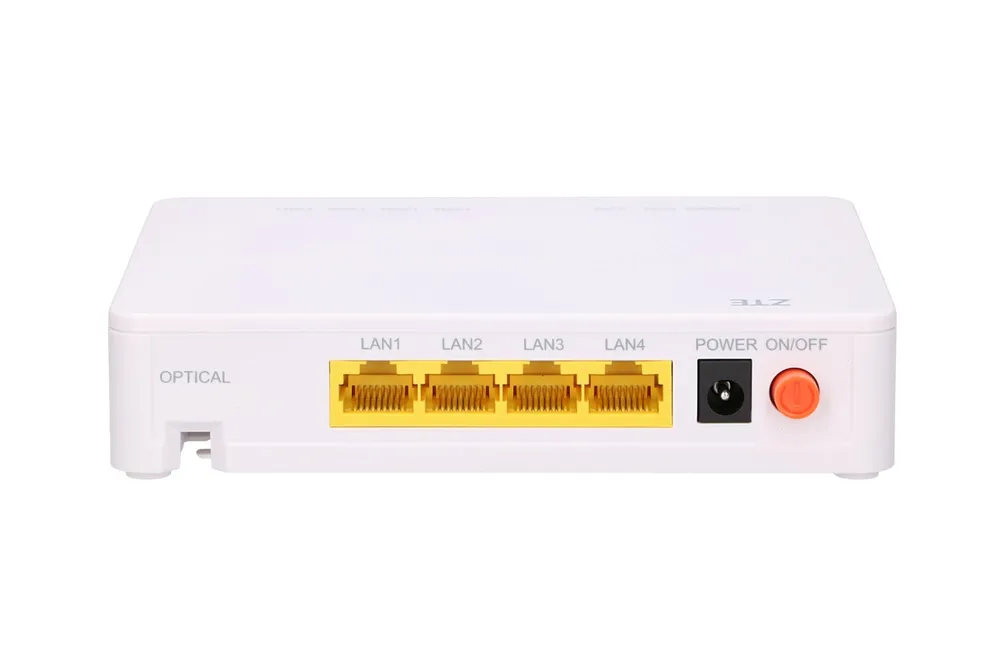

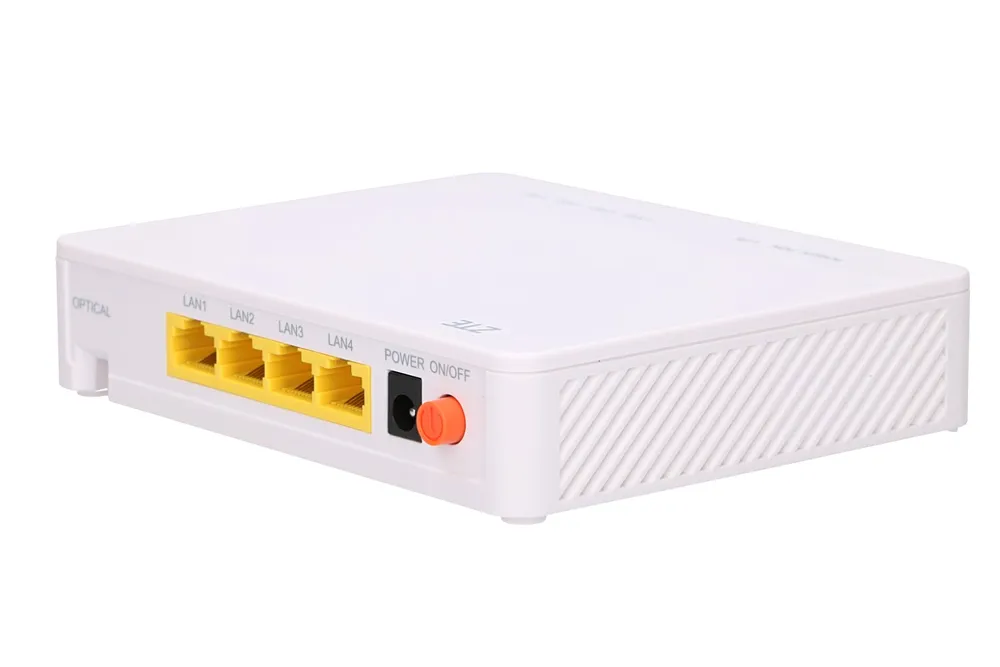

The EPON optical port in F400 will allow you to maintain a fast Internet connection. The used Gigabit Ethernet and 3 Fast Ethernet connector will allow to connect devices to the network via a cable, which will ensure a stable and efficient connection.
|EPC interface||1 x EPON SC/UPC
-Transmission: 1,244 Gb/s
-Receipt: 2.448 Gb/s
-Transmission: 1290-1330 nm
-Reception: 1480-1500 nm
Affection: -28 dBm
|Other interfaces||1 x Gigabit Ethernet port
3 x Fast Ethernet port
|Modes of operation||Bridge
|Dimensions||180 x 38 x 127 mm|
|Working conditions||Temperature: 0°C to 40°C
Humidity: 5% to 95%
|Features of GPON||8 x T-CONT
32 x GEM port
|Features of the network||VLAN (802.1Q, 802.1P, 802.1ad)
Dual IPv6 stack
|Management||Local via Web
|Power supply||Input voltage: 12 V DC
Maximum power consumption: Up to 7W
Standard Gigabit Ethernet, which is supported by one gigabit Ethernet port on a ZTE F400 network device. It will allow the device to be wired to the network and data transmission at speeds up to 1 Gb/s.
