Cambium EPMP 4X4 MU-MIMO | Sector antenna | for EPMP 3000 serie
Cambium EPMP 4X4 MU-MIMO | Sector antenna | for EPMP 3000 series

Cambium EPMP 4X4 MU-MIMO | Sector antenna | for EPMP 3000 series

CODE: C050910D301A
330,86 GBP with VAT
Added to cart
local_shipping SHIPPING: 24h
Antenna frequency: 5 GHz
Energy gain: 10dBi - 20dBi
Application: Outdoor
Compatible with brand: Cambium

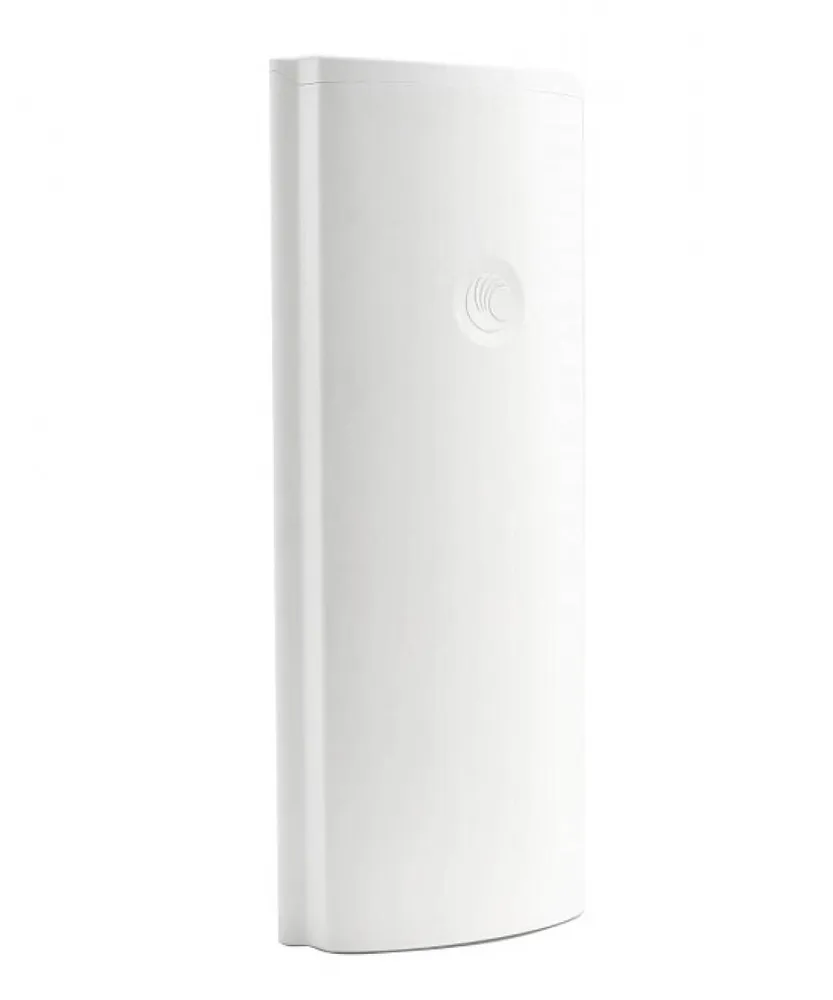

World-class sector antenna CAMBIUM EPMP 4x4 MIMO

Cambium Networks has deployed over five million radio devices worldwide, achieving unprecedented levels of scalability. Continuing the tradition of designing and manufacturing industry-leading antenna solutions, Cambium Networks ePMP 3000 4X4 sector antenna combines all the key innovations in the Cambium antenna lineup with the addition of 4X4 Multi User MIMO support. This antenna has been designed to operate in 5 GHz band and 90 degree propagation. It is an integral part of Access Point ePMP 3000 and supports multiple MIMO users.

Key benefits

  • Re-use of frequencies: designed to reuse the ABAB channel (two channel coverage, four sectors). The sector antenna has a minimum gain of 17 dB and propagation over a wide 90 degree radiation angle.
  • Antenna selectivity: a constant gain of 4.9 to 6.0 GHz allows the operator to select a channel in any band and achieve the desired performance.
  • Consistent coverage: the excellent ability to fill the antenna allows a large geographical area in the sector to be covered, both at the base of the antenna mast and near the edges of the sector.
  • Designed for the installer: small, compact design, integrated ePMP antenna holder and the possibility of integration with GPS antenna.
  • Predictable performance: the sector antenna is available for designers in the Cambium LINKPlanner programme. The 3D model shows the range at all altitudes and latitudes.


Features / filters
Antenna frequency 5 GHz
Energy gain 10dBi - 20dBi
Application Outdoor
Compatible with brand Cambium
Connector type 4x RP-SMA
Electric deviation
Front-to-back ratio 30 dB
Horizontal beamwidth 70°
IP Rating IP65
Polarization Double polarization (horizontal and vertical)
Port-to-Port isolation >20 dB
Vertical beamwidth

Frequency range 4.9 GHz to 5.97 GHz
Model designation C050910D301A
Antenna yield 17 dBi
Horizontal radiation 70 degrees
Vertical radiation 6 degrees
Port-port insulation > 20 dB
Polarisation 2 x horizontal, 2 x vertical
Reverse radiation ratio 30 dB
Maximum input power up to 5 W
Resistance to entry 50 ohm
Input contours/connectors 4 x RP SMA
Mounting bracket Included in the kit, to be mounted on masts with diameters from 2" to 4". (5 cm to 10 cm) Deviation from 10 to +5 degrees. Access point ePMP equipment included on the back of the antenna housing.
Dimensions The body of the antenna: 23,4” (H) x 9.6" (W) x 3.25" (D) (594 mm x 157 mm x 110 mm)
Leakage class IP65
Weight The body of the antenna: 8.0 pounds, 3.7 kg with ePMP 3000 access point and mounting brackets: 13.8 pounds, 6.3 kg
The material of the antenna ABS with UV protector
Operating temperatures -40 degrees C to 60 degrees C


cnMedusa for ISP

ePMP NOW: Cambium sector antennas

Cambium " MIMO and MU-MIMO implementation

ePMP 3000 introduction to Gen3 - Webinar

How does MU-MIMO technology work?


Cambium Sector 4x4 MU-MIMO antenna specification Download


ePMP 3000 - how to test the MU-MIMO?

Initial testing of the MU-MIMO 4x4 after deployment can be performed using the built-in wireless test tool.

A new option for ePMP3000 mode has been added to the Wirless link test page.

Wireless link test can be run simultaneously for single SM or double SM.

More information - click here.
