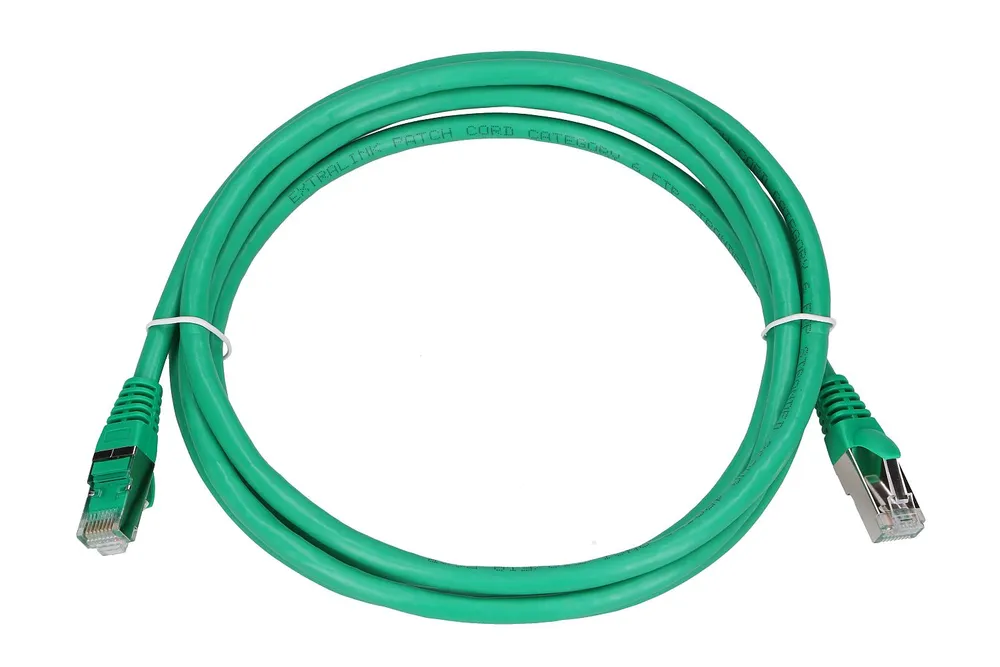

Network cableGigabit Extralink Patchcord LAN is a 2 meter long copper cable. For indoor use. LAN Patchcord is a basic element of computer networks operating in Ethernet standard. It is used to directly connect two active devices, such as a router or switch, so that data can be transferred between them. It is also used to connect computers or Voip telephones for structured cabling and to perform patch panels switching in IT cabinets. It is perfect for both large and small computer networks. Shielded patchcord Extralink is highly flexible, which translates into installation convenience and comfort of use.

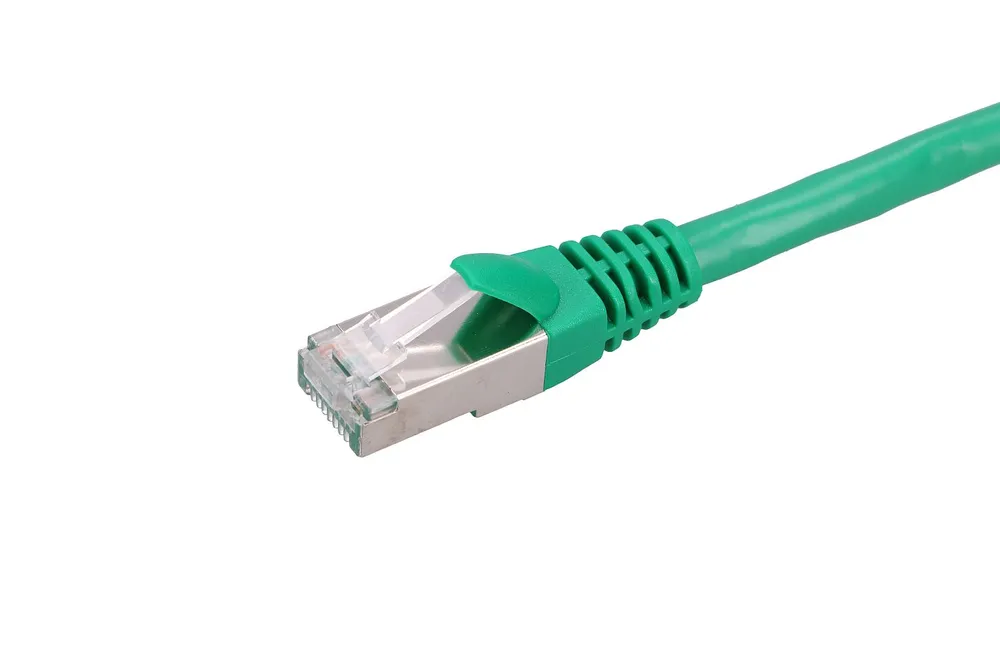

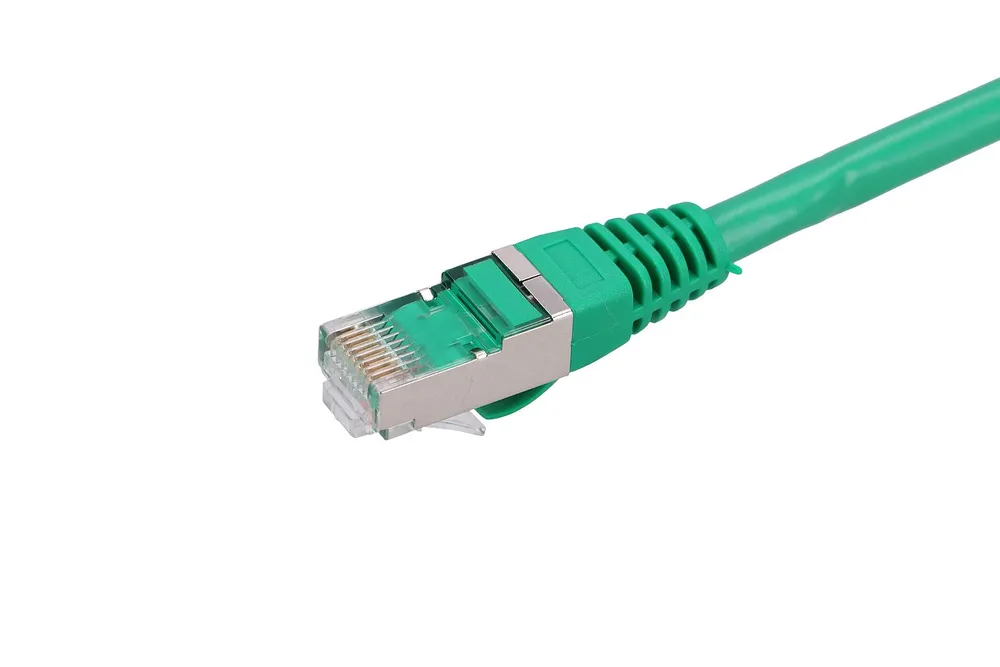

The shielded category 6 FTP patchcord of Extralink is terminated with shielded, gold-plated RJ45 plugs. It is made of four-wire cable, twisted pair type, made of pure copper, thanks to which it is possible to power network devices in PoE standard.
| Basic technical parameters | |
| Cable type | 4 twisted pairs |
| Guide material | Copper wire, pure copper |
| AWG | 26 |
| Cable sheathing | PE |
| Cable shell thickness (mm) | 0,18 |
| Cable sheath diameter (±0.05 mm) | 0,85 |
| External coating | PVC |
| Screen | Aluminium foil |
| Coat thickness (mm) | 0,6 |
| External diameter (±0.2 mm) | 6,0 |
| Colour | Green |
