Extralink SFP 1.25G | SFP WDM Module | 1,25Gbps, 1490/1550nm, single mode, 80km, LC, DOM, pair
Extralink SFP 1.25G | SFP WDM Module | 1,25Gbps, 1490/1550nm, single mode, 80km, LC, DOM, pair Dystans transmisjiPowyżej 20km
Extralink SFP 1.25G | SFP WDM Module | 1,25Gbps, 1490/1550nm, single mode, 80km, LC, DOM, pair Moduł SFP - prędkość portu1,25 Gbps

Extralink SFP 1.25G | SFP WDM Module | 1,25Gbps, 1490/1550nm, single mode, 80km, LC, DOM, pair

CODE: EX.8741 / EAN: 5902560368741
72,63 GBP without VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Output connector: LC
SFP module - port speed: 1,25 Gbps
Transmission distance: Over 20km
Fiber type: SM (Single-Mode)
more SHOW MORE PARAMETERS

ABOUT PRODUCT

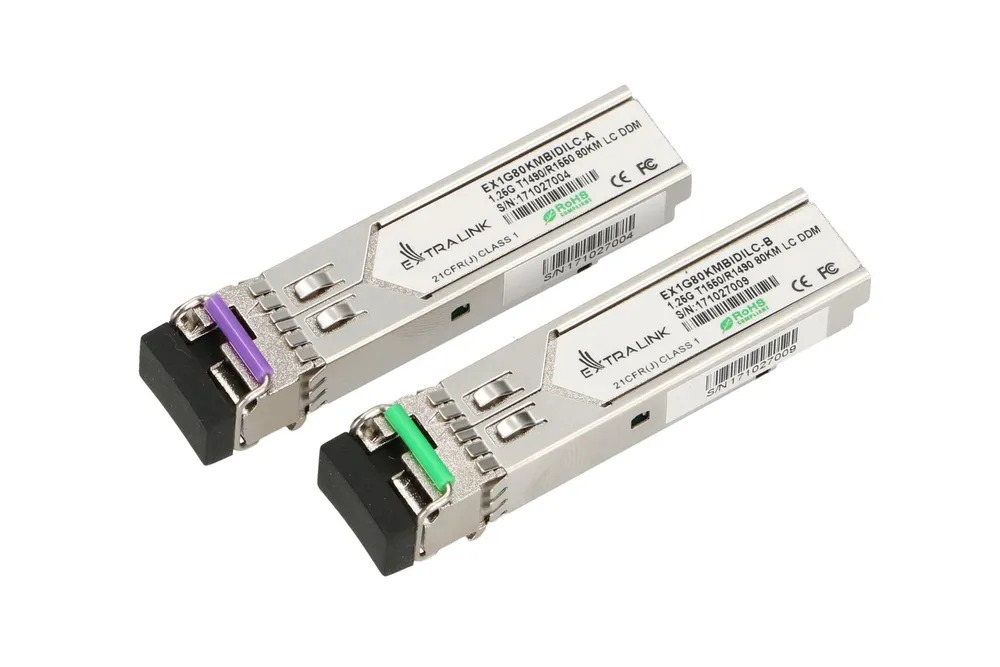

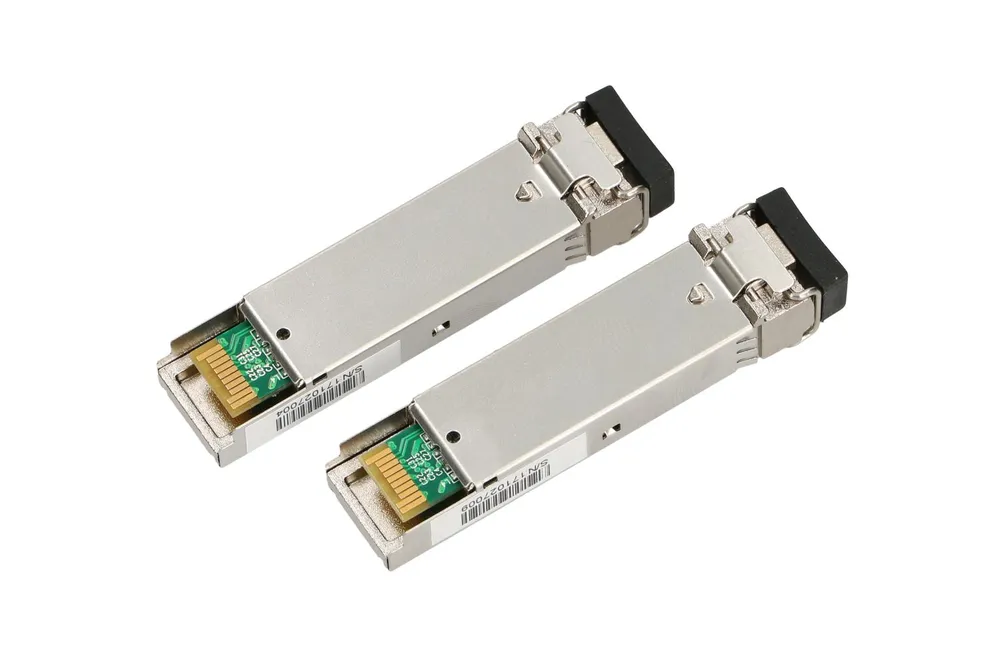

Pair of single-mode SFP 1.25G WDM 1490/1550NM SM 80KM LC DDM modules

The set of Extralink SFP 1.25G WDM modules is designed for data transmission via single-mode optical fibers over distances to 80 km. The single-mode SFP consists of five sections, i.e. DFB laser transmitter, LD controller, PIN photodiode, limiting amplifier and MCU control unit. The SFP optical modules are MSA (Small Form Factor Pluggable Multi-Sourcing Agreement) compliant. They support 1.25 Gb/s data transmission. Connection of fiber optic SFP modules can be done without interruption of the device.

SFP 1.25G WDM 1490/1550NM SM 80KM LC DDM - PAIR

Special features

  • Supports 1.25 Gb/s data transfer rate
  • DFB Tx1550 nm DFB laser transmitter and PIN photodetector
  • Single 3.3 V supply
  • SFP optical module can be connected without interrupting operation
  • Simplex LC connector interface
  • Metal casing to reduce electromagnetic interference
  • Up to 80 km on 9/125μm SMF
  • Compliant with SFP MSA and digital diagnostics SFF-8472
  • Safety Certificate for a Class 1 laser
  • Compliance with RoHS Directive
SFP 1.25G WDM 1490/1550NM SM 80KM LC DDM - PAIR

SPECIFICATION

Features / filters
Output connector LC
SFP module - port speed 1,25 Gbps
Transmission distance Over 20km
Fiber type SM (Single-Mode)
Type of SFP duplex Wavy (WDM)
Wavelength 1490/1550 nm

Specification

Basic technical parameters
Transmission speed Up to 1.25 Gbps
Distance Up to 80 km
Type SFP
Output connector LC
Type of transmission Single-Mode
Kind of asshole Waveform (WDM)
Storage temperature -40℃~85℃
Supply voltage -0.5 V~4 V
Relative humidity 5%~95%
Electricity consumption 1.2 W
