Huawei GICF | OLT Uplink Board | 2 x 1,25GE
Huawei GICF | OLT Uplink Board |  2 x 1,25GE

Huawei GICF | OLT Uplink Board | 2 x 1,25GE

CODE: HUAWEI 5680/5683 GICF BOARD
42,29 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h

ABOUT PRODUCT

Huawei GICF

Huawei GICF is a 2-port card of GE uplink optical interface for Huawei Ma5683T, MA5680T, MA5608T OLT system. The card offers upstream or cascade optical ports, which are equipped with two single-mode 1310nm, 10km SFP by default.

Huawei_GICF

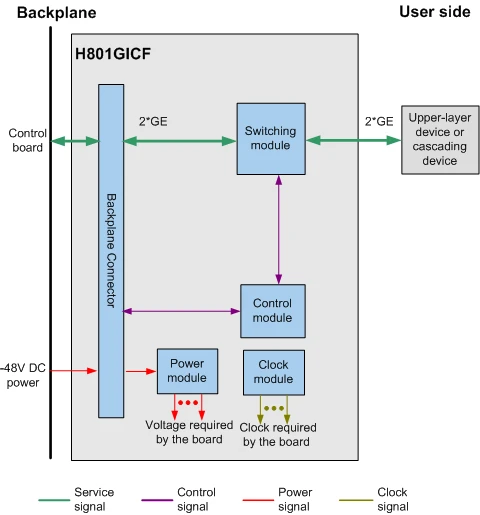

The basic principle of the H801GICF:

The control module loads the board software, controls the operation of the software and manages the entire card.
The conversion module supports transparent data transmission.
The power module supplies power to the other functional modules of the board.

Huawei-GICF

SPECIFICATION

Port GICF
Plug-in module Optical Module (SFP)
Electric module (SFP)
Port speed 1.25 Gbit / s
Dimensions (mm) 25.40 (W) X 237.00 (D) X 197.20 (H)
Energy consumption Static: 3.9 W
Maximal: 3,9 W.
Maximum frame size 2052 bytes. When the jumbo frame function is enabled, up to 9216 bytes can be handled.
Working temperature From -25 ° C to + 65 ° C
Relationship between GE optical/electrical modules and boards GE single-channel bi-directional optical module
GE single-channel bi-directional optical module
GE CWDM single-channel bi-directional optical module
GE Electric module
