Huawei N63E-22 | Rack Cabinet | 21'' 47U
Huawei N63E-22 | Rack Cabinet | 21'' 47U

Huawei N63E-22 | Rack Cabinet | 21'' 47U

CODE: HUAWEI N63E-22 21''
428,89 GBP with VAT
OUT OF STOCK
Cabinet hight: 47U
Rack cabinet type: Standing
Colour: Black
Depth: 300mm
more SHOW MORE PARAMETERS

ABOUT PRODUCT

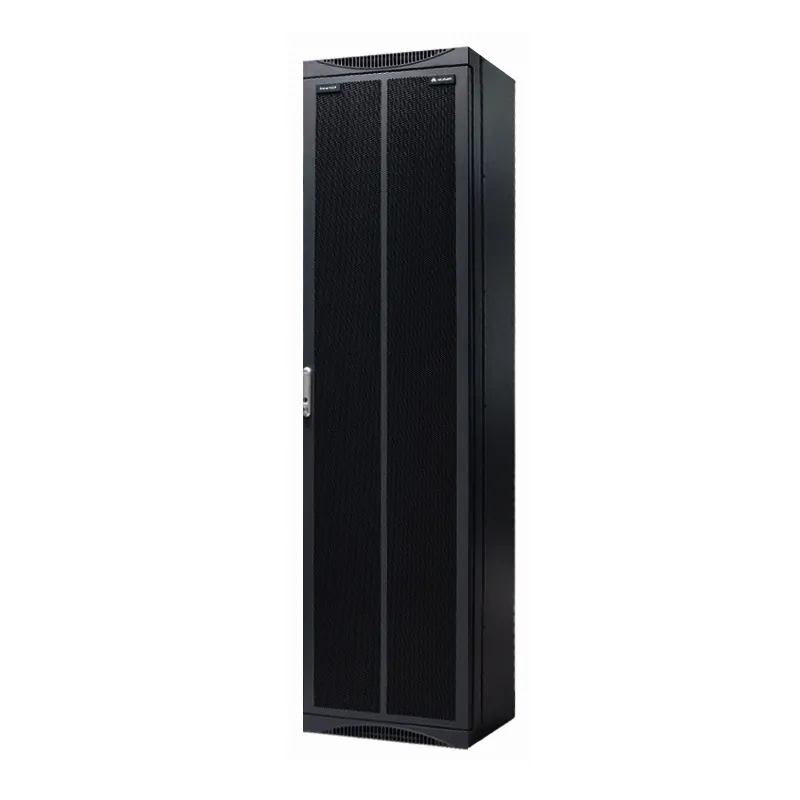

TheN63E-22 cabinet is designed for Class A indoor installations. It is compliant with the ETSI standard. The N63E-22 is a 300mm ETSI floor-standing cabinet in purple-gray. The cabinet accommodates the MA5600T ETSI subrack and the MA5608T enclosure. The N63E-22 cabinet consists of a rack (main frame), front door, bolt-on back panel, and side panels on the left and right sides. The doors are removable and there is a grounding point at the top of the cabinet.

N63E-22 dimensions

SPECIFICATION

Features / filters
Cabinet hight 47U
Rack cabinet type Standing
Colour Black
Depth 300mm
Size 21''
Type of doors Metal
Width 600mm

Technical data
Compliance with standards ETSI cabinet (21 inches): ETSI 300 119-3
Weight 45 kg
Dimensions (W x D x H) 600 mm x 300 mm x 2200 mm
Installation dimensions of the upper part of the enclosure Mounting interface
Hole spacing: 413 mm x 200 mm (W x D)
Four M8 screws
Installation dimensions of the upper part of the enclosure Mounting interface
Hole spacing: 413 mm x 187 mm (W x D)
Four M12 screws
Distance between rack holes 1 SU = 25 mm. (SU: System Unit.)
Available space 83 SU
Door opening width 500 mm
Distance between rack rails and door 47 mm
