Jirous JRMD-900 10/11 | Parabolic antenna | 10.1 – 11.7GHz, 37d
Jirous JRMD-900 10/11 | Parabolic antenna | 10.1 – 11.7GHz, 37dBi, dedicated for Mimosa B11

Jirous JRMD-900 10/11 | Parabolic antenna | 10.1 – 11.7GHz, 37dBi, dedicated for Mimosa B11

CODE: JIROUS JRMD-900-10/11
523,69 GBP with VAT
OUT OF STOCK
Antenna frequency: 10 GHz - 12 GHz
Antenna type: Directional
Energy gain: >31 dBi
Front-to-back ratio: 55 dB
more SHOW MORE PARAMETERS

ABOUT PRODUCT

Jirous antenna JRMD-900-10/11 Parabolic antenna for MIMOSA B11

Parabolic dual-polarized antenna with 37dBi gain is designed to work with Mimosa B11 radio in 10 GHz band. The antenna has high separation between 57dB polarizations. We can avoid many interference and noise from other transmissions, thanks to narrow main beam (2.3°).

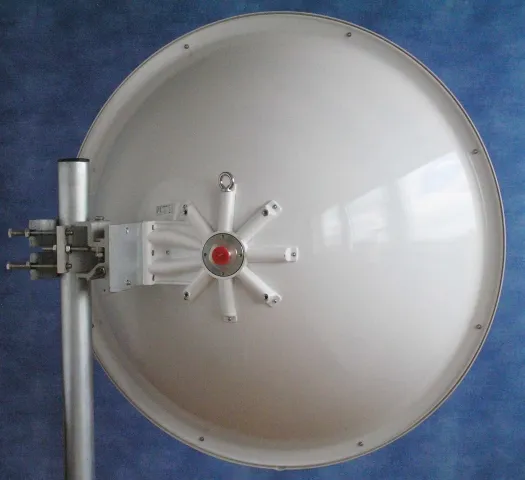

The antenna has a solid handle for precise adjustment in both directions. Ready to mount on the right and left side. Recommended maximum wind speed 140 km/h.

Energy gain:

Low frequency: 36.5 ± 1 dBi
High frequency: 37 ± 1 dBi

SPECIFICATION

Features / filters
Antenna frequency 10 GHz - 12 GHz
Antenna type Directional
Energy gain >31 dBi
Front-to-back ratio 55 dB
Polarization Double linear

SUPPORT

Downloadable

Datasheet Download

FAQ

With which radio should I connect the JIROUS JRMD-400-10/11?

JIROUS JRMD-400-10/11 antenna is adapted to work with Mimosa B11 radio.

What is a WiFi antenna?

A wifi antenna (parabolic antenna) is a device that converts electromagnetic waves into an electrical signal or vice versa. The antenna can be used to improve signal quality and increase data transmission speed.
