MikroTik CSS610-1GI-7R-2S+OUT | Switch | netPower, 8x RJ45 1000
MikroTik CSS610-1GI-7R-2S+OUT | Switch | netPower, 8x RJ45 1000Mb/s PoE, 2x SFP+

MikroTik CSS610-1GI-7R-2S+OUT | Switch | netPower, 8x RJ45 1000Mb/s PoE, 2x SFP+

CODE: CSS610-1GI-7R-2S+OUT
90,60 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h

ABOUT PRODUCT

MikroTik presents netPower Lite 7R - External PoE reverse switch

With the netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is part of our GPEN concept - it is designed to provide the speed and versatility of fiber optic networking while taking advantage of the benefits of Ethernet. It's an easy to implement, low-cost way for any ISP to deliver Internet to individual homes.

The power supply is NOT included in the product - it must be purchased separately.

Features MicroTik CSS610-1GI-7R-2S+OUT

  • Switch for outdoor use
  • 8 Gigabit ports
  • 2 ports SFP+
  • 7 Reverse PoE ports
  • SwitchOS operating system
  • Power supply via Passive PoE, DC jack and 2-pin terminal

Many power options

Thanks to this switch you won't have to worry about power problems because there are many options. netPower Lite 7R has 7 PoE reversible ports. Depending on your configuration, netPower can draw the necessary power from even one client! The Ethernet 8 port can power other PoE-capable devices with the same voltage that is fed to the device. There is also a DC socket and a 2-pin terminal for alternative power supply.

CSS610-1GI-7R-2S+OUT

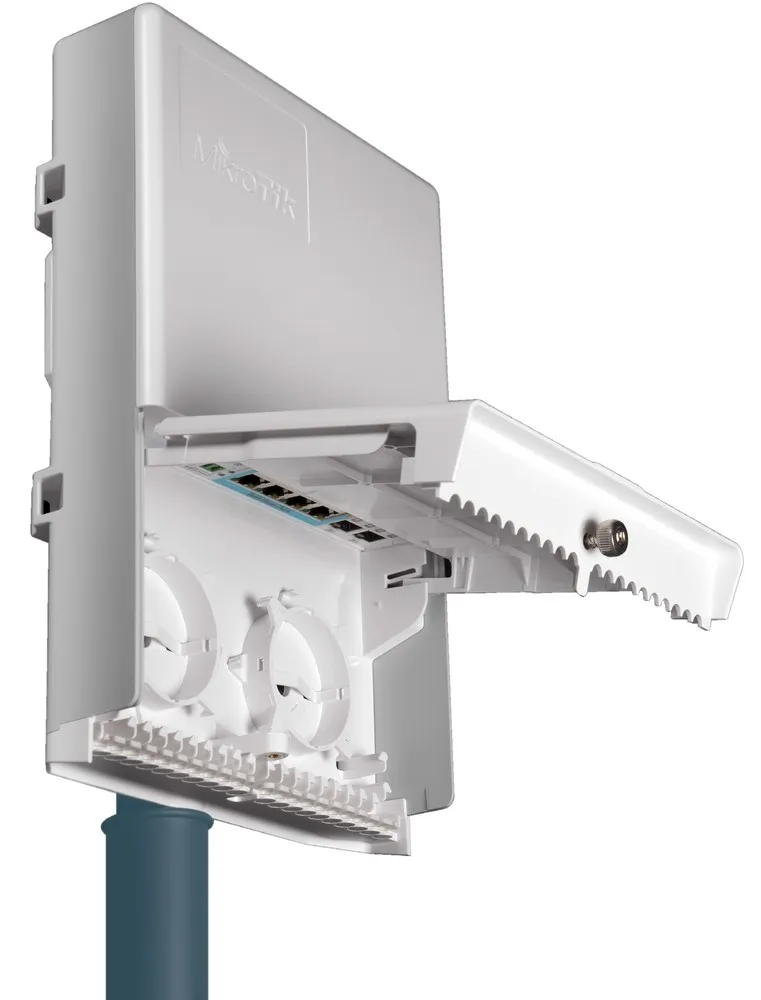

Powerful switch ideal for outdoor use

The external enclosure allows the switch to be installed in all types of environments - from humid attics to elevator shafts and various poles with clamps. The netPower Lite 7R has a non-blocking capacity of 28 Gbps, a switching capacity of 56 Gbps and a transfer rate of 41.7 Mpps.

NETPOWER LITE 7R

SwitchOS operating system

SwOS is an operating system designed specifically for managing MicroTik switches products.

SwOS is configurable from a web browser. It provides all the basic functions of a managed switch, and in addition: it allows you to manage port forwarding, control transmission storms, use MAC filter, configure VLANs, mirror traffic, apply bandwidth restrictions, and even adjust some MAC and IP header fields.

SPECIFICATION

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 8x [10/100/1000M (RJ45)] , 2x [10G (SFP+)] ,
Number of PoE ports 8x [Passive PoE 24V (1G)]
Type of case Plastic

Technical data
Dimensions 304 x 212 x 71 mm
Operating system SwitchOS
Internal memory 64 KB
Type of memory FLASH
Tested ambient temperature -40°C to 70°C
MTBF About 200 000 hours at 25st C
Power supply
PoE input Passive PoE
Input voltage PoE 12-57 V
Number of power inputs 3 (DC jack, 2-pin terminal, PoE-IN)
DC jack voltage 12-57 V
Voltage 2-pin terminal 12-57 V
Max. energy consumption 29 W
Cooling Passive
PoE output
Port for PoE output Ether8
Output type PoE600 mA Passive PoE
Max. output intensity (input 600 mA
Max. output intensity (input > 30 V) 450 mA
Ethernet
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 1G Ethernet ports with PoE out 1
Fiber
Ports SFP+ 2
Certificates and approvals
Certificates CE, EAC, ROHS
