MikroTik GPEN21 | PoE Injector | 2x RJ45 1000Mb/s 1x SFP 1Gb/s
MikroTik GPEN21 | PoE Injector | 2x RJ45 1000Mb/s 1x SFP 1Gb/s

MikroTik GPEN21 | PoE Injector | 2x RJ45 1000Mb/s 1x SFP 1Gb/s

CODE: GPEN21
19,57 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h

ABOUT PRODUCT

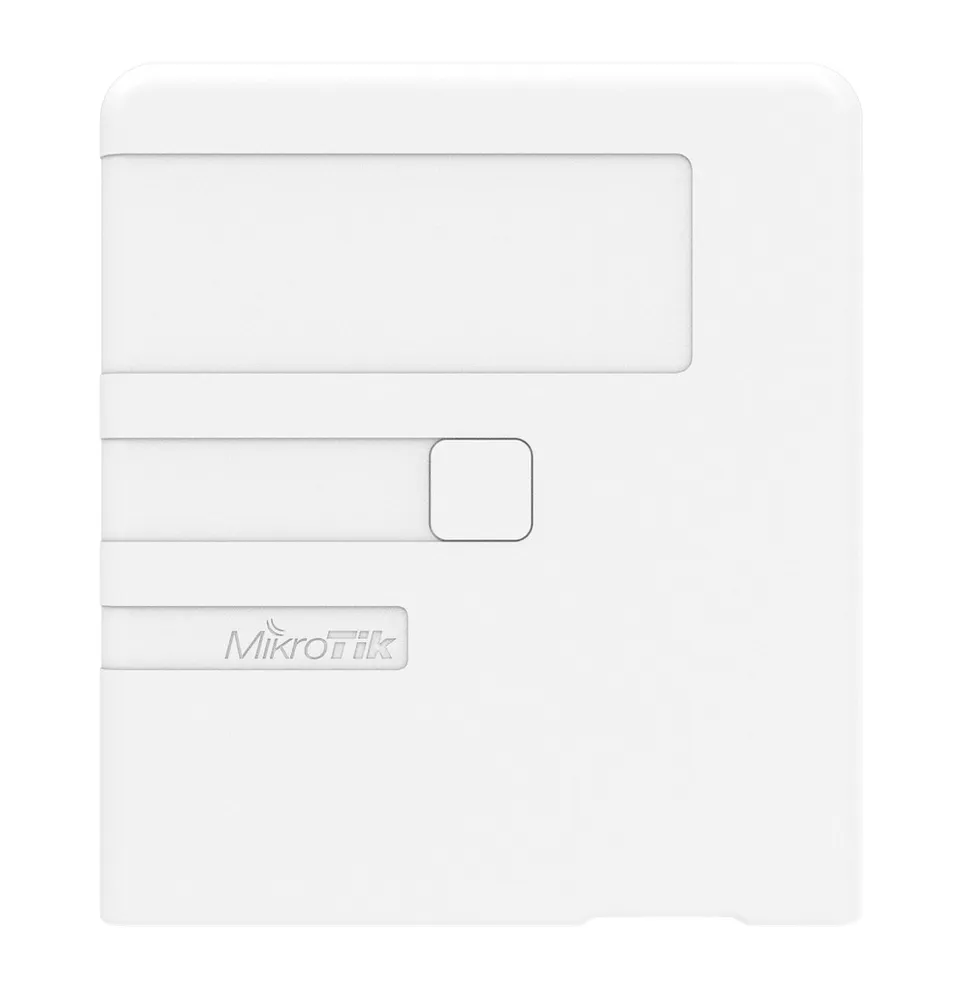

GPEN21 PoE MicroTik Injector

The GPEN21 PoE MicroTik PoE Injector is an intelligent PoE injector with two Gigabit Ethernet ports and an SFP slot. The device performs its function as a functionally complex repeater. GPEN21 is a series of GPEN (Gigabit Passive Ethernet Network) devices characterized by an easy to implement solution in the Ethernet network structure.

The GPEN21 PoE Injector microTik has mechanisms such as PoE power supply to the uplink device, VLAN, SNMP or Basic Traffic Shaping support, network interface monitoring and management. It allows to power the CPE device, which is located on the roof in a wireless way and to use the equipment as an external power supply for the switch and also as a subscriber box.

GPEN21 MICROTIK

GPEN21 PoE MicroTik Injector - Basic parameters

  • Two Ethernet (Gigabit) 10/100/1000 Mbps ports.

  • One SFP port.

  • PoE output.

  • Operating temperature of the device: From -20 to 70 degrees C.

  • The kit has no power supply.

  • The GPEN21 PoE Injector is equipped with a housing for wall mounting.
  • SPECIFICATION

    Technical data:
    MTBF About 100,000 hours at 25°C
    Tested ambient temperature -20 ° C to 70 ° C
    Power supply
    PoE input 802.3af / at
    PoE at the input voltage 12-57 V
    Number of DC inputs 2 (DC socket, PoE-IN)
    DC socket input voltage 12-57 V
    Maximum energy consumption 30 W.
    Maximum energy consumption without annexes 3 W.
    Number of fans Passive
    PoE output
    PoE Output Ports Ether2
    PoE output Passive PoE up to 57V
    Maximum output per port (input <30 V) 850 mA
    Maximum output per port (input &gt; 30 V) 625 mA
    Maximum output (A) 850 mA
    Ethernet
    10/100/1000 Ethernet ports 2
    Number of 1G Ethernet ports with PoE output 1
