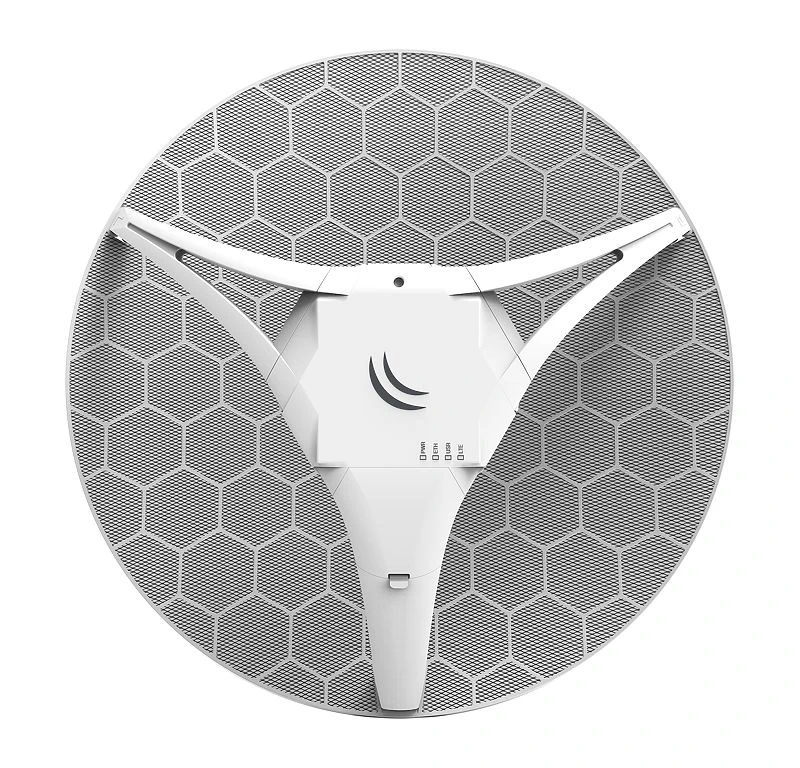

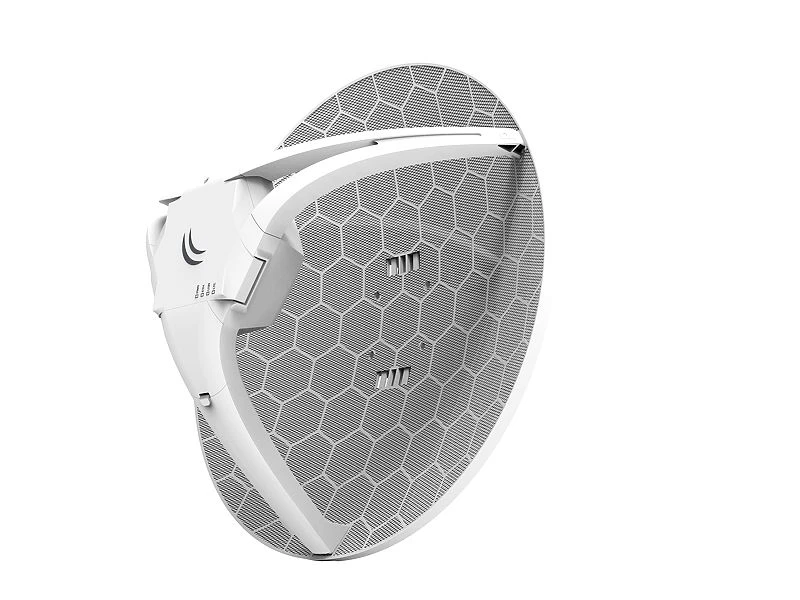

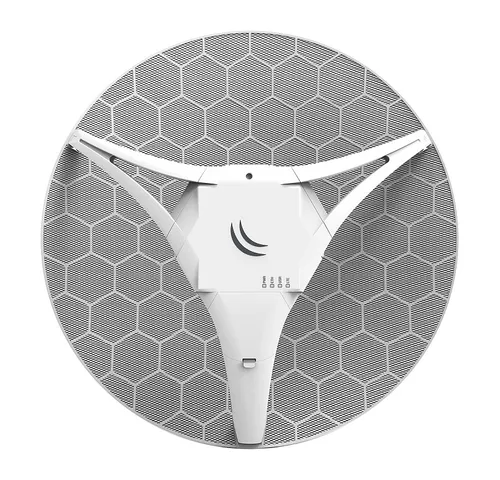

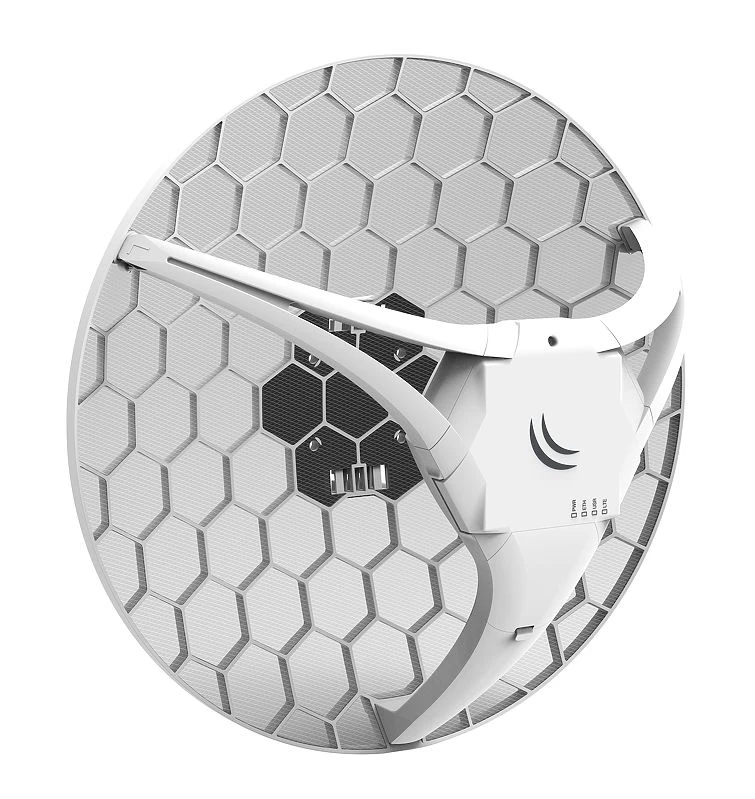

MikroTik RouterBoard LHG LTE6 kit is a new model from the LHG MikroTik series adapted for 2G, 3G and LTE networks (cat. 6). LHG LTE6 kit is a set consisting of a radio integrated with an antenna with energy gain 17 dBi. Mount it on the outside, on a pole, mast or any high construction and connect even where mobile phones fail. Due to the large size of the high gain antenna, the LHG LTE6 set can connect to mobile towers in extremely rural locations, giving you the ability to provide last mile Internet access where nothing else is available.
The new LHG LTE6 kit is equipped with a CAT6 LTE modem, which allows aggregation of operators and allows the device to use multiple bands simultaneously. This is a great advantage when there are many LTE users in the area. This provides better response in a crowded environment and greater efficiency in case of weaker signal situations in the countryside.
LHG routerBoard is equipped with one SIM slot, QCA9531 processor with 650 MHz clock, and 64 MB memory RAM. Maximum theoretical throughput (in LTE cat. 6) is 300 Mb/s when downloading data and 50 Mb/s when sending data. The kit includes the necessary mounting accessories and a power supply with a PoE injector. The device has a RouterOS system with Level 3 license.
|Features / filters|
|LTE category||Cat.6 (300Mb/s Download, 50Mb/s Upload)|
|Number of LAN ports||1x 10/100BaseTX (RJ45)|
|Wireless network standards||HSPA+|
|Additional connectors / interfaces||SIM|
|Antenna gain||11dBi - 20dBi|
|LTE bands||B1 (2100MHz), B2 (1900MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B5 (850 MHz), B12 (700MHz), B17 (700MHz), B25 (1900MHz), B26 (850MHz),|
|Type of device power supply||PoE 802.3af/at, Passive PoE,|
|Basic technical parameters:|
|Product code||RBLHGR and R11e-LTE6|
|Number of processor cores||1x|
|Nominal processor frequency||650 MHz|
|Size of RAM||64 MB|
|Storage size||16 MB|
|Type of storage||FLASH|
|Tested ambient temperature||From -30 ° C to 60 ° C|
|Number of SIM sockets||1x modem (Micro SIM)|
|SFP port||No data|
|PoE at the input Voltage||12–57 V.|
|Number of DC inputs||1 (PoE-IN)|
|Maximum energy consumption||6 W.|
|Ethernet ports||1 fast Ethernet 10/100 Mb/s port|
|Energy gain of the antenna||17 dBi|
|Width of the main beam||25°|
|Category 2G||Class 12|
|Category 3G||R7 (link down 21 Mb / s, link up 5.76 Mb / s) / R8 (link down 42.2 Mb / s, link up 5.76 Mb / s)|
|LTE category||6 (sending link 300 Mb / s, sending link 50 Mb / s)|
|LTE FDD bands||1 (2100 MHz) / 2 (1900 MHz) / 3 (1800 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 5 (850 MHz) / 12 (700 MHz) / 17 (700 MHz) / 25 (1900 MHz) / 26 (850 MHz)|
|LTE TDD bands||38 (2600 MHz) / 40 (2300 MHz) / 39 (1900 MHz) / 41n (2500 MHz)|
|2G teams||2 (1900 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)|
|3G bands||1 (2100 MHz) / 2 (1900 MHz) / 5 (850 MHz) / 8 (900 MHz)|
|Set composition||LHG LTE6, 24V power supply, 0.38A, PoE injector, 2 metal clamps, K-LHG assembly kit|
PoE allows you to use a single cable for power and data transmission, saving you money on purchasing and dragging cables for network devices and VoiP phones.
MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
Power supply PoE 12 - 57 V DC (passive or 802.3af/at)
