MikroTik mANT 19s | Sector antena | MTAS-5G-19D120, 5GHz, 19dBi
MikroTik mANT 19s | Sector antena | MTAS-5G-19D120, 5GHz, 19dBi

MikroTik mANT 19s | Sector antena | MTAS-5G-19D120, 5GHz, 19dBi

CODE: MTAS-5G-19D120 / EAN: 4752224002402
69,51 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Antenna frequency: 5 GHz
Antenna type: Sector
Energy gain: 10dBi - 20dBi
Application: Outdoor
more SHOW MORE PARAMETERS

ABOUT PRODUCT

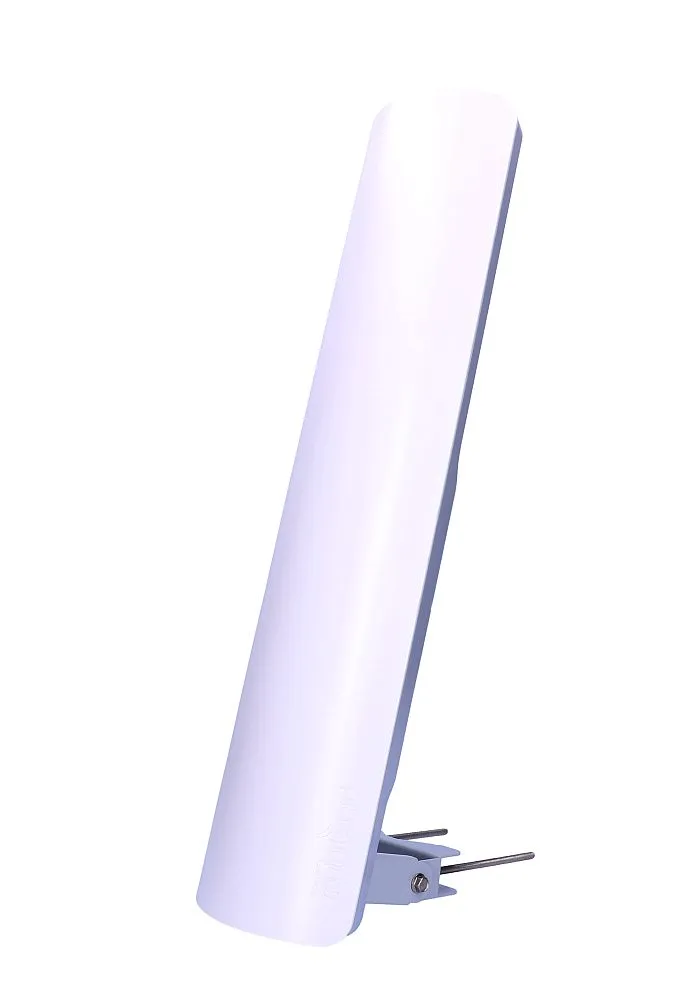

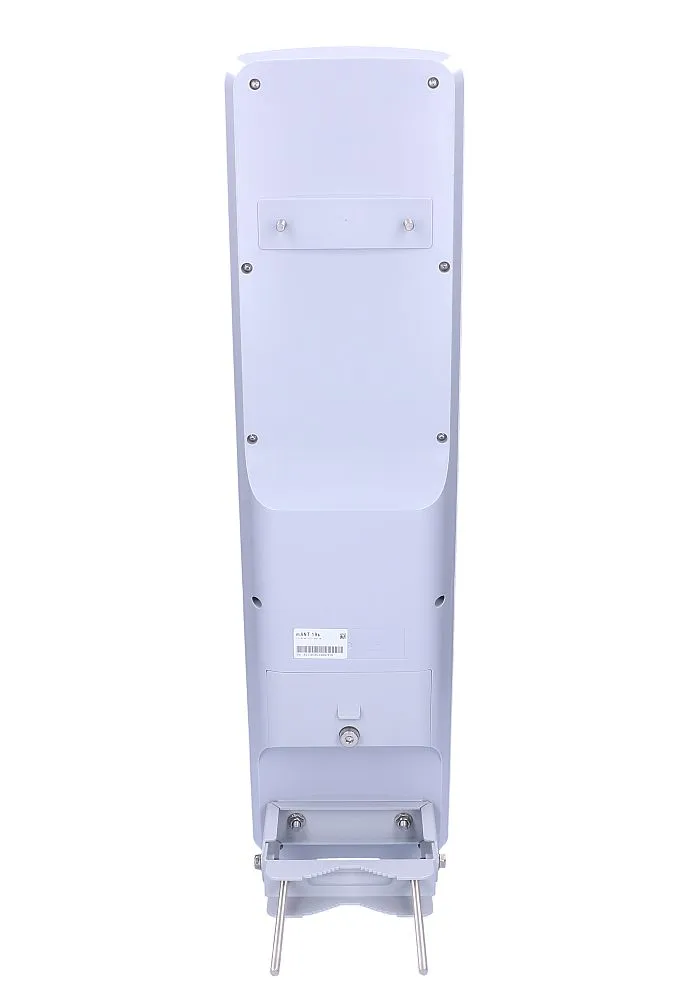

MicroTik mANT 19s

Mikrotik MTAS-5G-19D120 Mant 19s is a sector antenna cooperating with Mikrotik CPE BaseBox, NetBox, NetMetal or other wireless device for external use with RP-SMA (rpsma connectors).

MicroTik mANT 19s

Dual polarity with 19dBi profit

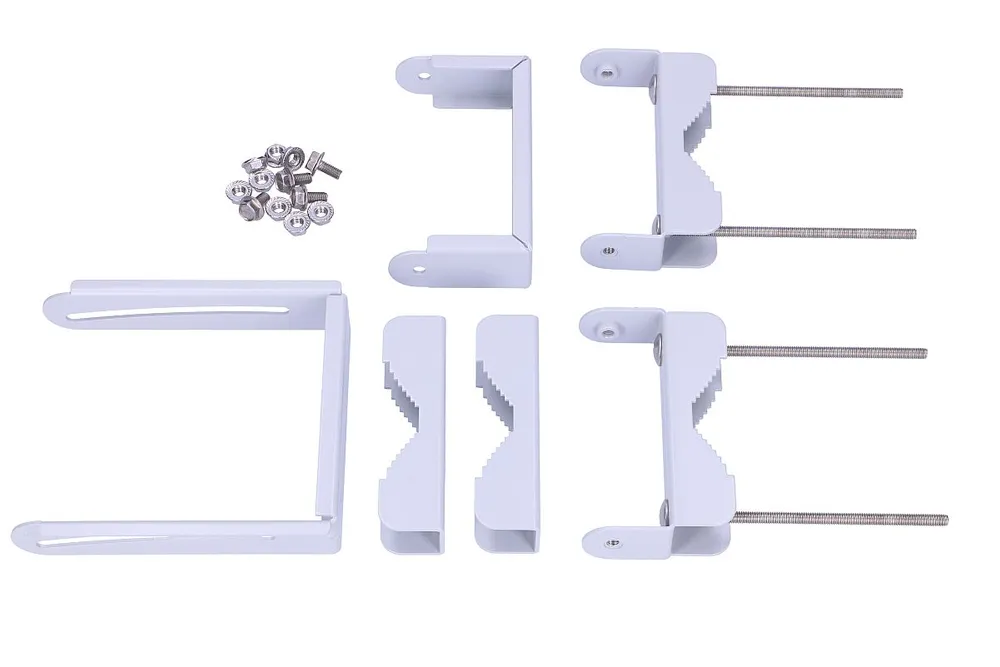

The antenna has a gain of 19dBi (degree 19dbi) and double polarity, beam width 120 degrees and has two RP-SMA connectors. The model operates in 5.17 - 5.825 GHz band (mant 19s 5ghz). Pole mounting kit included.

MicroTik mANT 19s

The most important features:

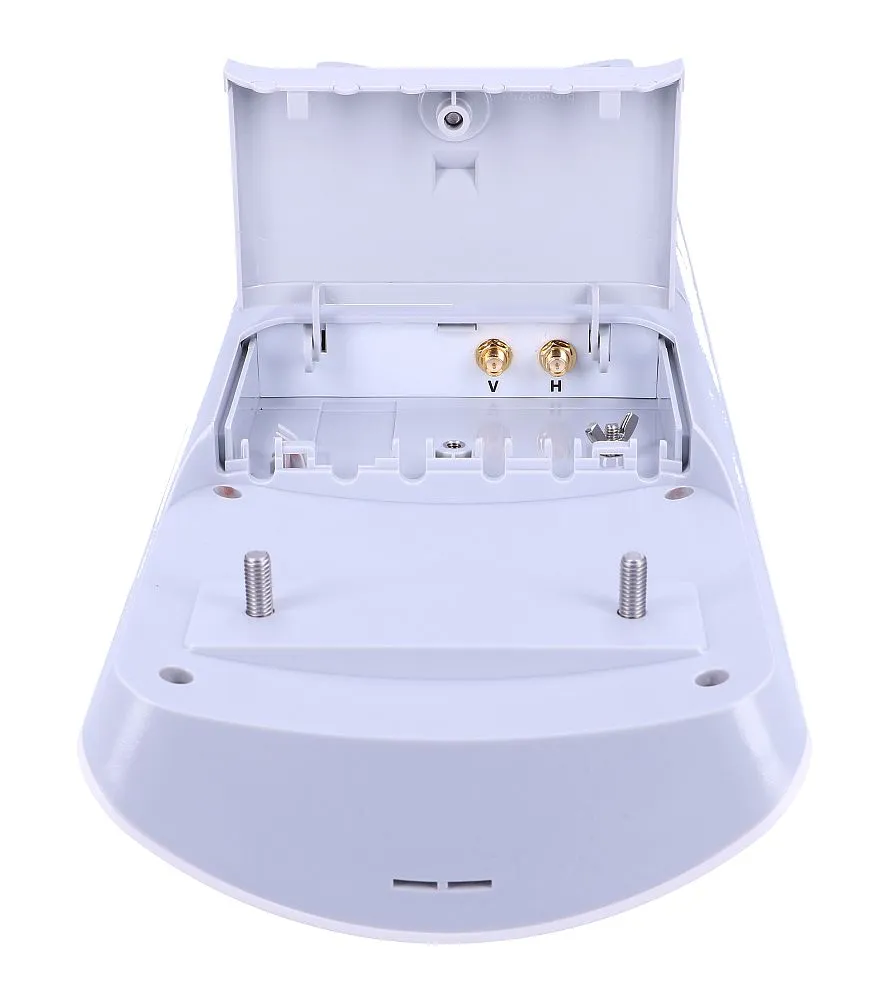

  • Connector dose 2 x RP-SMA
  • Vertical and vertical polarization (dual polarization)
  • Maximum antenna gain level 19dBi
  • Beam width 120 degrees
MicroTik mANT 19s

SPECIFICATION

Features / filters
Antenna frequency 5 GHz
Antenna type Sector
Energy gain 10dBi - 20dBi
Application Outdoor
Connector type 2x RP-SMA
Cross polarization isolation >30 dB
Front-to-back ratio 30 dB
Horizontal beamwidth 120°
Polarization Double polarization (horizontal and vertical)
Port-to-Port isolation >40 dB
VSWR 1.8:1

Basic technical parameters:
Product code MTAS-5G-19D120
Beam width 120 degrees (azimuth) 5 degrees (height)
The link 2x RP-SMA
Cross-polarity > 30 dB
Diameter x depth 152 x 598 x 78 mm
Frequency range 5.17 - 5.825 GHz
Forward to back ratio > 30 dB
Polarisation Vertical and horizontal (2x2 despite dual polarization)
Port to port isolation > 40 dB min
VSWR 1.43 type, max. 1.8
Weight 1270 g
Horizontal radiation angle 120°
Vertical radiation angle

SUPPORT

Downloads:

Brochure (ENG) Download
Installation instructions (ENG) Download

FAQ

What is the SMA connector for ?

SMA connector - coaxial connector used to connect devices using coaxial cables and transmitting high frequency signals.

How does a directional antenna work ?

It is an antenna that radiates almost all power, in one distinguished direction.
