MikroTik mANTBox 15s | CPE | RB921GS-5HPacD-15S, 5GHz, 1x RJ45
MikroTik mANTBox 15s | CPE | RB921GS-5HPacD-15S, 5GHz, 1x RJ45 1000Mb/s, 1x SFP, 15dBi

MikroTik mANTBox 15s | CPE | RB921GS-5HPacD-15S, 5GHz, 1x RJ45 1000Mb/s, 1x SFP, 15dBi

CODE: RB921GS-5HPACD-15S / EAN: 4752224000835
161,54 USD with VAT
OUT OF STOCK
Maximum wireless transmission speed: 867 Mb/s
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)1x SFP (1,25G)
Operating frequency: 5 GHz
more SHOW MORE PARAMETERS

ABOUT PRODUCT

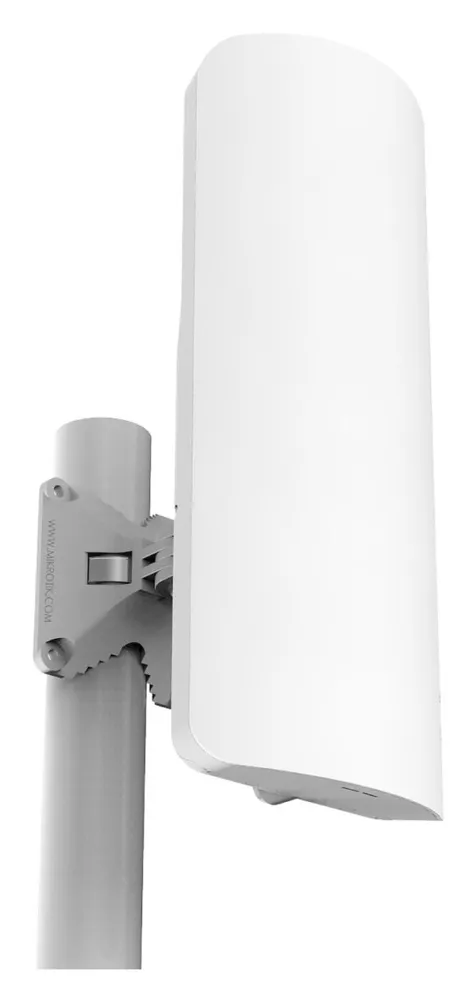

MicroTik mANTBox 15s

MANTBox is based on the new sector antennas mANT, but also has a built-in wireless router. Powered by the RB921 device, the mANTBox is ready to use with everything that is included. The device uses a high-frequency 720MHz processor, and has a gigabit Ethernet and SFP port. MicroTik mANTBox 15s has a built-in 802.11 ac/a/n wireless device with an output power up to 31dBm. The device is powered by a 24 V power supply (included) or PoE.

MicroTik mANTBox 15s

Mega-compatible handle

The mANTBox 15S is compatible with the SXT type handle, which enables it to be used with the robust and adjustable QuickMount system. The antenna is mounted using the QuickMOUNT PRO holder, which is included in the set.

MicroTik mANTBox 15s

The most important features:

  • Compliance with 802.11ac standard
  • Output power 31 dBm
  • Energy gain 15 dBi
  • 24 V power supply or PoE power supply
  • Operation in the 5 GHz band

SPECIFICATION

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Maximum wireless transmission speed 867 Mb/s
Number of LAN ports 1x 10/100/1000BaseTX (RJ45), 1x SFP (1,25G),
Operating frequency 5 GHz
Wireless network standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n,
Antenna gain 11dBi - 20dBi
CPU frequency 720 MHz
Device type Base station
RAM memory 128MB
Type of device power supply Passive PoE, Power supply,

Basic technical parameters:
Product code RB921GS-5HPacD-15S
CPU QCA9557
Number of processor cores 1x
Nominal processor frequency 720 MHz
Dimensions 140 x 348 x 82 mm
Licence level 4
Operating system RouterOS
Size of RAM 128 MB
Storage size 128 MB
Type of storage NAND
Tested ambient temperature From -40 ° C to 70 ° C
PoE in Passive PoE
PoE at the input Voltage 12–28 V.
Number of DC inputs 2 (DC socket, PoE-IN)
DC socket input voltage 9–30 V.
Maximum energy consumption 13 W.
Alternating current velocity AC1600
5 GHz wireless transmission speed Max 867 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz wireless standards 802.11a/n/ac
dBi antenna gain for 5 GHz 15dBi
5 GHz wireless model QCA9892
5 GHz wireless generation Wi-Fi 5
10/100/1000 Ethernet ports 1x
Ports SFP 1x
PCB temperature monitor Yes
Voltage monitor Yes
Case law " RED, FCC, IC, EAC, ROHS

SUPPORT

Downloads

Brochure Download
Short guide Download

FAQ

What functions does RouterOS have?

Firewall, Routing, MPLS, VPN, Wireless, DHCP, Hotspot, QoS, Proxy and more.

Maximum energy consumption for the MicroTik mANTBox 15s ?

13 W.

What is the maximum wireless transmission speed for MikroTik mANTBox 15s ?

867 Mb/s
