MikroTik SXT Lite 2 | CPE | RBSXT2nDr2, 2,4GHz, 1x RJ45 100Mb/s
MikroTik SXT Lite 2 | CPE | RBSXT2nDr2, 2,4GHz, 1x RJ45 100Mb/s

MikroTik SXT Lite 2 | CPE | RBSXT2nDr2, 2,4GHz, 1x RJ45 100Mb/s

CODE: RBSXT2NDR2 / EAN: 5902560365221
34,42 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Maximum wireless transmission speed: 300 Mb/s
Number of LAN ports: 1x 10/100BaseTX (RJ45)
Operating frequency: 2.4 GHz
more SHOW MORE PARAMETERS

ABOUT PRODUCT

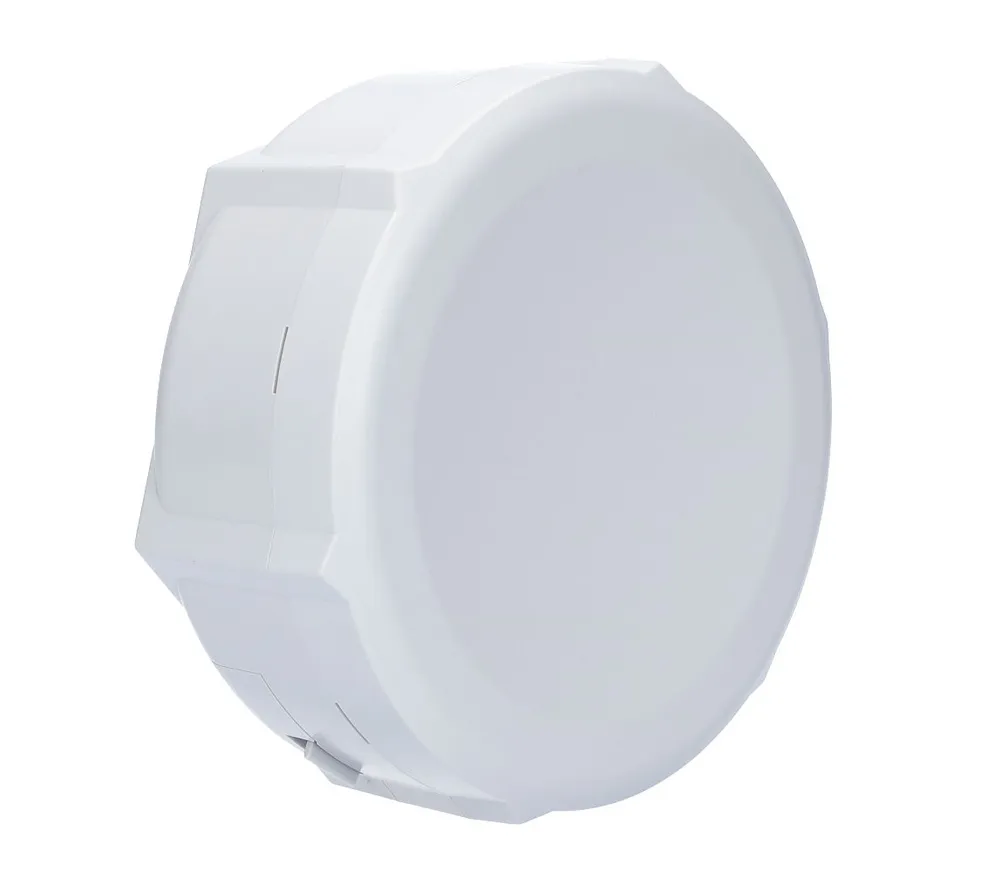

MicroTik SXT Lite 2

SXT Lite 2 is a device with an excellent price/performance ratio. SXT is a complete CPE type device working in 802.11n 2x2 I standard in 2.4GHz frequency, equipped with a 10dBi gain antenna. High-performance processor with 600MHz and 64MB of RAM allows for efficient and failure-free operation. The device works on RouterOS L3 software.

MicroTik SXT Lite 2

Two types of connections

SXT Lite2 equipped with Level 3 License allows to use RouterBoard SXT as a client station (CPE) or to realize the type of point-to-point connections. The platform is compatible with the MikroTik Nv2 TDMA protocol, thanks to which it can make connections with twice as much throughput as the standard 802.11n protocol. The device can be mounted on the wall using the quickMount Extra bracket.

MicroTik SXT Lite 2

The most important features:

  • PoE power supply
  • Double polarity
  • Profit 10 dBi
  • Operation in the 2.4 GHz band

SPECIFICATION

Features / filters
LAN standard Fast Ethernet 10/100Mb/s
Maximum wireless transmission speed 300 Mb/s
Number of LAN ports 1x 10/100BaseTX (RJ45)
Operating frequency 2.4 GHz
Wireless network standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Antenna gain Under 10dbi
CPU frequency 600 MHz
Device type Client device
RAM memory 64MB
Type of device power supply Passive PoE

Basic technical parameters:
Product code RBSXT2nDr2
Architecture MIPSBE
CPU AR9344
Number of processor cores 1
Nominal processor frequency 600 MHz
Dimensions 140x140x56mm
Licence level 3
Operating system RouterOS
Size of RAM 64 MB
Storage size 16 MB
Type of storage FLASH
Tested ambient temperature From -40 ° C to 70 ° C
PoE in Passive PoE
PoE at the input Voltage 8-30 V.
Number of DC inputs 1 (PoE-IN)
Maximum energy consumption 6 W.
Maximum power consumption without annexes 6 W.
2.4 GHz wireless Maximum transmission speed 300 Mbit/s
Number of 2.4 GHz wireless communication chains 2
2.4 GHz wireless standards 802.11b/g/n
dBi antenna gain for 2.4 GHz 10dBi
2.4 GHz wireless model AR9344
2.4 GHz wireless generation Wi-Fi 4
Ethernet port 1x Fast Ethernet, L2MTU frame size up to 4076
Case law FCC
Additional Reset button, speaker
LEDs Power LED, Ethernet LED, signal level indicator

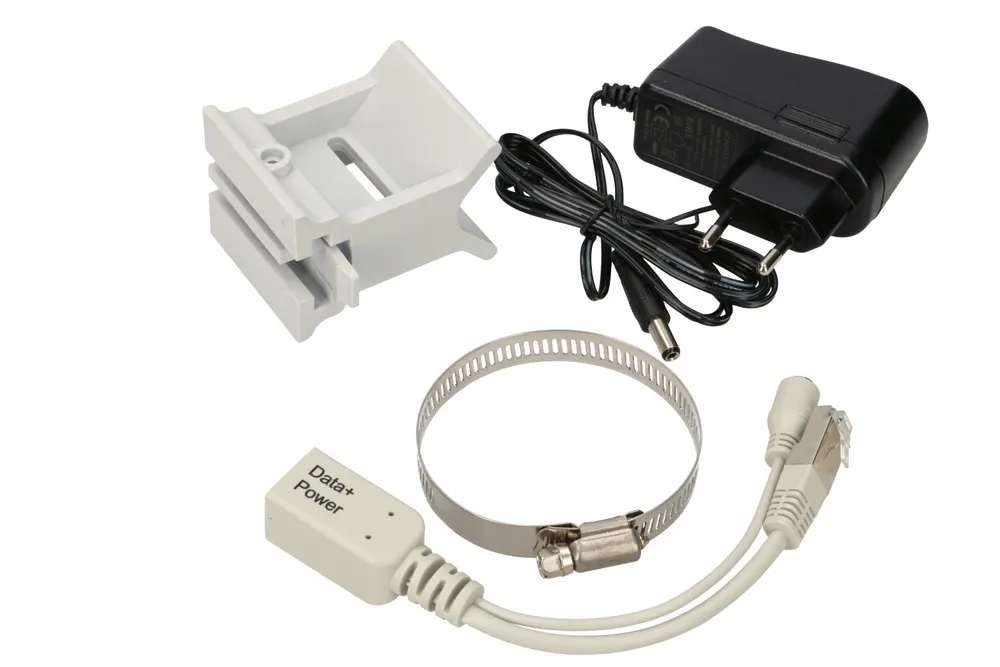

Package contents SXT-2HPND with integrated antenna, pole mount components, PoE adapter, power supply unit

SUPPORT

Downloads:

Brochure (ENG) Download
Short guide (ENG) Download

FAQ

What is an Access Point ?

Otherwise, an access point, an access point, a device that provides hosts with access to a computer network using a wireless transmission medium such as radio waves. An access point is usually a bridge that connects your wireless local network to your local network.

What is a Routerboard ?

RouterBOARD is a hardware platform from MikroTik, which is a line of routers with RouterOS operating system. Almost all models of RouterBOARD devices can be powered via Ethernet (PoE) and have a connector for external power source.

What is a MicroTik RouterOS ?

MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
