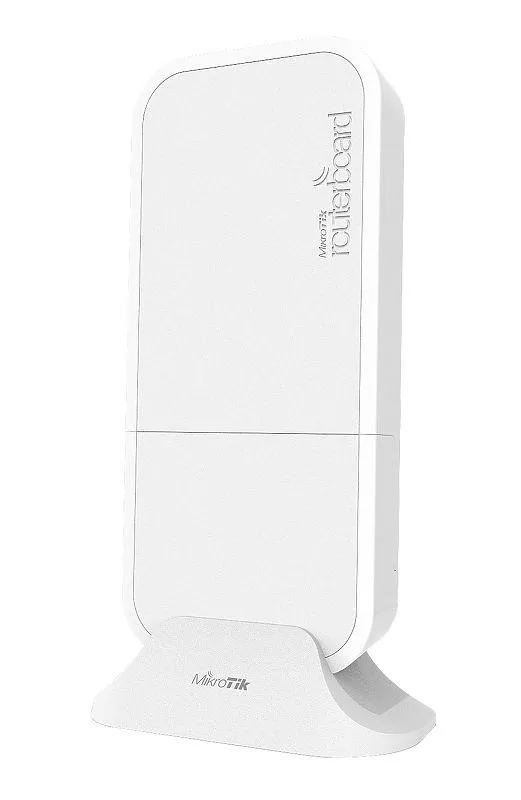

MicroTik wAP 60G is a wireless client device designed to operate in 60 GHz band, resistant to various weather conditions. It is equipped with a powerful 4-core IPQ-4019 processor with 716 MHz and 256 MB RAM. It has a Gigabit Ethernet port and offers maximum wireless 1 Gb/s. throughput. The device has an integrated antenna, the main beam width is about 60°. WAP 60G connects to the AP 60 GHz at 100m +. It allows to create a quick Point-to-Multipoint configuration at 60GHzcpe, which is not affected by the overflowing Wi-Fi spectrum.
wAP 60G is equipped with the Level 3 license of the RouterOS system. It was designed for use as a client device. wAPG-60AD can be mounted on a wall (e.g. on a building), the kit also includes a stand for placing the device . Power supply can be made via DC or PoE plug, the input voltage range is 12- 57 V DC. wAP 60g ap can also be supplied via PoE in 802.3af.at standard. A 24 V / 0.38 A power supply and a Gigabit PoE injector are included.
|Basic technical parameters:|
|Number of processor cores||4x|
|Nominal processor frequency||716 MHz|
|Dimensions||185 x 85 x 30 mm|
|Size of RAM||256 mb of frame memory|
|Storage size||16 MB|
|Type of storage||FLASH|
|Tested ambient temperature||From -40 ° C to 70 ° C|
|PoE in||802.3af / at|
|PoE at the input Voltage||11–57 V.|
|Number of DC inputs||2 (DC socket, PoE-IN)|
|DC socket input voltage||11–57 V.|
|Maximum energy consumption||5 W.|
|10/100/1000 Ethernet ports||1x Gigabit Ethernet 10/100/1000 Mbps port|
|Case law||" RED, FCC, IC, EAC, ROHS|
|Set composition||The device
- Other accessories
2 cable ties (plastic)
Power supply 24 V DC / 0.38 A
Gigabit PoE injector
PoE allows you to use a single cable for power and data transmission, saving you money on purchasing and dragging cables for network devices and VoiP phones.
MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
User name is 'admin' and there is no password (press 'Enter'). To change password use '/password' command.
