Teltonika 003R-00230 | WiFi Antenna | Magnetic, 2dBi, 1,5m cabl
Teltonika 003R-00230 | WiFi Antenna | Magnetic, 2dBi, 1,5m cable, RP-SMA

Teltonika 003R-00230 | WiFi Antenna | Magnetic, 2dBi, 1,5m cable, RP-SMA

CODE: TELTONIKA WIFI 2DBI 003R-00230 / EAN: 5706998311764
5,95 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Antenna frequency: 2.4 GHz
Energy gain: <10 dBi
Connector type: RP-SMA
Polarization: Linear
more SHOW MORE PARAMETERS

ABOUT PRODUCT

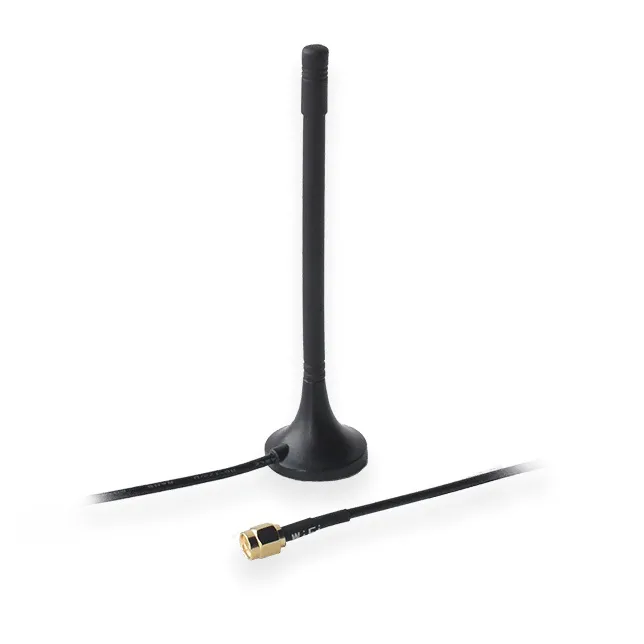

Teltonika 003R-00230 - Wi-Fi antenna with magnet

The 003R-00230 is a 2 dBi Wi-Fi antenna with RP-SMA connector. To facilitate installation, it has been equipped with a stand with a magnet and 1.5 meter long cable.

Antenna 003R-00230

SPECIFICATION

Features / filters
Antenna frequency 2.4 GHz
Energy gain <10 dBi
Connector type RP-SMA
Polarization Linear
VSWR 2:1

Technical Specification
Frequency 2400-2483.5 MHz
Polarisation Linear
Strengthening 2.0 dBi
VSWR < 2.0
Impedance 50 Ω
Cable RG174, 1500 mm
The link RP-SMA Male
Assembly method Magnet
Operating temperature -40°C to 85°C
Compliance with RoHS Directive Yes

SUPPORT

Downloads:

Teltonika Antenna 003R-00230 - ENG specification Download
