Teltonika FM36M1 | GPS Tracker | NB-IoT, LTE CAT M1 with high gain GNSS and IoT/GSM antennas, internal backup battery

Teltonika FM36M1 | GPS Tracker | NB-IoT, LTE CAT M1 with high gain GNSS and IoT/GSM antennas, internal backup battery

CODE: TELTONIKA FM36M1
84,50 GBP with VAT
OUT OF STOCK
Built-in memory: 1MB
Communication type: LTE Cat.M1GPS
Backup battery: Yes
Built-in sensors: Accelerometer
more SHOW MORE PARAMETERS

ABOUT PRODUCT

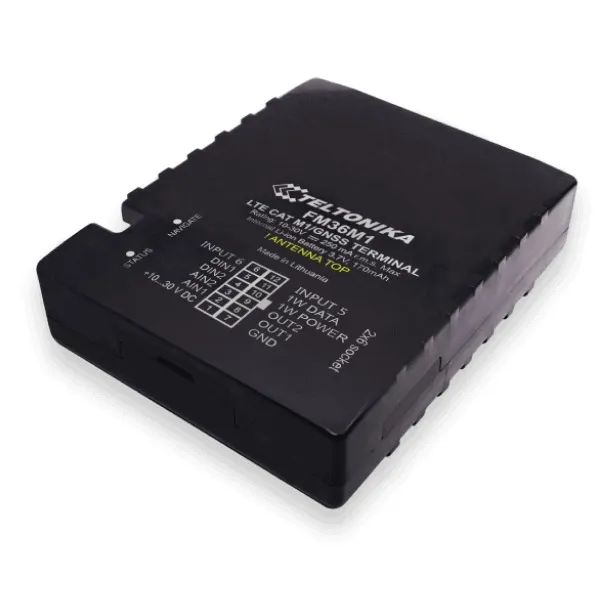

Teltonika FM36M1 - terminal for special applications

The FM36M1 is a GNSS terminal with the LTE CAT M1, NB IoT connectivity option for special applications, including devices belonging to the Internet stuff class, i.e. intelligent network devices that can communicate with each other. FM36M1 is designed for tracking small vehicles, but is also suitable for advanced applications such as logistics services, delivery services, public transport etc.

Temperature monitoring

As this terminal has an extended set of inputs/outputs and a 1-wire interface for temperature monitoring, it is ideal for refrigerated transport.

FM36M1 features

Additional functions - wide range of applications

With Teltonika CAN adapters, the FM36M1 can be used in agriculture, construction or even mining. Moreover, the FM36M1 supports LTE CAT M1 and NB IoT converters, which makes it possible to use the device with the latest and most economical technologies.

FM36M1 scheme

LTE M1/NB IoT/GSM

Technologies CAT M1 and NB IoT (a radio technology standard that allows communication between devices, the so-called Internet of things) provide a new generation of links, making IoT (Internet of things) business models more accessible, guaranteeing reliable and efficient communication. Thanks to the backward compatibility with the GSM system, the network will be even more extensive.

Internal battery

You can feel safe when the vehicle is monitored by a device with an internal battery. When the vehicle's battery is disconnected, the device remains online and sends data to a server.

Entries and exits

Thanks to configurable inputs, it is possible to monitor external events, e.g. exceeding of the water level threshold or door sensor signals. Alerts can be received remotely, via SMS or e-mail.

1-Wire®

1-Wire® protocol support allows you to identify up to 500 authorized controllers and connect a temperature sensor. iButton® or RFID® prevents unauthorized access to your vehicle fleet. Temperature sensors allow you to monitor and control the status of your cargo.

Support for CAN adapters

Additional accessories LV-CAN200, ALLCAN300 enable CAN data acquisition from any type of transport (light vehicles, trucks, buses, agricultural transport and special transport). The list of supported vehicles includes over 1800 models. Each vehicle model has detailed installation instructions with a diagram and drawing. Available RPM parameters, fuel level, vehicle mileage, etc.

FM36M1 call center diagram

SPECIFICATION

Features / filters
Built-in memory 1MB
Communication type LTE Cat.M1, GPS,
Backup battery Yes
Built-in sensors Accelerometer
IP Rating IP41
USB port 1x Mini USB
Working temperature -40°C to +85°C

Technical Specification

Module
Model TG1000, Quectel BG96
Technologies GNSS, GSM/GPRS/4G LTE CAT.M1
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Mobile network
Technology GSM/GPRS/4G LTE
LTE bands FDD-LTE: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/B19/ B20/ B26/ B28 TDD-LTE: B39 (Cat.M1 only)
GSM/GPRS bands 850/900/1800/1900MHz
Data transfer GPRS and EDGE class 12
Data handling SMS (text/data)
Power supply
Input voltage range 10-30V DC with overvoltage protection
Spare battery 170 mAh lithium-ion battery
Power consumption At 12V < 5 mA (Deep Sleep)
At 12V < 18 mA (GPS Sleep)
At 12V < 50 mA (nominal)
Interfaces
Digital Inputs 4
Digital outputs 2
Analogue inputs 2
GNSS antenna internal with high profit
GSM antenna internal with high profit
USB Mini-USB
LED signalling 2 status LEDs
SIM SIM standard
Memory 1 MB internal flash memory
Physical specification
Dimensions 77 x 62 x 19 mm
Weight 70,4 g
Working environment
Operating temperature (without battery) -40° C to +85° C
Storage temperature (without battery) -40° C to +85° C
Working humidity 5% to 95% non-condensing
Protection class IP41
Battery charging temperature 0° C to +45° C
Discharge temperature of the battery -20° C to +60° C
Battery storage temperature -20° C to +45° C for 1 month
-20° C to +35° C for 6 months
Features
Sensors Accelerometer
Sleep modes GPS Sleep, Deep Sleep
Scenarios Eco-driving, Immobilizer, overspeed, jamming, idling detection, iButton detection, driving function, Geofencing, AutoGeofencing
Configuration and firmware update FOTA, via USB cable
SMS Configuration, events, DOUT control, fault elimination
GPRS commands Configuration, DOUT control, Debug
Time synchronization GPS, NTP
Monitoring of fuel Analogue input, LVCAN200/ALLCAN300
Ignition detection Digital input 1, accelerometer, external supply voltage
Certification and approvals
Regulations CE/RED, FCC

SUPPORT

Downloads

Technical Specification - FM36M1 Download
Full instruction manual - FM36M1 Download
