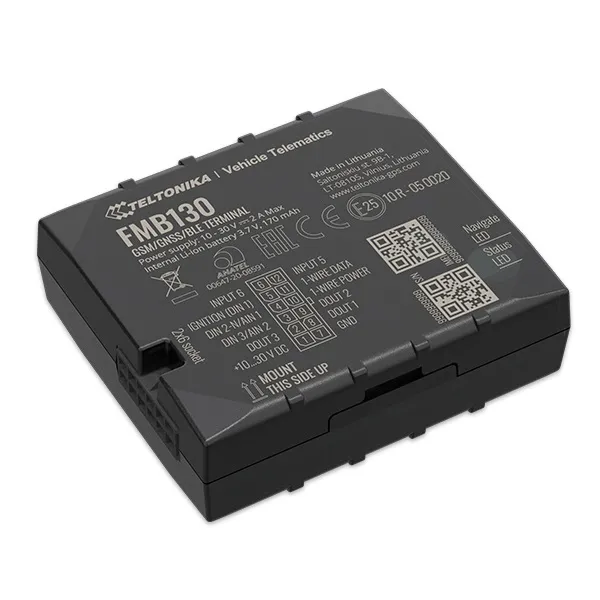

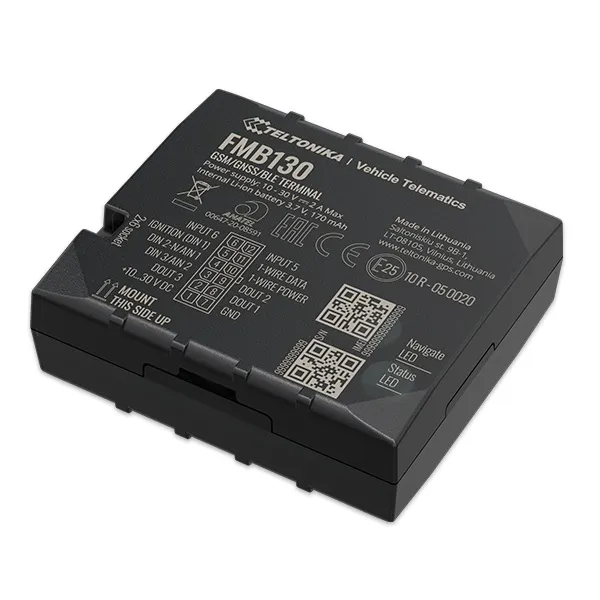

The Teltonika FMB130 is an advanced tracker with internal GNSS and GSM antennas, featuring configurable digital/analog/negative inputs/pulse inputs, three digital outputs, Bluetooth data transfer capability and a backup battery.
TheGLONASS/GPS Tracker FMB130 is the first device in Teltonika's range to feature negative input</b. This innovation saves time installing various sensors such as door sensor, alarm button, seat belt sensor and other similar sensors. The FMB130 also has the ability to connect pulse fuel sensors. Pulse fuel sensors have higher measurement accuracy. This is ideal for vehicles with high fuel consumption such as construction vehicles, agricultural vehicles, trailers and more.
|GNSS||GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS|
|Tracking sensitivity||-165 dBM|
|Accuracy||< 2.5m CEP|
|Hot start||< 1 s|
|Warm start||< 25 s|
|Cold start||< 35 s|
|2G bands||Quad-band 850 / 900 / 1800 / 1900 MHz|
|Transmission of data||GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B|
|Data support||SMS (text/data)|
|Input voltage range||10 - 30 V DC with overvoltage protection|
|Internal backup battery||Rechargeable 170 mAh Li-Ion, 3.7 V (0.63 Wh)|
|Supported peripherals||Temperature and humidity sensor, OBDII dongle, Inateck barcode scanner, support for universal BLE sensors|
|Dimensions||65 mm x 56.6 mm x 20.6 mm (L x W x H)|
|Operating temperature (without battery)||-40 °C to 85 °C|
|Storage temperature (without battery)||-40 °C to 85 °C|
|Humidity during operation||5% to 95%, non-condensing|
|Degree of protection against penetration||IP41|
|Battery charging temperature||0 °C to 45 °C|
|Battery discharge temperature||-20 °C to 60 °C|
|Battery storage temperature||-20 °C to 45 °C for 1 month
-20 °C to 35 °C for 6 months
|Negative inputs||1 (Digital input 2)|
|Pulse inputs||2 (Digital input 1, Digital input 2)|
|CAN adapter inputs||1|
|GNSS antenna||Internal high gain antenna|
|Cellular antenna||Internal high-gain antenna|
|LED indicator||2 status LEDs|
|Memory||128MB internal flash memory|
|Scenarios||Eco-driving, over-speed detection, GNSS fuel meter, DOUT control via connection, over-idling detection, Immobilizer, iButton read notification, power disconnect detection, towing detection, collision detection, automatic geofence, manual geofence, travel|
|Sleep modes||GPS sleep, Online deep sleep, Deep sleep, Ultra deep sleep|
|Configuration and firmware upgrade||FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (configuration)|
|SMS||Configuration, Events, DOUT Control, Debug|
|GPRS commands||Configuration, DOUT control, Debug|
|Time synchronization||GNSS, NITZ, NTP|
|Fuel monitoring||LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII key|
Gently remove the lower cover of the FMC130 using the plastic removal tool on both sides. Then remove the top cover.
Insert the Micro-SIM card as shown, with the PIN request option disabled. Make sure that the cut off corner of the Micro-SIM card is facing forward towards the slot. 3.
3. connect the battery to the device as shown. Place the battery in a location where it will not obstruct other components. 4.
After you have configured the device, see "Connecting to a PC (Windows)", put the top and bottom covers back on.
