Teltonika FMC001 | GPS Tracker | OBDII Plug, Plug and Play, GPS
Teltonika FMC001 | GPS Tracker | OBDII Plug, Plug and Play, GPS, LTE Cat.1, Bluetooth LE

Teltonika FMC001 | GPS Tracker | OBDII Plug, Plug and Play, GPS, LTE Cat.1, Bluetooth LE

CODE: TELTONIKA FMC00186SP01
82,62 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Communication type: 4G/LTE
Backup battery: Yes
Built-in sensors: Accelerometer
IP Rating: IP41
more SHOW MORE PARAMETERS

ABOUT PRODUCT

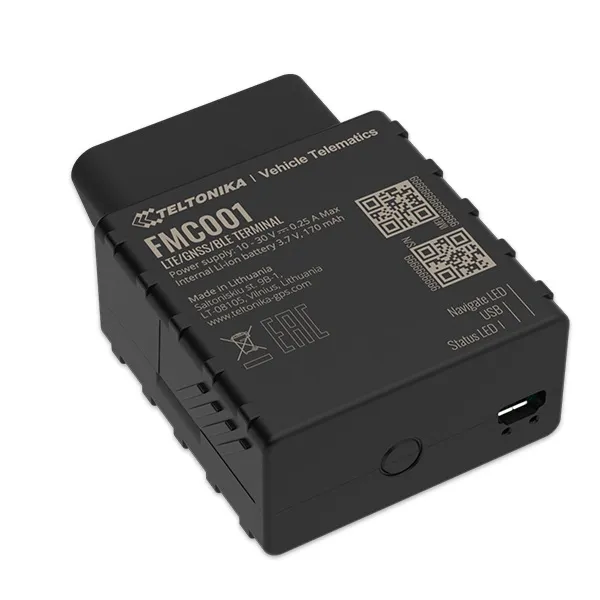

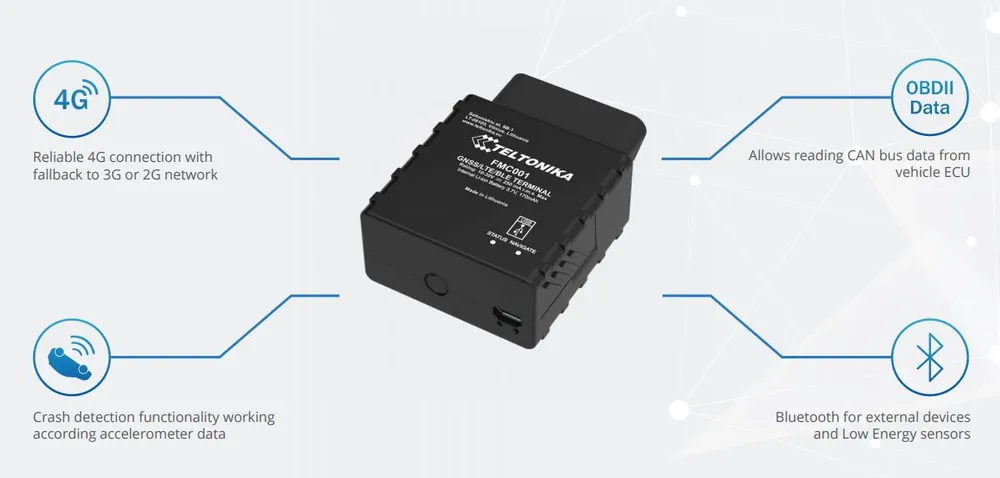

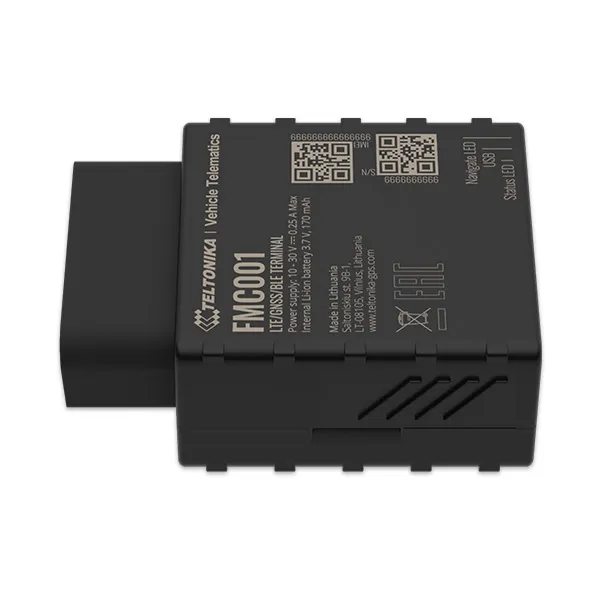

Teltonika FMC001 - GPS tracker with LTE connectivity

The FMC00 is the next step in communication technology - it is the first Plug and Track LTE OBD device with GNSS and Bluetooth connectivity. The device allows to read OBD II parameters. Trouble-free installation and data from the accelerometer are attractive solution. It is an excellent tracker for a wide range of applications - fleet management of light commercial vehicles, car rental and leasing, vehicle logging, insurance telematics (UBI) and many others. The device supports Bluetooth sensors. Software and configuration updates are done via Bluetooth.

TELTONIKA FMC001

Cases of application:

  • Management of the light vehicle fleet
  • Heavy transport
  • Insurance Telematics (UBI)
  • Rental and leasing
  • Courier services
TELTONIKA FMC001
TELTONIKA FMC001

SPECIFICATION

Features / filters
Communication type 4G/LTE
Backup battery Yes
Built-in sensors Accelerometer
IP Rating IP41
USB port None
Working temperature -40°C to +85°C

Technical specification:

Module
Name Quectel EG91-EX, Teltonika TM2500
Technology LTE(CAT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Mobile network
Technology LTE CAT1, UMTS/HSPA+ and GSM/GPRS/EDGE
Band 2G EG91-EX: GSM: B3/B8
3G bands EG91-EX: WCDMA: B1/B8
Band 4G EG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28
Transmission of data LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data handling SMS (text/data)
Power supply
Input voltage range 10 - 30 V DC with overvoltage protection
Internal backup battery 170 mAh Lithium-ion battery 3.7 V (0.63 Wh)
Bleutooth
Specification 4.0 + LE
Supported peripherals Temperature and humidity sensor, Inateck barcode scanner, support for universal BLE sensors
Physical specification
Dimensions 67,2 x 49,6 x 25 mm
Weight 63 g
OBD interface
Data K-Line, CAN data bus
Reading data Up to 32 vehicle on-board parameters, supported OBD protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)

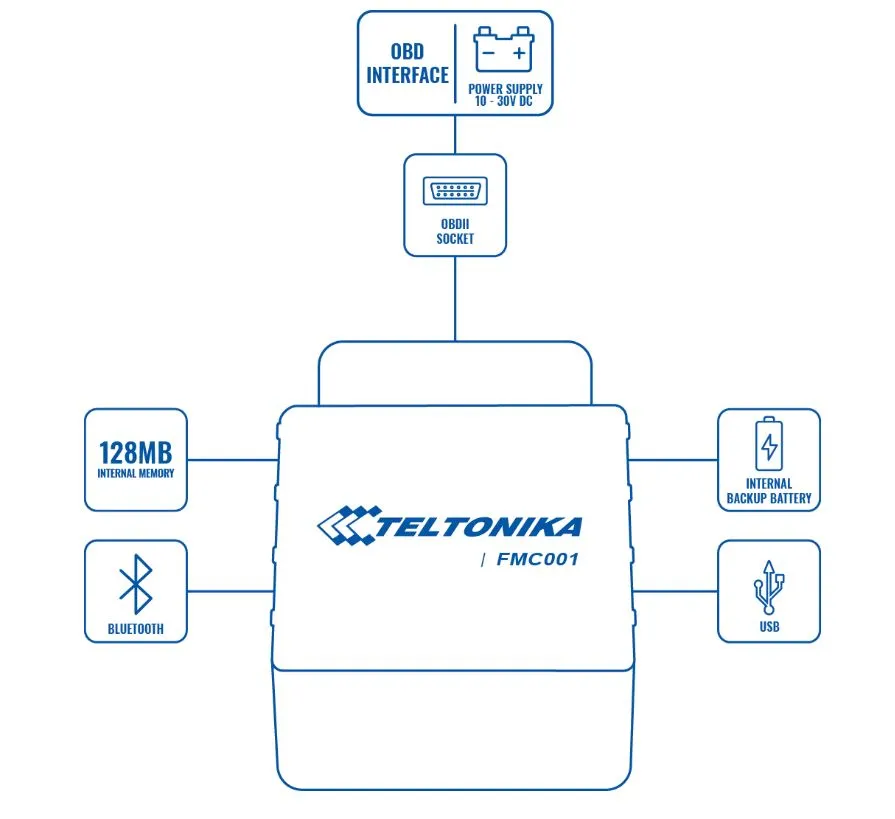

Interfaces
Connection OBDII socket
GNSS antenna Internal with high profit
Cellular antenna Internal with high profit
USB 2.0 Micro-USB
LED indicator 2 status LEDs
SIM Micro-SIM
Memory 128MB internal flash memory
Working environment
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Working humidity 5% to 95% non-condensing
Degree of protection IP41
Battery charging temperature 0 °C to +45 °C
Discharge temperature of the battery -20 °C to +60 °C
Storage temperature of the battery -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Functions
Sensors Accelerometer
Scenarios Eco-driving, overspeed detection, GNSS fuel meter, overspeed detection, plug disconnection detection, towing detection, collision detection, automatic geofensing, manual geofensing, travel.
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time synchronization GPS, NITZ, NTP
Monitoring of fuel OBD II
Ignition detection Accelerometer, external supply voltage, motor speed

SUPPORT

Downloads:

FMC001 teltonika - Technical Specification - ENG Download
FMC001 Teltonika FMC001 - Quick Guide - ENG Download
