Teltonika RUT950 | Industrial 4G LTE router | Cat.4, WiFi, Dual Sim, 1x WAN, 3X LAN, RUT950 U022C0

Teltonika RUT950 | Industrial 4G LTE router | Cat.4, WiFi, Dual Sim, 1x WAN, 3X LAN, RUT950 U022C0

CODE: TELTONIKA RUT950 / EAN: 4779027311289
126,75 GBP without VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Communication type: 4G/LTEWi-Fi
Maximum wireless transmission speed: 300 Mb/s
Number of LAN ports: 4x 10/100BaseTX (RJ45)
more SHOW MORE PARAMETERS

ABOUT PRODUCT

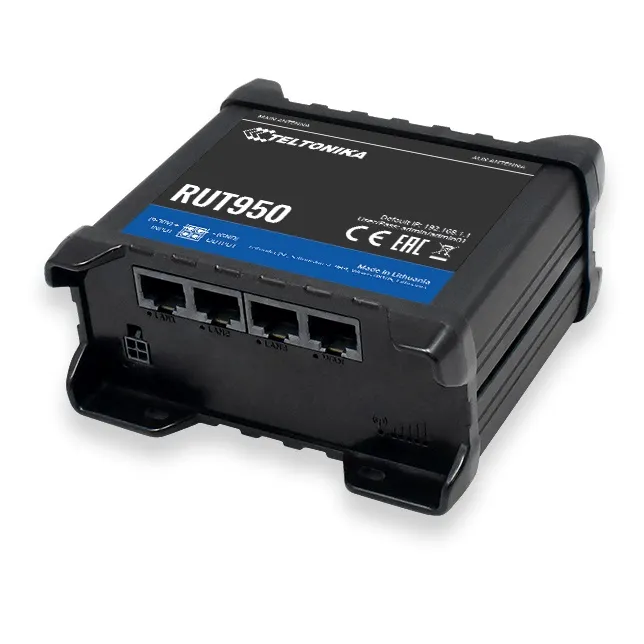

Teltonika RUT950 - professional industrial router

Teltonika RUT950 is a professional industrial 4G LTE router with Wi-Fi connectivity for IoT applications. It works with 2.4 GHz Wi-Fi and IEEE 802.11b/g/n standard. It has 4 Ethernet ports. LTE modem offers bandwidth up to 100 Mbps in downlink range and up to 50 Mbps in uplink range. The router is durable, protected by aluminum casing. LTE router provides high performance mobile communication in harsh environments and wide temperature range.

Management through the IASB

The RMS remote management platform (Teltonika remote management system) enables M2M and IoT network applications. Teltonika's industrial router is a perfect match for modern machines currently working in factories.

Rich set of interfaces

The router is equipped with four 100Mbps Ethernet ports, two external SIM card slots, digital inputs/outputs and LEDs to display the signal power status. External SMA antenna connectors allow to connect appropriate antennas.

RUT950 is a professional LTE cat4 router based on RutOS, a unified operating system for all Teltonika routers designed for the most demanding network applications. To ensure continuity of network operation, use Dual-SIM and 4G failover functions.

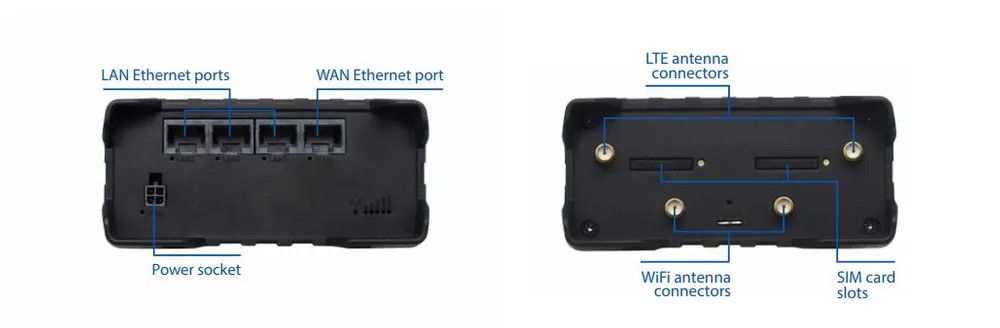

RUT950 interfaces

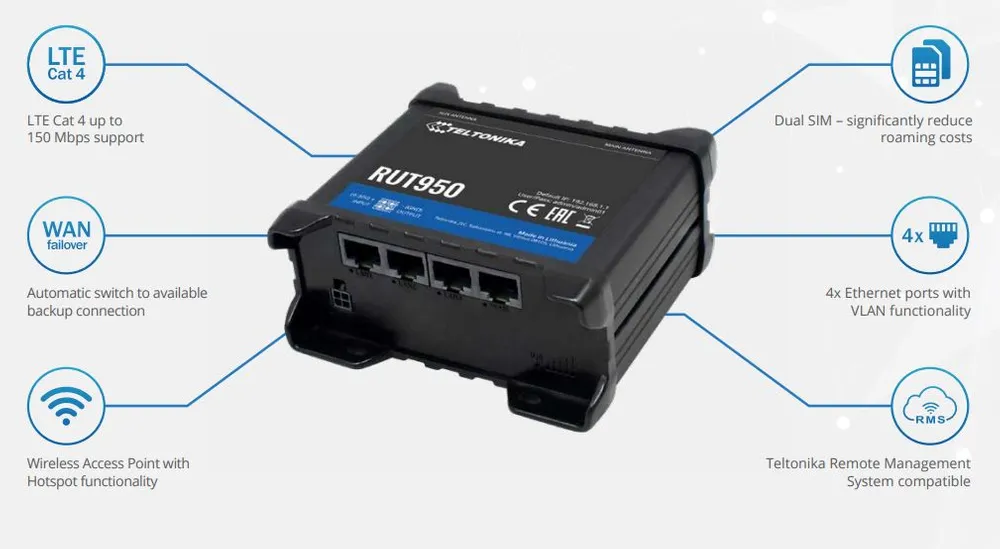

RUT950 LTE dual sim router - the most important features:

  • LTE network support
  • Two SIM card slots
  • Mounting by means of a DIN rail
  • SMA connectors for WiFi antennas
  • Availability of 4 LAN ports and 1 WAN port

Check also other Teltonika routers in our offer:

  • Teltonika RUTX11 LTE router dual sim Cat 6

  • Teltonika RUT230
  • SPECIFICATION

    Features / filters
    Communication type 4G/LTE, Wi-Fi,
    LTE category Cat.4 (150Mb/s Download, 50Mb/s Upload)
    Maximum wireless transmission speed 300 Mb/s
    Number of LAN ports 4x 10/100BaseTX (RJ45)
    Operating frequency 2.4 GHz, LTE,
    Wireless network standards IEEE 802.11n
    Antenna gain Under 10dbi
    Dual SIM Yes
    IP Rating IP30
    LTE bands B1 (2100MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B28A (700 MHz),
    RAM memory 128MB
    Type of device power supply Power supply, Passive PoE,

    Technical Specification

    Mobile connection
    Mobile module 4G (LTE) - Cat 4 to 150 Mbps, 3G to 42 Mbps, 2G to 236.8 kbps
    SIM cards 2 SIM cards, automatic switching cases: weak signal, data limit, SMS limit, roaming, no network, network blocking, data connection error, SIM protection at rest
    Status Signal strength, SINR, RSRP, RSRQ, sent/received bytes
    Bridge mode Direct connection (bridge) between mobile ISP and LAN device
    SMS SMS status, SMS configuration, sending/reading SMS via HTTP POST/ GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
    Black/white list Black/white list of operators
    Multiple PDN (optional) Ability to use different PDNs to access multiple networks and services
    Band management Band lock, displaying the status of the band being used
    Wireless networks
    Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
    Wi-Fi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC filter
    Wi-Fi security WPA2 - Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, customer separation
    SSID SSID stealth mode and access control based on MAC address
    Wi-Fi users Up to 100 simultaneous connections
    Hotspot Captive portal (Hotspot), internal/external Radius server, built into a configurable landing page
    Ethernet
    WAN 1 x WAN (can be configured for LAN operation) 10/ 100 Mbps, compliant with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/ MDIX
    LAN 3 x LAN ports, 10/ 100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, MDI/MDIX standards - automatic support
    Network
    Routing Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2)
    Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT
    VoIP support passthrough H.323 and SIP-alg NAT helpers protocol, enabling correct forwarding of VoIP packets
    Monitoring of connections Ping Reboot, periodic Reboot, LCP and ICMP for call control
    Firewall Port forwarding, network traffic rules, own rules
    DHCP Static and dynamic IP allocation, DHCP Relayd
    QoS Queuing of traffic priorities by source/destination, service, protocol or port, WMM, 802.11e
    DDNS Supported >25 service providers, others can be configured manually
    Load balancing Balancing Internet traffic over multiple WAN connections
    NetSnapper (optional) Mobile call management, VPN client data compression (not available in standard software)
    SSHFS (optional) Possibility to mount a remote filesystem via SSH protocol (not available in standard software)
    Security
    Authentication Shared key, digital certificates, X.509 certificates
    Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as a backup, using automatic failover switching
    Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT; NAT-T
    Prevention of attacks DDOS prevention (SYN protection, SSH attack prevention, HTTP/ HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
    Wi-Fi security WPA2 - Enterprise - PEAP, EAP-TLS, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, customer separation
    VLAN VLAN separation based on ports and tags
    Limitation Custom data limits for both SIM cards
    WEB filter Black list for blocking unwanted websites, white list for determining permitted websites
    Access control Flexible access control for TCP, UDP, ICMP, MAC address filters
    VPN
    OpenVPN Possibility of simultaneous operation of multiple clients and server, 12 encryption methods
    OpenVPN encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
    IPsec IKEv1, IKEv2, supports up to 4 IPsec VPN tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
    GRE GRE tunnel
    PPTP, L2TP Client/server services can be run simultaneously
    Stunnel Proxy designed to add TLS encryption functions to existing clients and servers without changing program code.
    SSTP Customer instance support SSTP
    Monitoring and management
    WEB UI HTTP/ HTTTPS, status, configuration, FW, CLI update, troubleshooting, event log, system log, kernel log
    FOTA Remote firmware update from the server, automatic notifications.
    SSH SSH (v1, v2)
    SMS SMS status, SMS configuration, sending/reading SMS via HTTP POST/ GET
    TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AV systems
    MQTT MQTT Broker, MQTT publisher
    SNMP SNMP (v1, v2, v3), SNMP trap
    JSON-RPC API management by HTTP/HTTPS
    MODBUS MODBUS TCP status/control
    RMS Teltonika Remote Management System (RMS) - Teltonika Remote Management System
    System parameters
    CPU Atheros Wasp, MIPS 74Kc, 550MHz
    RAM 128MB, DDR2
    FLASH memory 16MB SPI Flash
    Software/configuration
    WEB UI Software update from a file, checking the software on the server, configuration profiles, configuration backup, restore point
    FOTA Software upgrade/configuration from server
    RMS Software/configuration update for multiple devices
    Keep the settings Software upgrade without losing the current configuration
    Operating system RutOS (OpenWrt operating system based on Linux)
    Languages supported Busybox shell, Lua, C, C++
    Programming tools GPL package with attached graphics environment
    Power supply
    The link 4-pin industrial DC power outlet
    Input voltage range 9 - 30 VDC (4-pole industrial socket), reverse polarity protection; surge protection >31VDC 10us max.
    PoE (passive) Can be powered via LAN port with 24V (passive PoE), not compatible with IEEE802.3af and 802.3at standards
    Power consumption < 2 In standby mode, < 7 W max.
    Physical interfaces (ports, LEDs, antennas, buttons, SIM)
    Ethernet 4 x RJ45, 10/ 100 Mbps
    LEDs 1 x two-color connection status LED, 5 x connection force LEDs, 4 x LAN status LEDs, 1 x power LED
    SIM 2 x SIM sockets (Mini SIM - 2FF), 1.8V/ 3V
    Power supply 4-pin industrial DC power outlet
    Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
    Reset Buttons for resetting to factory settings
    Physical characteristics
    Housing material Aluminium housing, plastic panels
    Dimensions 80 mm x 106 mm x 46 mm (H x W x D)
    Weight 235 g
    Mounting options using a DIN rail (can be mounted on both sides), flat on the surface
    Working environment
    Ambient temperature during operation -40° C to 75° C
    Ambient humidity during operation 10% to 90% non-condensing
    IP degree of protection IP30
    MTBF 270000 h
    Certificates
    Standards CE/ RED, FCC , IC/ ISED , EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance
    EMI IMMUNITY
    Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
    ESD EN61000-4-2:2009
    RS EN 61000-4-3:2006 + A1:2008 + A2:2010
    EFT EN 61000-4-4:2012
    Surge protection EN 61000-4-5:2006
    Transition and voltage peaks ISO 7632-2:2004
    CS EN 61000-4-6:2009
    DIP EN 61000-4-11:2004
    RF
    Standards EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1
    AS/ CA S042.1:2018, AS/ ACIF S042.3:2005, AS/ CA S042.4:2018, AS/ NZS 4268:2017
    Security
    Standards IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, AS/NZS 60950.1:2015, EN 50665:2017, EN 62311:2008
    Environment
    Ingress Protect LST EN 60529:1999+A1+AC:2002
    Vibrations Class guideline-DNVGL-CG-0339:2016, EN 60068-2-6:2008

    SUPPORT

    Downloads

    Technical Specification - RUT950 Download
    Full user manual - RUT950 Download
    Quick start up guide - RUT950 Download
