TP-Link TL-SG1008 | Switch | 8x RJ45 1000Mb/s, Rack
TP-Link TL-SG1008 | Switch | 8x RJ45 1000Mb/s, Rack Ilość portów LAN8x [10/100/1000M (RJ45)]
TP-Link TL-SG1008 | Switch | 8x RJ45 1000Mb/s, Rack Ilość portów PoEBrak portów PoE

TP-Link TL-SG1008 | Switch | 8x RJ45 1000Mb/s, Rack

CODE: TL-SG1008 / EAN: 6935364021573
21,04 GBP without VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Number of LAN ports: 8x [10/100/1000M (RJ45)]
Number of PoE ports: No PoE ports
Number of WAN ports: Not applicable
more SHOW MORE PARAMETERS

ABOUT PRODUCT

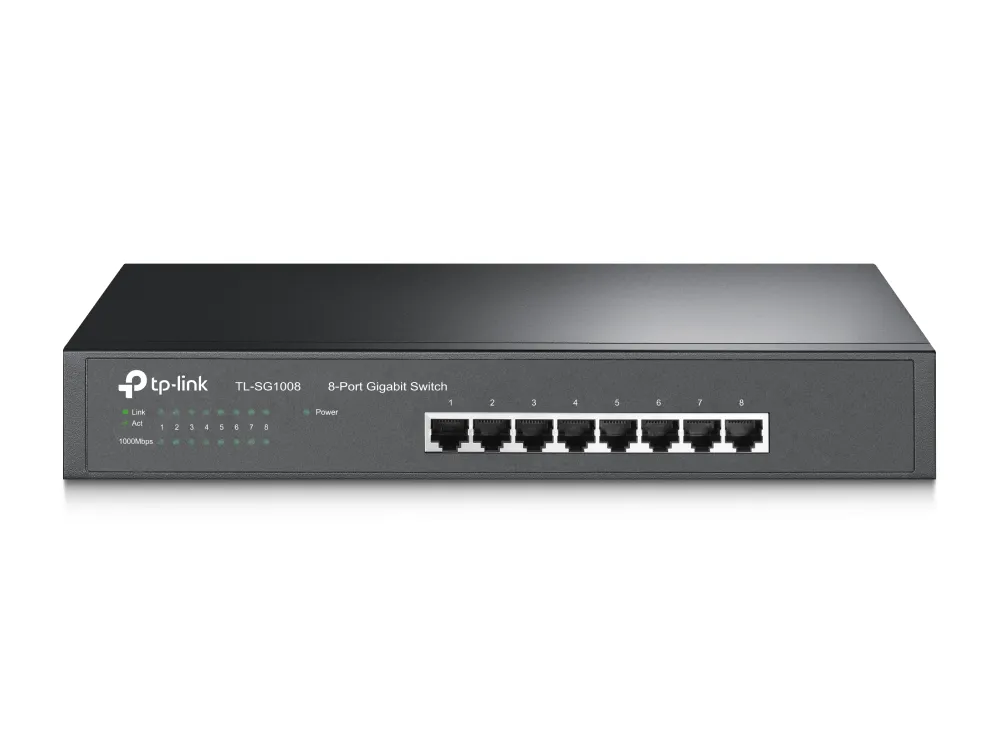

TL-SG1008 - 8-port switch with rack mount capability

TP-Link TL-SG1008 is an 8-port gigabit switch of desktop type adapted for installation in a rack. The device allows for easy increase of Ethernet throughput for gigabit connections. Each of the 8 ports has a automatic MDI/MDIX crossover function, which allows for quick installation of the device, as there is no need to use crossover cables. TLSG1008 switch is a device that uses Green TP-Link technology, so it is environmentally friendly.

Business performance

The TL-SG1008 guarantees maximum data transfer efficiency thanks to its non-blocking architecture. The MAC address board with the size 8 K allows the device to be used in large networks. Support for IEEE802.3x bandwidth control for full duplex transmission and backpressure functions for half duplex transmission ensure smooth network traffic and reliable data transmission.

Green TP-Link

TL-SG1008 SWITCH uses Green TP-Link technology, which effectively increases network capacity while saving energy. The device automatically adjusts power consumption depending on connection status and cable length. The switch complies with the European RoHS directive, which limits the use of equipment made of environmentally hazardous materials.

Easy to use

The TL-SG1008 uses automatic functions to ensure that no configuration is required for installation. MDI/MDIX excludes the need for crossover cables or uplink ports. Automated Connection negotiation detects the speed of the connected equipment on each port, ensuring transmission performance at the highest level. The desktop enclosure allows you to save space in the room or to conveniently mount in a rack. Located on the switch, LEDs inform the user about the operating status of the device.

SPECIFICATION

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 8x [10/100/1000M (RJ45)]
Number of PoE ports No PoE ports
Number of WAN ports Not applicable
Built-in modem None
Management No
Numbers of pieces in the package 1-pack
Power (W) Without PoE
Switching layer 2
Type of case Desktop

Equipment features
Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Ports 8 RJ45 ports 10/100/1000 Mb/s
Automatic negotiation of connection speeds and automatic crossover (Auto-MDI/MDIX)
Network cabling 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100 m)
Fanless Yes
Power supply 100-240 V AC, 50/60 Hz
Power consumption Maximal: 3.32 W (220 V/50 Hz)
Dimensions (S x G x W) 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 inches)
Installation For mounting in a cabinet
Max. energy consumption 4.3W (220 V/50 Hz)
Amount of heat generated 14.67 BTU/h
Performance
Switching efficiency 16 Gb/s
Speed of packet redirection 11.9 Mp/s
MAC address plate 8 K
Buffer size 2 Mb
Jumbo frames 16 KB
Green technology Energy saving - reduces consumption by up to 60%
Switching architecture Store-and-Forward
Software functions
Advanced features MAC address auto-learning and auto-aging
IEEE802.3x Flow control
802.1p/DSCP QoS
Other
Certificates FCC, CE, RoHS
Package contents Desktop switch, 8 Gb ports
Power Cable
Installation instructions
Mounting elements for 19'' racks
Rubber feet
System requirements Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Working environment Permissible operating temperature: 0℃~40℃ (32℉~104℉);
Permissible storage temperature: -40℃~70℃ (-40℉~158℉);
Permissible air humidity: 10%~90%, non-condensing
Permissible storage humidity: 5%~90%, non-condensing

SUPPORT

Downloads:

Installation guide Download
