TP-Link TL-WPA4220KIT | Power Line | N300, 2,4GHz, AV600, 2x RJ45 100Mb/s, Two adapters

CODE: TL-WPA4220KIT

46,22 GBP with VAT

OUT OF STOCK

Maximum wireless transmission speed: 300 Mb/s

Number of LAN ports: 2x 10/100BaseTX (RJ45)

Wireless network standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Throughput through the electric network: 500Mb/s

more SHOW MORE PARAMETERS

ABOUT PRODUCT

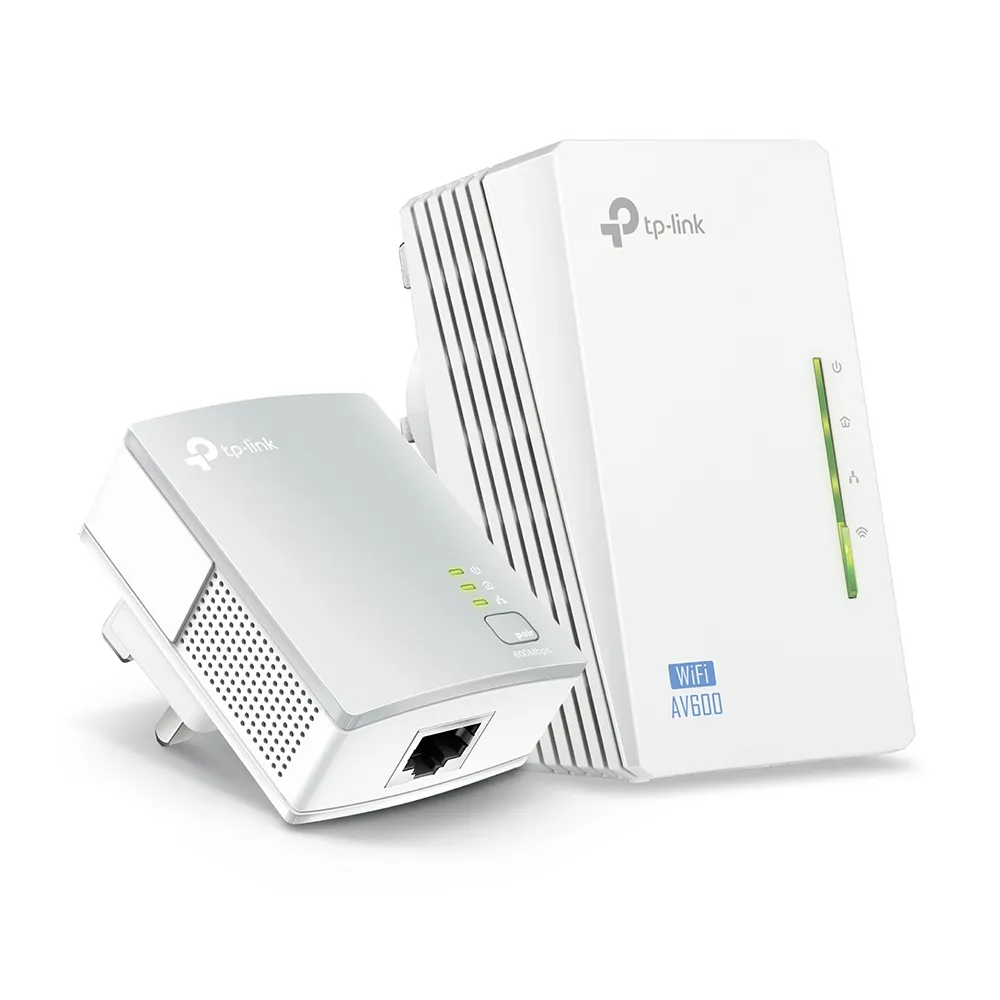

A set of TP-Link network transmitters

TL-WPA4220KIT is a set of network transmitters using our home power supply network for fast data transfer without pulling new wires. The device has Plug and Play functions and does not require configuration, just plug it into a power outlet. The transmission speed of the transmitter is 500 Mb/s, which enables e.g. smooth transmission of video games or UHD quality movies.

Stable wireless connections

Using the Wi-Fi Clone button, you will automatically copy the name and password of the home router's wireless network. Then connect the device at the destination point and from now on you can use the network access, anywhere in the house.

Better performance

Now you can extend the range of your wireless network and enjoy network access in the basement, attic or garage. Simply connect your device to the location of your choice and the network signal will be distributed over the electrical cables that are found in every home.

One network across the house

Thanks to TL-WPA4220KIT there is no longer any need to buy several Wi-Fi routers and install cables to them, and the TP-Link tpPLC application, available for devices with iOS and Android, will help you configure the transmitter according to your needs.

SPECIFICATION

Features / filters
Maximum wireless transmission speed	300 Mb/s
Number of LAN ports	2x 10/100BaseTX (RJ45)
Wireless network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Throughput through the electric network	500Mb/s

Equipment features
Plug type	EU
Standards and protocols	HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Ports	2 Ethernet 10/100 Mbps ports
Buttons	Pair, reset, Wi-Fi/Wi-Fi Clone
Power consumption	Maximum: 7,608 W (220 V/50 Hz) On average: 7.216 W (220 V/50 Hz) In standby mode: 4,610 W (220 V/50 Hz)
LED	PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions (S x G x W)	94 x 54 x 40 mm (3.7 x 2.1 x 1.6 inches)
Reach	300 metres through the electricity grid within the building
Wireless transference properties
Frequency of operation	2.4-2.4835 GHz
Transmission speed	11n: up to 300 Mb/s (dynamic) 11g: up to 54 Mb/s (dynamic) 11b: Up to 11 Mb/s (dynamic)
Receiver sensitivity	270M: -68 dBm@10% PER 130M: -68 dBm@10% PER 108M: -68 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER
Wireless transmission security	64/128-bit WEP/WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Advanced features	Wi-Fi on/off, WMM, wireless statistics
Transmission power	CE: < 20 dBm (2.4 GHz) FCC: < 30 dBm
Transmission encryption	The electricity grid: 128-bit AES encryption Wireless: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Other
Certificates	CE, FCC, RoHS
Package contents	TL-WPA4220 TL-PA4010 Ethernet cable (2m) CD Quick Installation Guide
System requirements	Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Working environment	Permissible operating temperature: 0℃~40℃ (32℉~104℉) Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
