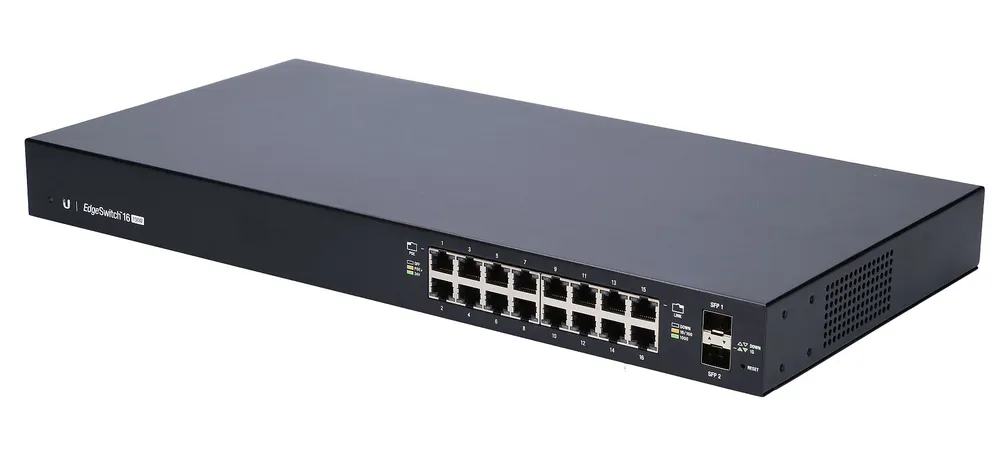

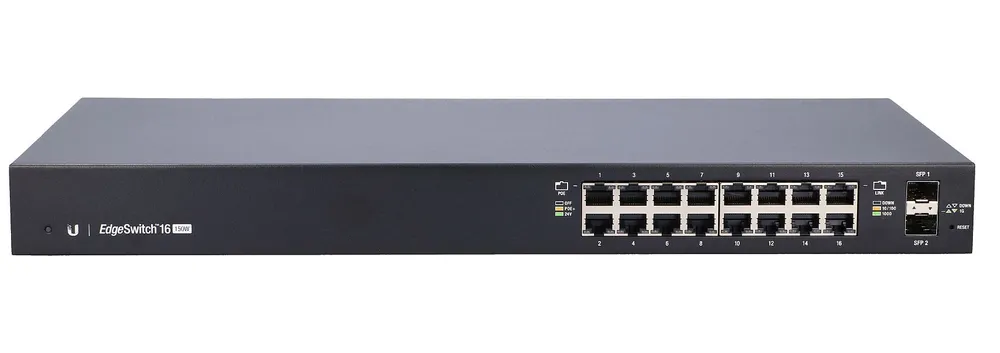

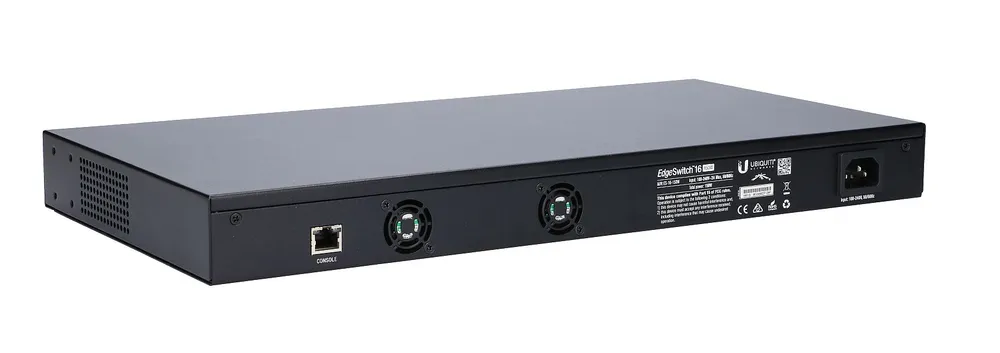

Available with 16 RJ45 Gigabit ports, EdgeSwitch® provides robust performance and fast data transfer for growing networks. The EdgeSwitch ES-16-150W processes traffic on all ports simultaneously at line speed without packet loss. Total throughput without blocking is up to 18 Gbps for 16-port models.
The EdgeSwitch series Switches offer a rich set of advanced switching functions and 2 layouts and 3 routing capabilities.
EdgeSwitch has ports for fiber optic communication. The 16 port models have two SFP ports, offering up to 1 Gbps capacity.
Designed for convenient management, EdgeSwitch allows administrators to configure and monitor switch functions in the graphical interface. For advanced users, there is a standard command line interface (CLI) available via the console serial port, telnet and SSH.
EdgeSwitch® has automatic IEEE 802.3af/at and 24V passive PoE detection to power multiple devices on the network.
|Basic technical parameters|
|Dimensions||443 × 43 × 221 mm (17,44 × 1,69 × 8,70")|
|Weight with mounting brackets||2,89 kg (6,37 lb)|
|Weight without mounting brackets||2.80 kg (6.17 lb)|
|Total transmission speed without line blocking||18 Gb/s|
|Maximum energy consumption||150W|
|Power supply method||100-240VAC/50-60 Hz, universal input|
|Power supply||AC/DC, internal, 150W DC|
|Shocks and vibrations||Standard ETSI300-019-1.4|
|Network Interfaces||(16) 10/100/1000 Mb/s RJ45
(2) 1 Gbps SFP
|Management interface||UART console out of band,
Ethernet in the band
|PoE interfaces||PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
24VDC passive PoE (pins 4, 5+; 7, 8-)
|Voltage range||Operating mode 802.3at 50-57 V
24 V passive PoE 20-27 V
|Maximum power per port||PoE+ 34.2W
Passive PoE 17W
|Installation in a rack||Yes, 1U high|
|Operating temperature||-5 to 40° C|
|Working humidity||5 to 95%|
|Certificates||CE, FCC, IC|
EdgeSwitch is set to DHCP by default, so it will try to get an IP address automatically. If this fails, it will use the default backup IP address, 192.168.1.2
Use one of the methods below:
- Configure the DHCP server to give a specific IP address to EdgeSwitch based on the MAC address.
- Allow EdgeSwitch to obtain an IP address, and then check the DHCP server to see what IP address it has been assigned.
1. Start your web browser. Enter the appropriate IP address in the address field. Press Enter
2. The login screen will appear. Enter Ubnt in the username and password field. Click Sign In
3. The EdgeSwitch configuration interface will appear. If necessary, you can adjust additional settings.
More information about PoE configuration can be found in the EdgeSwitch documentation, which is available at www.ubnt.com/download/edgemax.
Maximum energy consumption: 150W
Operating temperature from -5 to 40° C
They offer a throughput of: 1x SFP 1GB/sec.
