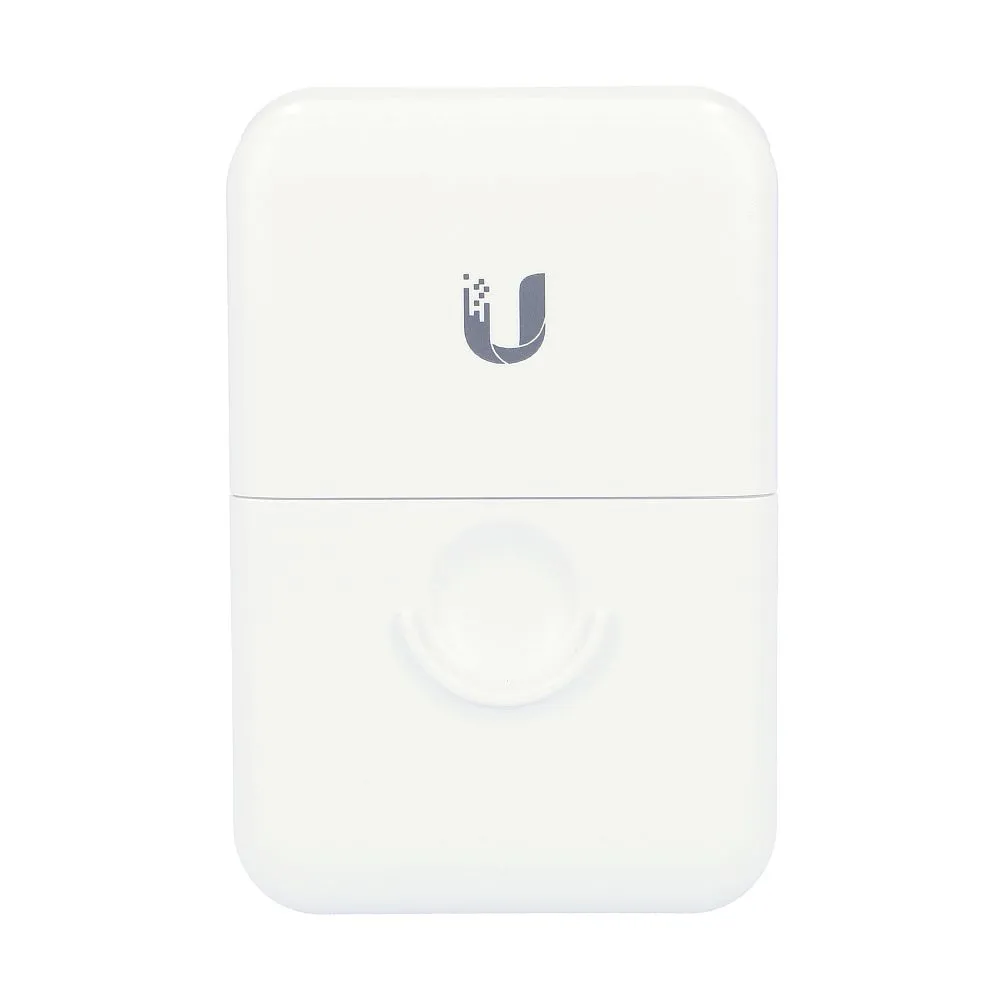

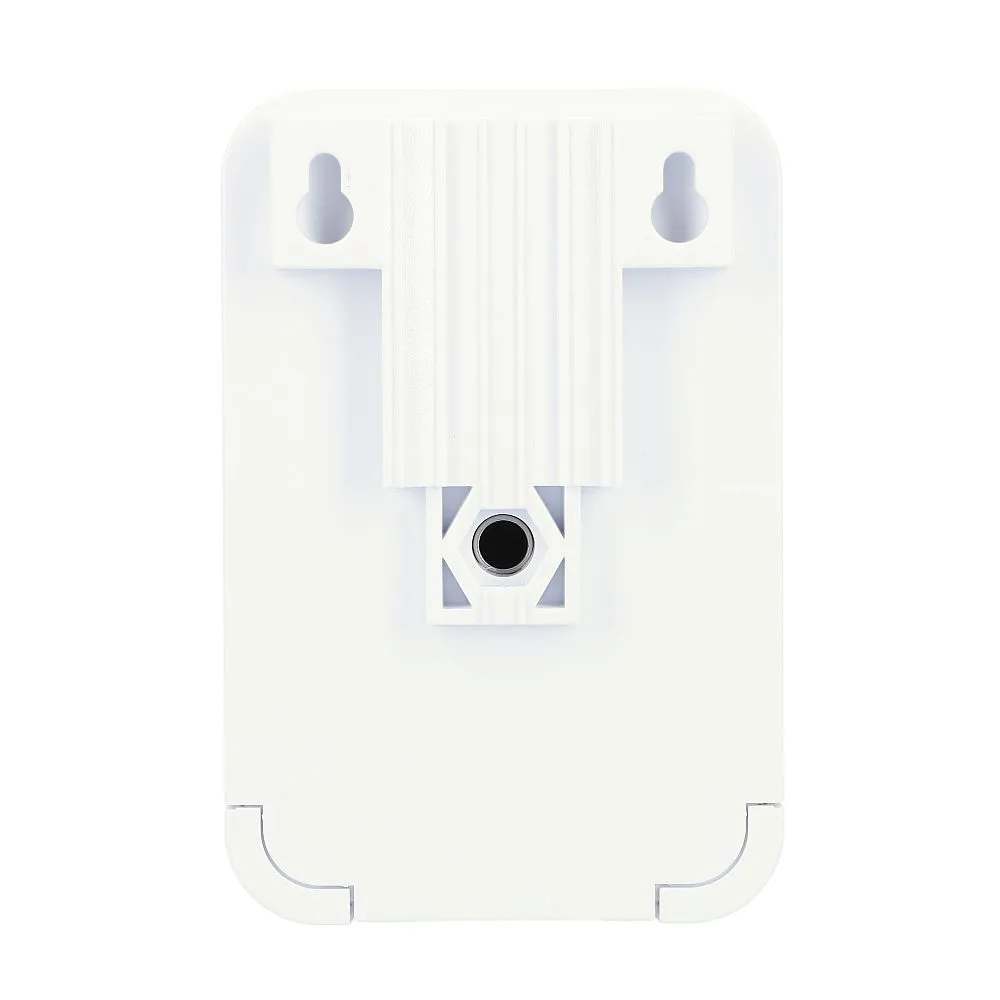

We present the new generation of Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. It is a cost-effective solution to protect external Ethernet devices from electrostatic discharges and surges. Since all Ubiquiti® airMAX® devices already have a robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection.

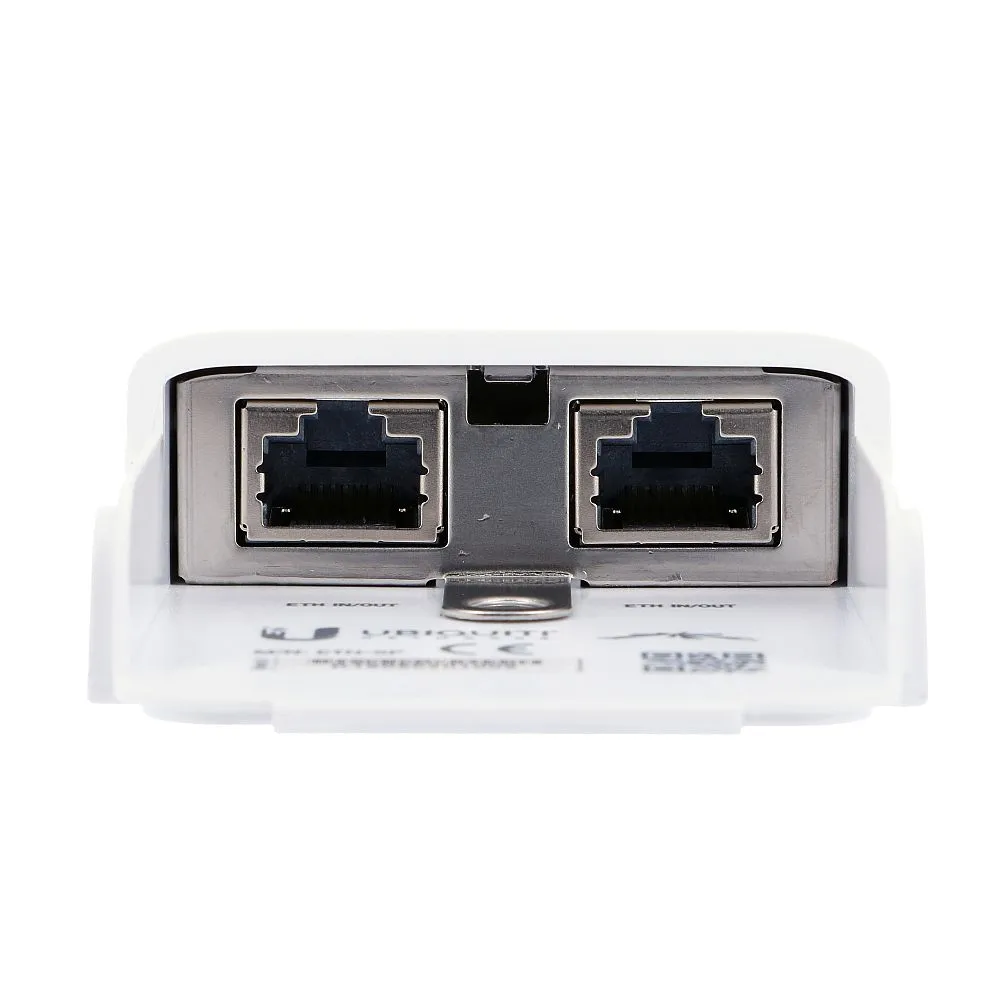

ETH-SP-G2 has been designed to protect Power-over-Ethernet (PoE) devices or ordinary equipment without PoE power with a connection speed up to 1 Gb/s. Two passive, surge protected RJ45 connections ensure maximum hardware compatibility.
All Ubiquiti airMAX devices are equipped with ESD protection. However, in order to protect external devices and meet certain requirements of local regulations, installation of ETH-SP-G2 is necessary.
ETH-SP-G2 has been designed for easy, easy plug and play installation.
|Certificates||CE, FCC, IC|
|Dimensions||21.7 x 43.4 x 121.9 mm
(0.85 x 1.71 x 4.80")
|Weight||110 g (3.88 oz)|
|Max. energy consumption||5W|
|Power supply method||48V 802.3af or Passive PoE 24V (Pins 4, 5+; 7, 8-)
|Power supply||802.3af PoE or
Micro-USB 5V, 1A
|Ambient temperature during operation||0 to 40° C (32 to 104° F)|
|Ambient humidity during operation||20 to 90% non-condensing|
|System memory||2 GB DDR3|
|Ports||1 port 10/100/1000 RJ45
1 microSD port
|LED lights||Factory Defaults/Device Busy/Device Working|
Ports: 1x port 10/100/1000 RJ45 and 1x port microSD
2 GB DDR3 system memory
