Ubiquiti LBE-M5-23 | CPE | LiteBeam M5, 5GHz, MIMO, 1x RJ45 100
Ubiquiti LBE-M5-23 | CPE | LiteBeam M5, 5GHz, MIMO, 1x RJ45 100Mb/s, 23dBi

Ubiquiti LBE-M5-23 | CPE | LiteBeam M5, 5GHz, MIMO, 1x RJ45 100Mb/s, 23dBi

CODE: LBE-M5-23-EU / EAN: 810354022326
55,19 USD with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Number of LAN ports: 1x 10/100BaseTX (RJ45)
Operating frequency: 5 GHz
Antenna gain: 21dBi - 30dBi
Device type: Client device
more SHOW MORE PARAMETERS

ABOUT PRODUCT

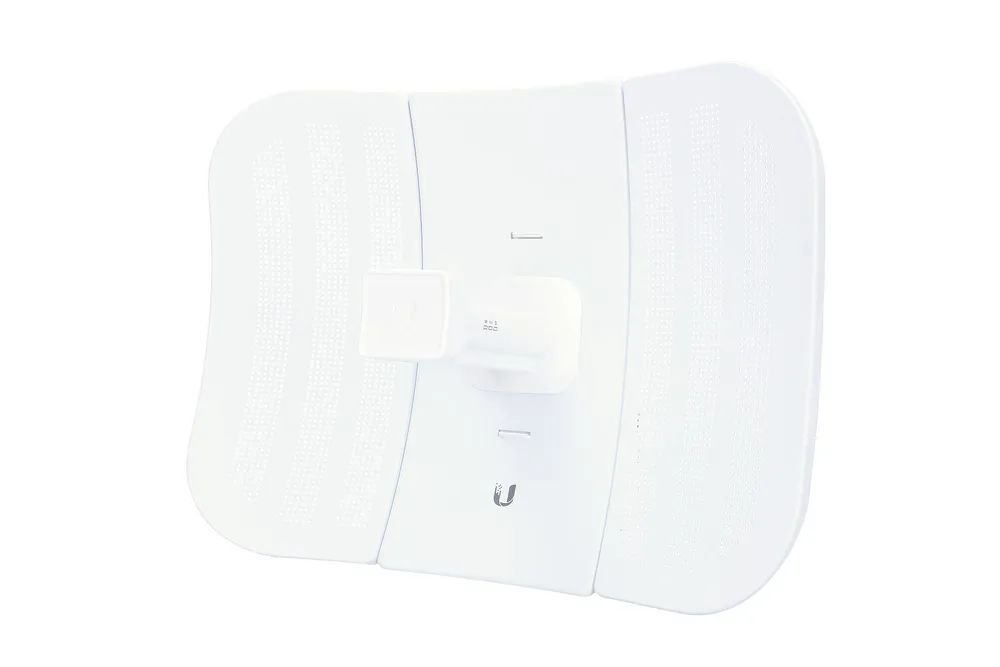

The Ubiquiti LiteBeam M5 23dBi LBE-M5-23 is the ultra-lightweight airMAX CPE.

Ubiquiti LBE-M5-23 Ubiquiti WiFi Bridge is the latest installment of Ubiquiti devices, from the sensational airMAX series - technology dedicated to wireless networks. It is an 802.11a/n MIMO 1x1 radio system, working in 5GHz frequency band. The use of InnerFeed solution allowed to integrate the antenna radiator with the radio module and active device.

High gain directional antenna

The LiteBeamM WiFi Bridge provides 23 dBi gain for long-distance calls and uses a directional antenna pattern to increase resistance to interference.

Breakthrough industrial design

Thanks to the freedom of triaxial alignment the LiteBeamM bridge can be mounted in seconds - no tools are needed. Only one key is needed to mount on the pole.

Compact size

LiteBeamM is a lightweight form contained in an ultra-compact package, ideal for transport and logistics.

LiteBeam M5 works in Router or Bridge modes. The WiFi interface supports the Client, WDS Client modes.

The device is compatible with the AirMax protocol, which allows to eliminate the problem of hidden stations by assigning time slots (TDMA) to the devices, where collision-free transmission is possible. It allows to use maximum throughput, even with dozens of client stations connected to Access Point.

SPECIFICATION

Features / filters
Number of LAN ports 1x 10/100BaseTX (RJ45)
Operating frequency 5 GHz
Antenna gain 21dBi - 30dBi
Device type Client device
MIMO Type 1x1
Numbers of pieces in the package 1-pack
Type of device power supply Passive PoE

Basic technical parameters
Manufacturer Ubiquiti
Model LBE-M5-23
Dimensions 362 x 267 x 184 mm
(14.25 x 10.51 x 7.24")
Weight 750 g (24.11 oz)
Wind resistance to speed 200 km/h (125 mph)
Wind load 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Case UV-resistant plastic

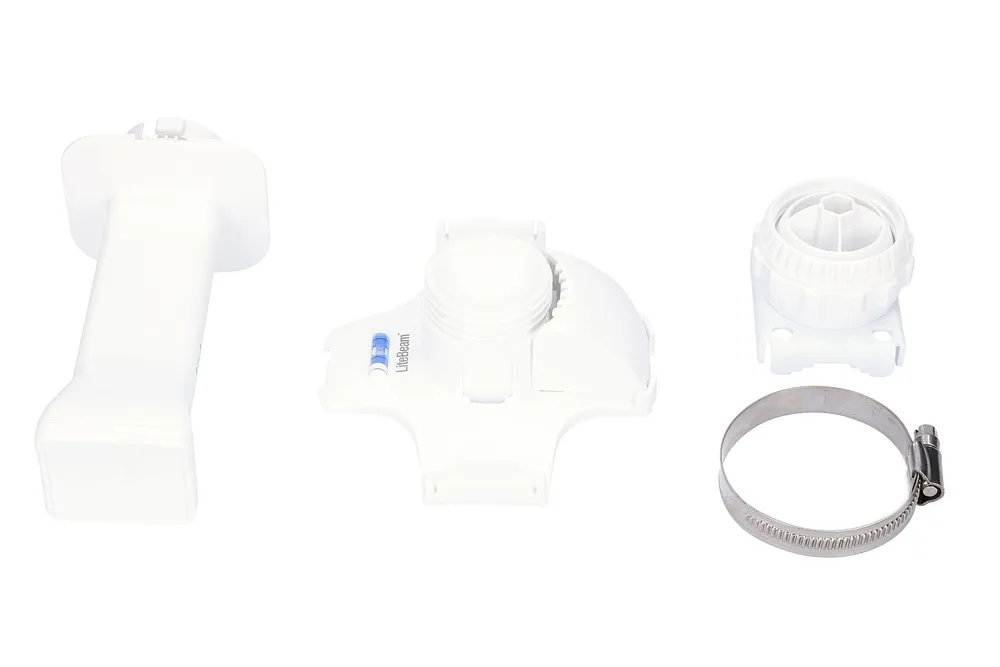

Mounting kit Pole Mounting Kit (Included)
Max. power consumption 4W
Power supply 24V, 0.2A PoE Adapter (Included)
The flipchart Passive Power over Ethernet
(Pairs 4, 5+; 7, 8 Return)
Operating temperature -40 to 70° C (-40 to 158° F)
Humidity 5 to 95% non-condensing
Vibrations ETSI300-019-1.4
ETSI EN 302 326 DN2
Hardware information
Processor MIPS 74K
Memory 64 MB

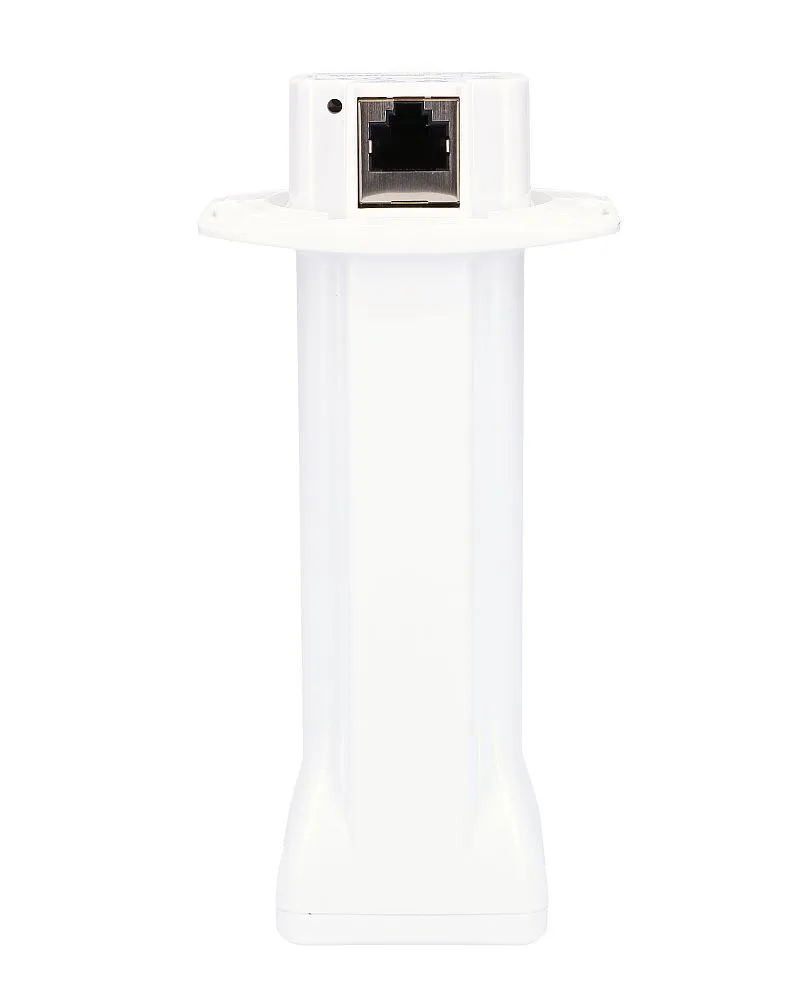

Network Inferfaces (1) 10/100 Ethernet Port
Regulations
Wireless network certificates FCC, IC, CE
RoHS compliance
Yes
Antenna
Frequency of operation Worldwide: 5150 - 5875 MHz
THE USA: 5725 - 5850 MHz
Output power 25 dBm
Profit 23 dBi
Max. VSWR 1.5:1

SUPPORT

Downloads:

LBE-M5-23-EU LITEBEAM M5 23DBI (ENG) User Manual Download
Brochure LBE-M5-23-EU LITEBEAM M5 23DBI (ENG) Download

FAQ

Is the housing UV-resistant ?

Yes.

Does it have Passive PoE ?

Yes.

What band does he work in?

Frequency of operation: 5 GHz
