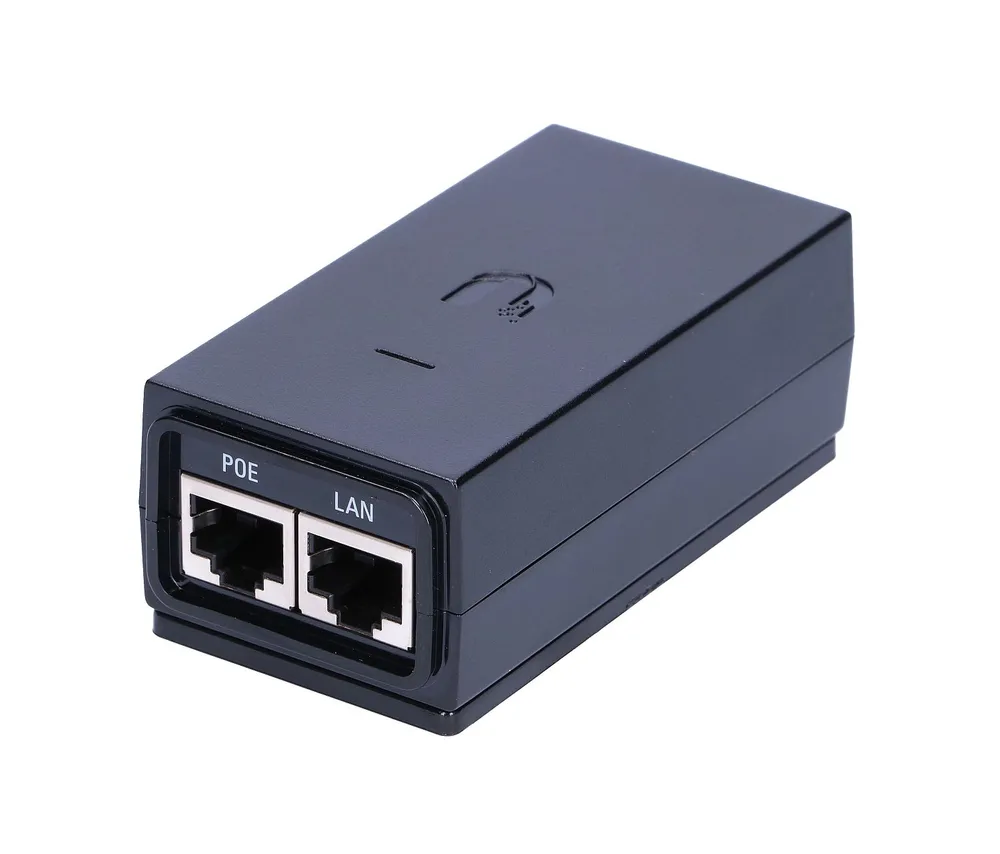

Ubiquiti POE-24-12W | PoE Power supply | 24V, 0,5A, 12W
Ubiquiti POE-24-12W | PoE Power supply | 24V, 0,5A, 12W

Ubiquiti POE-24-12W | PoE Power supply | 24V, 0,5A, 12W

CODE: POE-24-12W / EAN: 810354022982
6,11 GBP with VAT
Added to cart
local_shipping SHIPPING: 24h
Output type of supply: PoE 100Mb/s
Output voltage: 24V
Power supply: < 25W


Equipment protection

The PoEAdapters are highly reliable and, in combination with the Ubiquiti TOUGH cable, provide earthing and surge protection to protect against electrostatic discharges (ESD). Ubiquiti PoE adapter with 12W 0.5A. Output voltage is 24 V. It is ideal for powering Ubiquiti devices, but it is also suitable for all devices powered by 24 V through PoE.

ubiquiti networks POE-24-12W POWER ADAPTER

Seamless compatibility

The 15V, 0.8A and 24V, 0.5A, POE-15-12W, POE-24-12W and POE-24 12W-G models work with the airGateway to bridge airMAX connections to Wi-Fi.

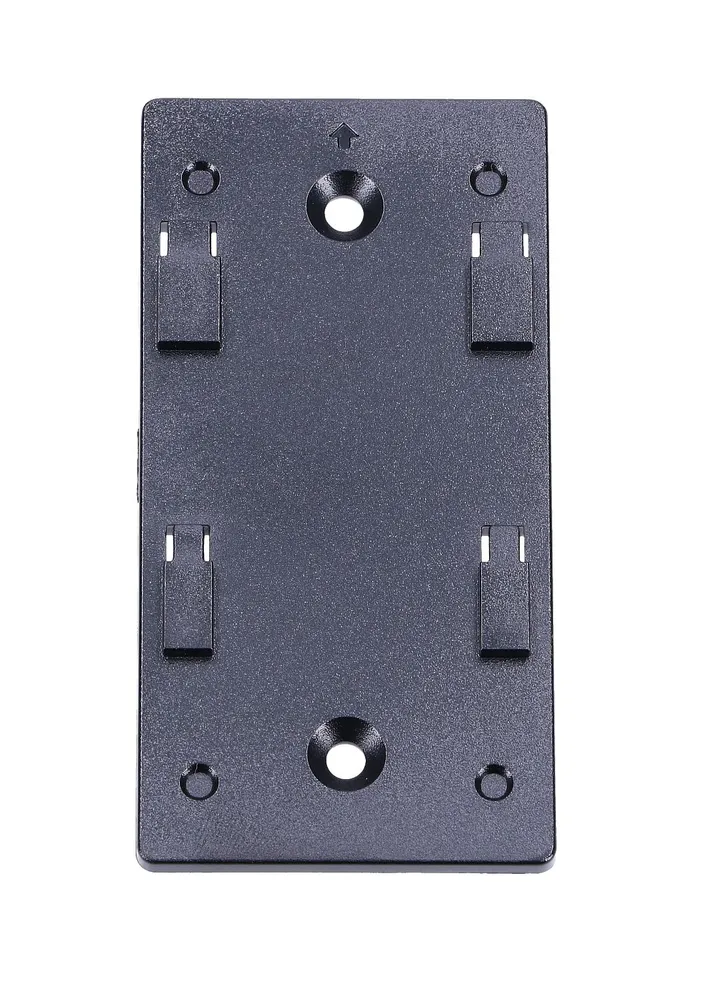

Convenient wall mounting

The 24V, 0.5A, POE-24-12W and POE-24-12W-G models can be wall-mounted using the optional wall-mounting brackets.

ubiquiti 24V 12W 0.5A


Features / filters
Output type of supply PoE 100Mb/s
Output voltage 24V
Power supply < 25W

Basic technical parameters
Dimensions 87 × 44 × 29.2 mm
Weight 92 g
Output voltage 24VDC @ 0.5A
LAN activity indicator No
Gigabit LAN port No
Remote resetting capability Yes
Reset button Yes
Input voltage 90-260VAC @ 47-63 Hz
Input current 0.3A @ 120VAC,
0.2A @ 240VAC
Inrush current <30A Peak @120VAC, <60A Peak @ 230VAC
Effectiveness 75+%
Output current pulsation 1% Max.
Switching frequency 50 kHz
Linear adjustment ± 1%
Load adjustment ± 3%
2 steam power supply Pins 4, 5 (+) and Pins 7, 8 (-)
Operating temperature 0 to 40° C
Storage temperature -30 to 70°C
Humidity during operation 35 to 95%
AC connector IEC-320 C6
Date IN / POE RJ45 , shielded socket
Surge protection Modes: Difference and Common
Clamp protections 11 V Data, 60 V Power
Highest pulse rate 36A (10/1000µS) Date
Electric capacity of the shunt <5 pf date
Response time <1 nS
Compatibility IEC 60950-1:2005+A1 UL60950-1EN55022:2010, EN55024:2010 FCC Class B
AC cable with earthing USA, EU, AR, BR, UL, CCC, Mexico



Datasheet Download


At what temperatures can the device operate ?

Operating temperature: 0 to 40° C

Does it have a gigabit port ?


Does it have ESD protection ?
