Ubiquiti UAP | Access point | Unifi, 2.4GHz, 300Mb/s, 1x RJ45 1
Ubiquiti UAP | Access point | Unifi, 2.4GHz, 300Mb/s, 1x RJ45 100Mb/s, PoE, 23 dBm

Ubiquiti UAP | Access point | Unifi, 2.4GHz, 300Mb/s, 1x RJ45 100Mb/s, PoE, 23 dBm

CODE: UAP(EU) / EAN: 810354022937
58,73 GBP with VAT
Number of LAN ports: 1x 10/100BaseTX (RJ45)
Number of WAN ports: Not applicable
Operating frequency: 2.4 GHz


A set of 3 powerful Unifi Access Point devices.

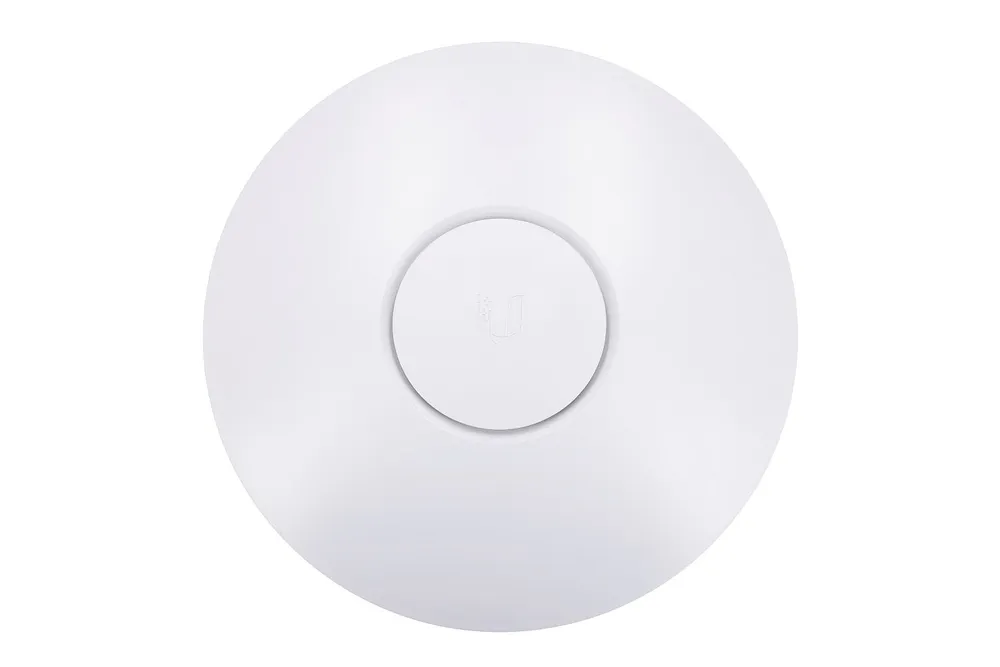

WiFi UNIFI Enterprise System is an easily scalable solution for Access Point devices designed to be easy to use and manage. Access Point has a sleek design and can be easily mounted to the wall or ceiling with the included mounting hardware. It is powered by the included PoE adapter so that power and data can be provided via a single cable.

ubiquiti networks UAP-3 UNIFI ACCESS POINT

Modern device

Unifi Access Point works in the 2.4GHz frequency band, the maximum data transmission speed is even 300Mbps. The device is compliant with 802.11 b/g/n standards. Transmission power is 23 dBm.

wi-fi ubiquiti 2.4GHZ, 300MB/S, POE, 20DBM

Advanced software

Unifi Controller is software that should be installed on any computer on the network and is easily accessible via any standard web browser. Using the Unifi Controller software, the Enterprise WiFi network allows for instant configuration. In addition, by allowing you to observe the status of devices in real time, you can automatically detect new devices and attach room maps and display the signal range of each area.

ACCESS POINT 3-PACK UniFi controller

No software license fee

The UniFi software is supplied with the UniFi AP hardware without additional charges, i.e. without separate software, license or technical support fee.

ubiquiti no fee 300MB/S POE


Features / filters
LAN standard Fast Ethernet 10/100Mb/s
Number of LAN ports 1x 10/100BaseTX (RJ45)
Number of WAN ports Not applicable
Operating frequency 2.4 GHz
Wireless network standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b,
Built-in modem None
Device type Access point
Numbers of pieces in the package 1-pack
Type of device power supply Passive PoE

Basic technical parameters
Dimensions 200 × 200 × 36,5 mm
Weight 290 g
Network interface (1) 10/100 Ethernet port
Buttons Reset
Antennas (2) Integrated supports 2x2 MIMO
Wi-Fi standards 802.11 b/g/n (2.4 GHz)
Power supply method Passive PoE power supply (12-24 V)

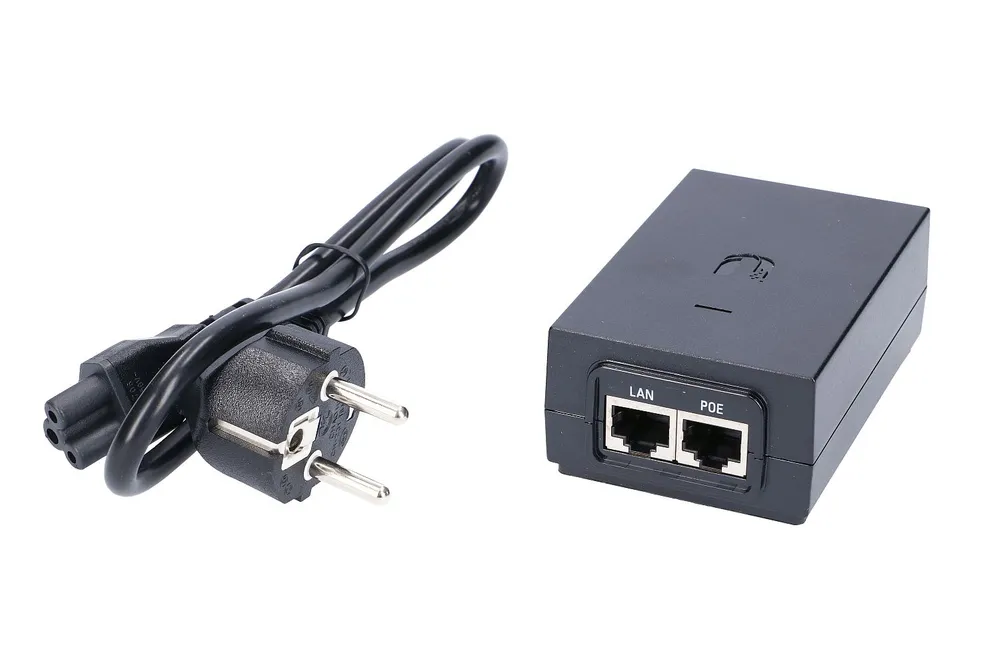

Power supply 24 V, 0.5 A PoE power supply (included)
BSSID Up to four per radio
Saving energy Supported
Wireless security WEP, WPA-PSK, WPA-PSK,
WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certificates CE, FCC, IC
Installation For wall/ceiling (supplied)
Operating temperature -10 to 70° C
Working humidity 5 to 80%
Maximum energy consumption 4W
Maximum power TX 20 dBm


Information brochure Download
Quick manual Download

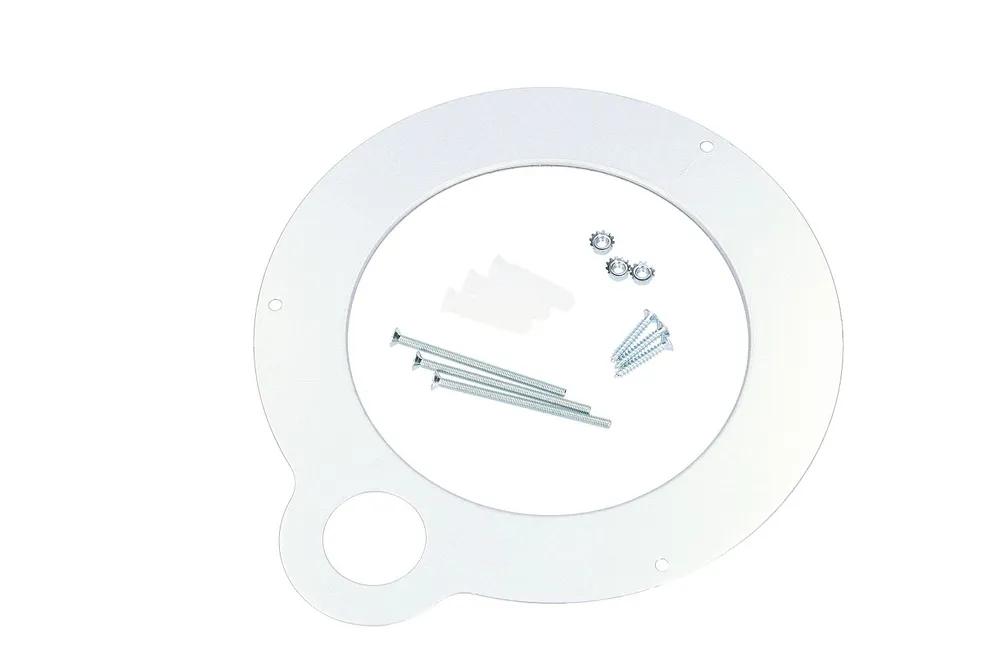

How to mount the device on the wall?

1. Umieść uchwyt montażowy w żądanym miejscu na ścianie ze szczeliną na kabel skierowaną w stronę podłogi.
2. Zaznacz ołówkiem trzy otwory na ścianie. Do wywiercenia otworów należy użyć wiertła o średnicy 6 mm.

3. Jeśli kabel Ethernet przechodzi przez ścianę, wywierć okrąg o średnicy około 25 mm, tuż poniżej dolnego środka uchwytu montażowego. Następnie przeprowadź kabel CAT5/6 przez otwór.
4. Włożyć kołki do otworów 6 mm. Przymocuj uchwyt montażowy do ściany, wkładając śruby do kołków.

5. Podłącz kabel Ethernet do portu Ethernet.

6. Wyrównaj nacięcie na punkcie dostępowym UniFi AP z nacięciem na uchwycie montażowym.

7. Przekręcić punkt dostępowy UniFi AP w kierunku zgodnym z ruchem wskazówek zegara, aż do jego zablokowania.

What is the frequency of operation ?

Operating frequency: 2.4 GHz

What are the methods of power supply ?

Device power type: Passive PoE
