![Ubiquiti UDM | WiFi Router | UniFi Dream Machine, 4x4 MIMO, Dual Band, AC WAVE2, 5x RJ45 1000Mb/s Ilość portów LAN4x [10/100/1000M (RJ45)]](https://www.batna24.com/img/200/328085_2.jpg)

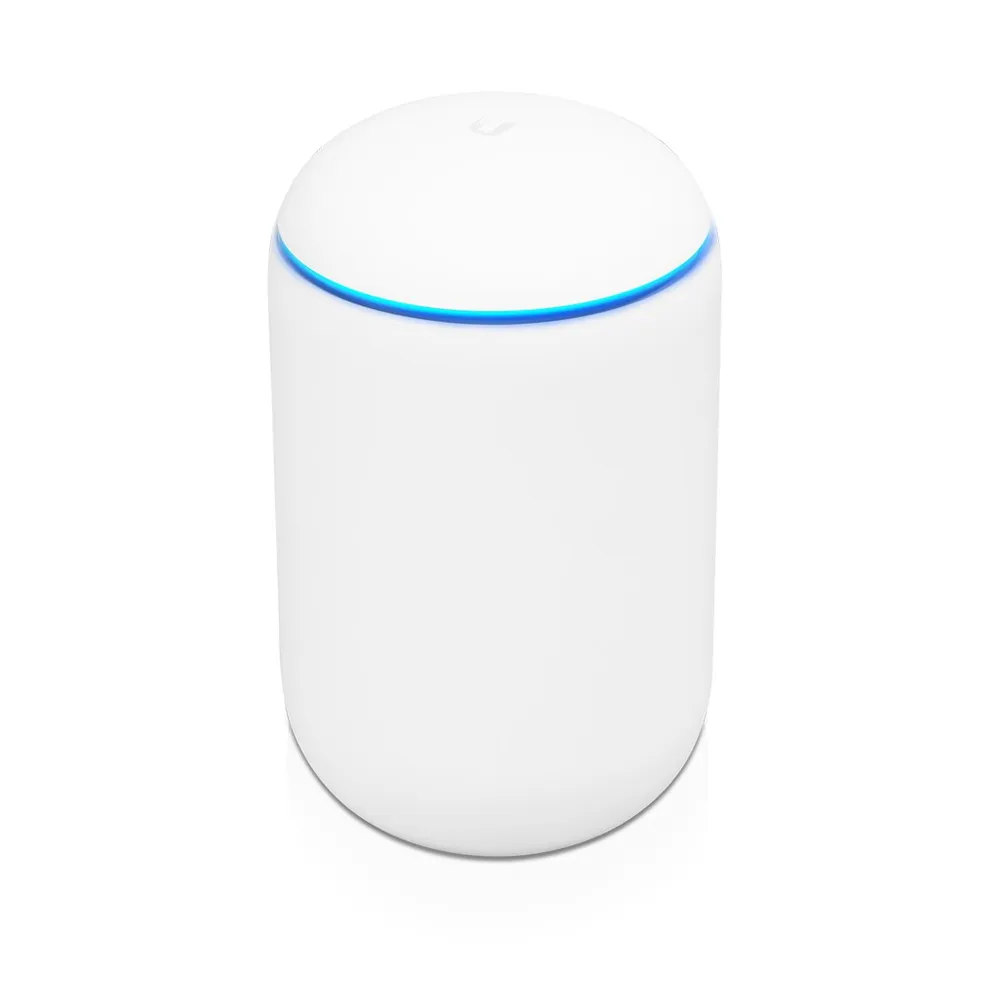

UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. UDM contains everything you need to create a wired or small scale Wi-Fi network. It is easy to use and still offers all the advantages of UniFi in homes and businesses.
Centralized management software with graphical user interface offers easy configuration and convenient control.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
Number of WAN ports | 1x 10/100/1000BaseTX (RJ45) |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
Antenna type | Integrated |
Application | Indoor |
Management | By web browser, Dedicated application, |
MIMO Type | 4x4 |
RAM memory | 2GB |
Type of case | Desktop |
Type of device power supply | Power supply |
WiFi encryption | WPA-PSK, WPA/WPA2, TKIP/AES, |
Basic technical parameters: | |
Dimensions | 110 x 184.2 mm |
Weight | 1.05 kg |
Interfaces | 4x LAN 10/100/1000 RJ45 Ports ( fast ethernet ) 1x WAN 10/100/1000 RJ45 Port ( fast ethernet ) |
Buttons | Reset |
IDS/IPS Throughput | 1 Gbps |
Processor | Arm Cortex-A57 Quad-Core at 1.7 GHz |
Ram memories | 2 GB DDR RAM |
Built-in memory | 16 GB |
Maximum power consumption | 26W |
Power supply range | 100 - 240VAC |
Power supply method | AC Power Cord |
Power supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC) |
Power Save | Supported |
Beamforming | Supported |
2.4 GHz TX power | 23dBm |
TX 5 GHz power | 26 dBm |
Antenna | (1) Dual-Band, Quad-Polarity Antenna |
2.4 GHz antenna gain | 3 dBi |
5 GHz antenna gain | 4.5 dBi |
Wi-Fi standards | 802.11 a/b/g/n/ac/ac-wave2 |
Safeguards | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
BSSID | Up to 8 per radio |
Operating temperature | -10 to 45° C (14 to 113° F) |
Moisture | 5 to 95% non-condensing |
sfp port | None |
Certificates | CE, FCC, IC |
Short guide | Download |
QoS stands for Quality of Service, which means quality of service in Polish.
Using routers without the QoS function can be cumbersome, e.g. it will lead to a situation where one person downloads huge files at full speed for a long time and thus uses the whole link. The other user will have trouble browsing the web or watching video. A router with QoS function detects what is important and what is less and gives higher priority.
It is used to connect different computer networks (different, i.e. of different classes, masks, etc.), so it acts as a communication node.
