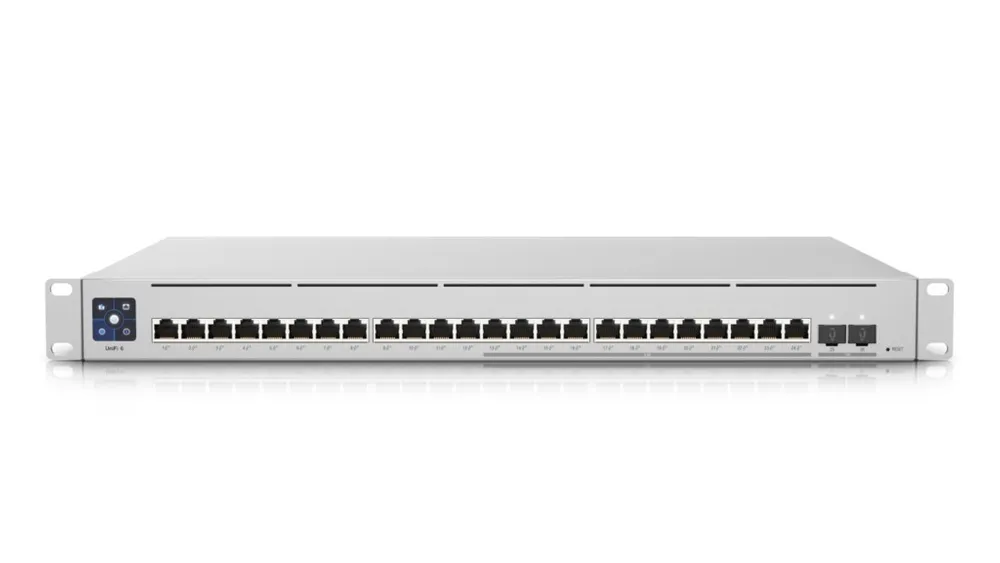

UniFi Switch Enterprise 24 PoE is a Layer 3 managed switch with 24 RJ45 ports and two 10GbE SFP slots for up to 10 Gigabit connectivity. The switch has 12 2.5 Gigabit ports and 12 Gigabit ports for connecting new Wi-Fi access points. All RJ45 ports are PoE compliant and provide power for 802.3af/at devices, with a maximum load of 400W.
The upgraded cooling system of the USW-Enterprise-24-PoE operates with minimal noise. The multi-function color touchscreen display shows real-time information about the overall status of the switch and provides information about connected devices using augmented reality tools. The switch's power redundancy with UniFi SmartPower Redundant Power System provides additional protection against power outages.
RJ45 ports and SFP module slots are arranged horizontally for easy switching. The UniFi Switch Enterprise 24 PoE chassis is 1 unit high and designed for standard 19" rack mounting. Control is via the mobile app or via the Ubiquiti UniFi Controller software.
|Features / filters|
|LAN standard||Gigabit Ethernet 10/100/1000 Mb/s|
|Number of LAN ports||12x [10/100/1000M (RJ45)] , 12x [2,5G (RJ45)], 2x [10G (SFP+)] ,|
|Number of PoE ports||12x [802.3af/at (1G)] , 12x [802.3af/at (2.5G)],|
|Management||CLI - Command Line Interface, Dedicated application,|
|Type of case||Rack (1U)|
|Basic general data|
|Model||USW Enterprise 24 PoE|
|Dimensions||442.4 mm x 43.7 mm x 325 mm
(17.4 x 1.7 x 12.8")
|Weight without handle||5.11 kg (11.27 lb)|
|Weight with handle||5.2 kg (11.46 lb)|
|Housing materials||SGCC steel|
|Fastening material||SGCC steel|
|Total throughput without blocking||62 Gbps|
|Switching capacity||124 Gbps|
|Transmission speed||92.25 Mpps|
|Max. power consumption||550W|
|Power supply method||1 x Universal AC Input: 100-240VAC, 8.5A Max., 50/60 Hz
1 x USP-RPS DC Input: 52VDC, 7.7A; 11.5VDC, 8.7A
|Power supply||AC/DC, internal, 550W|
|Management interface||Ethernet in-band|
|Network interfaces||12 x 10/100/1000 Mbps RJ45 Ethernet
12 x 100/1000/2500 Mbps RJ45 Ethernet
|SFP interfaces||2 x 1/10G SFP|
|PoE interfaces||24 x PoE IEEE 802.3af/at (pins 1, 2 ; 3, 6-)|
|Max. PoE power per port acc. to PSE||34.2W|
|Voltage range 802.3af Mode||44 to 57V|
|Voltage range 802.3at Mode||50 to 57V|
|Services||SMB Layer 3 PoE Gigabit Ethernet Switch|
|ESD/EMP protection||Air: ± 16 kV, Contact: ± 12 kV|
|Operating temperature||-5 to 40° C (23 to 104° F)|
|Operating humidity||10 - 95% non-condensing|
|Certificates||CE, FCC, IC|
|System||1 x Boot Animation: Booting is in progress
Firmware upgrade icon: Upgrading firmware
Solid white: Factory settings, waiting for adoption
Solid blue: Device has been accepted
|Ethernet||White: Link or activity|
|SFP||White: Link or activity|
The maximum power consumption of the device is 400 W.
PoE, or Power over Ethernet, is the name of a number of methods that allow to power network equipment while simultaneously transmitting data via twisted-pair cable.
Rack, rack, data communications cabinet, server cabinet, matrix switch cabinet - these are the names of the standard 19" wide cabinets, racks and industrial equipment (48.26 cm). Rack cabinets are mainly used in computer server rooms, power industry, and recording studios.
A switch is a device that connects several so-called microsegments in one network. It is equipped with ports, or connectors. Each port can be connected to one device. Switches can also be connected together to increase the number of possible connections and create LANs.
