Ubiquiti USW-LITE-8-POE | Switch | UniFi Gen2, 8x RJ45 1000Mb/s, 4x PoE+, 52W

Ubiquiti USW-LITE-8-POE | Switch | UniFi Gen2, 8x RJ45 1000Mb/s, 4x PoE+, 52W

CODE: USW-LITE-8-POE-EU / EAN: 810010071156
81,67 GBP without VAT 0%

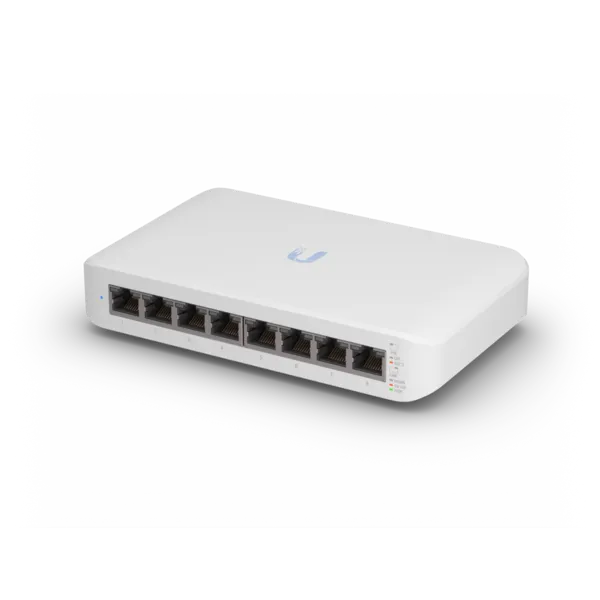

8-port manageable Gigabit switch

UbiQuiti USW LITE-8-POE is a fully managed layer 2 switch with eight Gigabit Ethernet ports for RJ5 Ethernet devices. The switch also offers automatic 802.3at PoE + detection, which provides a total PoE power of 52 W for UniFi access points or other PoE devices. Switch with PoE power and PoE Passthrough function is ideal for cleanly adding Ethernet ports when needed with an adapter to power the PoE device.


Non-blocking capacity

UbiQuiti USW-Lite-8-PoE switch is equipped with Gigabit Ethernet ports in a compact housing. The UnFi switch provides a total, non-blocking bandwidth up to 8 Gb/s


Switching capacity

The UniFi switch offers the ability to transmit traffic to all ports simultaneously at link speed without packet loss, with switching speeds up to 16 Gb/s.

Seamless integration

The installation of a cloud-based UniFi controller can be managed by multiple UnFi sites in one centralized interface. Each site is logically separated and has its own network monitoring, configurations, maps, statistics and administrator accounts.


  • 8 Gigabit RJ45 ports, including (4) 802.3at PoE ports +
  • Managed by the UniFi Controller (5.13.10 or higher)
  • External 60 W power supply.

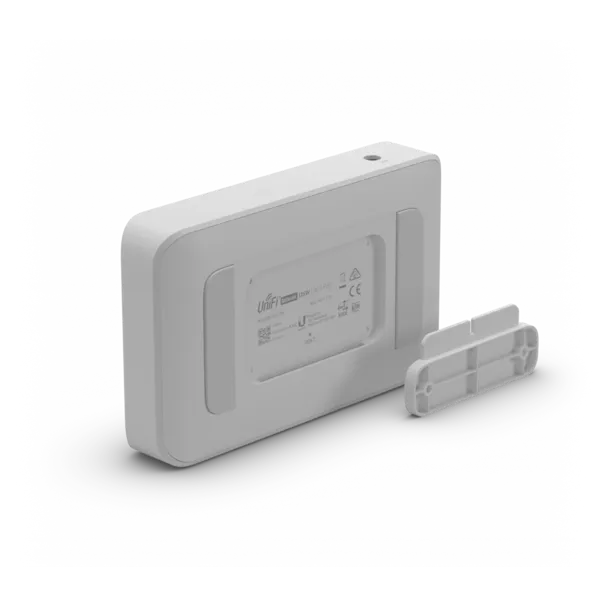

  • Mountable on the wall


Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 8x [10/100/1000M (RJ45)]
Number of PoE ports 4x [802.3af/at (1G)]
Management By web browser, Dedicated application,
Power (W) 50
Switching layer 2
Type of case Desktop

Technical data
Dimensions 99,6 x 163,7 x 31,7 mm
Weight 450 g
Max. Energy consumption 8W
Power supply method Power supply 54 VDC, 1.1 A.
Power supply External 54 V / 60 W power supply
Supported voltage range DC 50 V to 57 V
Network Interfaces 8 Ethernet ports RJ45 10/100/1000 Mb / s
PoE interfaces 4 PoE + IEEE 802.3af
Management interface Ethernet in the band
Max. PoE power 30W
Modes Gigabit Ethernet SMB Layer 2 PoE switch
Working temperature -15 to 40 ° C
Moisture 10 - 90% non-condensing
Certificates CE, FCC, IC


How many PoE ports does UBIQUITI USW-LITE-8-POE have?

The device has 4 PoE ports

What is the maximum load per PoE port?

The maximum load per PoE port is 15.4W
